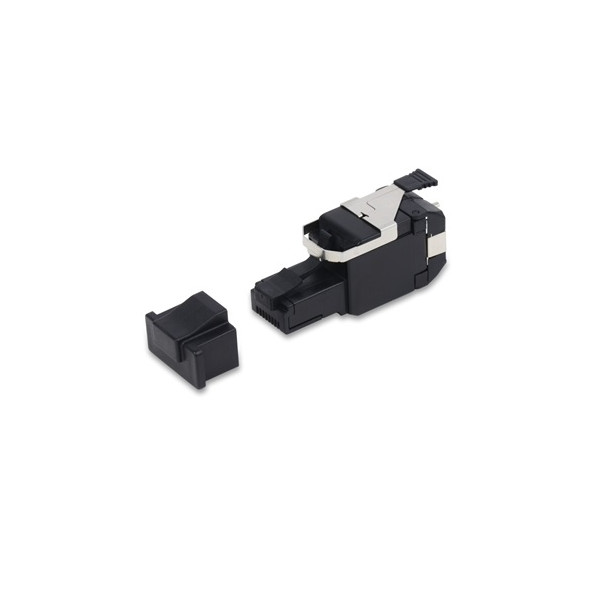

Belden RVAFPUBK-S1 REVConnect 10GX UTP Field Mount Plug Metal Click Thumbnails to EnlargeDESCRIPTION
• Belden RVAFPUBK-S1REVConnect 10GX UTP Plugs are available in single packs and 24 bulk packs.
APPLICATION
• 10GX System, TIA Category 6A, ISO Class EA, 10GBASE-T
PRODUCT SPECIFICATIONSPart NumberRVAFPUBK-S1Wiring SchemeT568A/BFront Connection-Material / TypeCopper Clad Flexible PCB, Gold plated contacts over Palladium/Nickel /RJ45Rear Connection-Material / TypeCopper Clad Flexible PCB, Gold plated contacts over Palladium/Nickel /REVConnectConnector BodyPolycarbonate - UL94V-0PackagingSingle PackFootprint/TypeKeyConnectTool CompatibilityRVUTT01 Termination ToolPlug /Jack CompatibilityRJ45Termination Front ConnectionMated ConnectionTermination Front Connection Durability750 cyclesTermination Rear ConnectionMated ConnectionTermination Rear Connection Durability200 cyclesCable/Connector Retention15 lbs.Connector/Hardware Retention20 lbsPlug/Connector Retention11.250 lbsDielectric Strength1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)Current Rating1.500 AInsulation Resistance500 M-Ohm MinimumMax Contact Resistance20 mOhmTermination Resistance2.5 mOhmInstallation Temperature Range-10°C To +60°CStorage Temperature Range-40°C To +70°COperating Temperature Range-10°C To +60°CEnvironmental SpaceIndoorWeight(lbs)0.035
