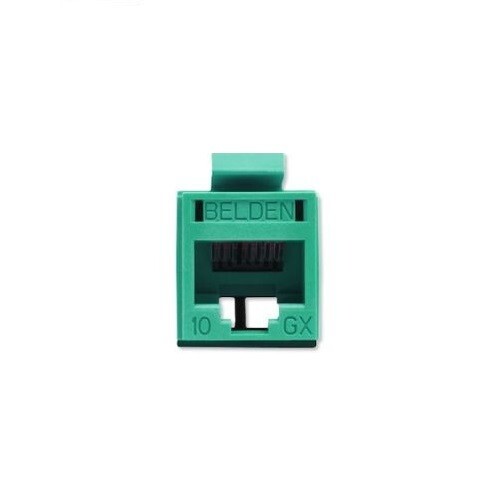

Belden RVAMJKUGN-S1 REVConnect 10GX UTP T568A/B Green Modular Jack Click Thumbnails to EnlargeDESCRIPTION
• Belden RVAMJKUGN-S1 REVConnect 10GX UTP T568A/B Green Modular Jack.
APPLICATIONS
• 10GX System, TIA Category 6A, ISO Class EA, 10GBASE-T.
CONNECTORS
• Front Connection: Copper Clad Flexible PCB, 50uin Gold plated contacts over Nickel -RJ45
• Rear Connection: Copper alloy, Gold plated contacts over Nickel -REVConnect
• Connector Body: PBT glass reinforced UL94V-0
ELECTRICAL CHARACTERISTICS
• Dielectric Strength:1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)
• Current Rating: 1.300 A
•Insulation Resistance:500 M-Ohm Minimum
•Max Contact Resistance:20 mOhm
•Termination Resistance:2.5 mOhm
TEMPERATURE RANGE
• Installation Temperature Range: -10°C to +60°C
• Storage Temperature Range: -40°C to +70°C
• Operating Temperature Range: -10°C to +60°C
MECHANICAL CHARACTERISTICS
• Footprint/Type:REVConnect
•Tool Compatibility:REVConnect Termination Tool (p/n RVUTT01)
•Plug /Jack Compatibility:RJ45, RJ11
•Termination Front Connection:Mated Connection
•Termination Front Connection Durability:750 cycles
•Termination Rear Connection:Mated Connection
•Termination Rear Connection Durability: 20 cycles
•Cable/Connector Retention:15 lbs.
•Connector/Hardware Retention:20 lbs
•Plug/Connector Retention:11.250 lbs
STANDARDS
• UL Rating:UL94V-0
• Telecommunications Standards:Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2
• Data Category:Category 6
• TIA/EIA Compliance:ANSI/TIA 1096-A (formerly FCC Part 68-F)
• IEEE Compliance:Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power overHDBaseTTM (up to 100W)
• Other Specification:UL 1863, IEC 60603-7, FCC part 68-F
APPLICABLE ENVIRONMENTAL AND OTHER PROGRAMS
• Environmental Space: Indoor
• EU Directive 2002/95/EC (RoHS): Yes
• MII Order #39 (China RoHS): EUP 50
PRODUCT SPECIFICATIONSPart Number RVAMJKUGN-S1Wiring Scheme: T568A/BHeight 0.94 inWidth 0.64 inDepth 1.337 inWeight (lbs) 0.016 lbs
