Item Description

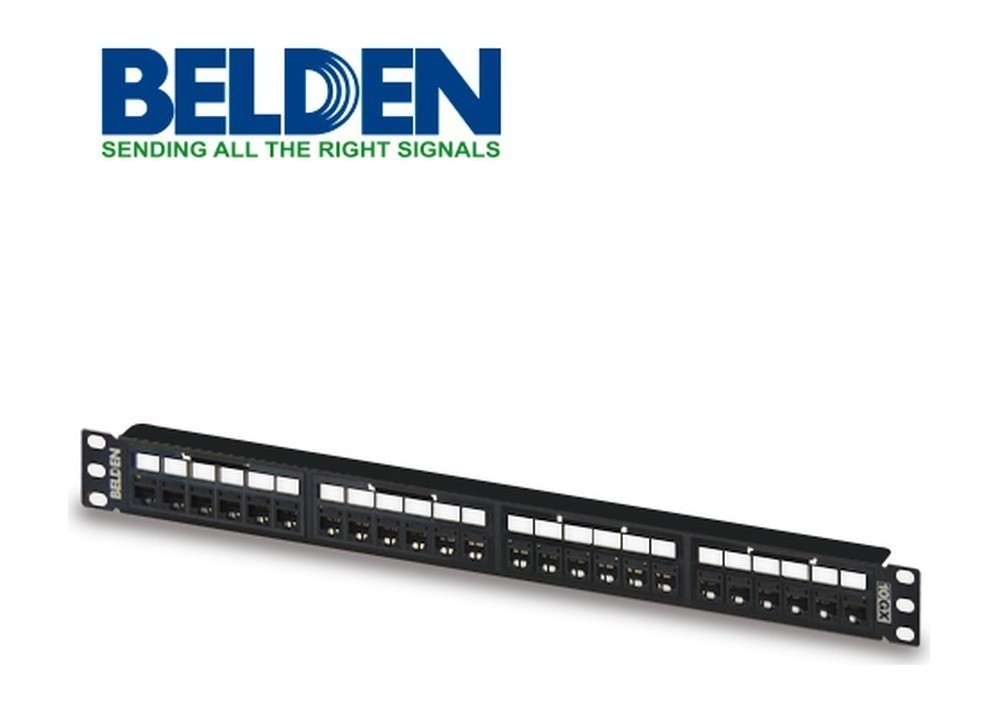

Up for sale are two New Open Box Belden 10GX REVConnect 24-Port 1U Preloaded Patch Panels, Black (Model / Part Number: RVAPPF1U24BK / UPC: 611589225052). Quantity available: 2.

Condition Note: Open box; panel in original foam packing with accessory bags. Unused. Photos show one of the two units; both are the same part number.

The Belden RVAPPF1U24BK is a 24-port, 1U, flat Category 6A (10GX) unshielded patch panel, supplied preloaded with 24 black 10GX REVConnect jacks. It uses Belden's REVConnect termination system, with removable six-port modules that can be terminated from the front or rear using the REVConnect termination tool. It is rated for 10GBASE-T and PoE applications up to 100 W.

Key Features:

• Preloaded: Fully assembled with 24 black 10GX REVConnect jacks.
• Category 6A / 10GX: TIA Category 6A and ISO Class EA, suitable for 10GBASE-T.
• REVConnect termination: Six-port modules terminate from the front or rear; works with the REVConnect termination tool (RVUTT01).
• PoE support: Rated for IEEE 802.3at Type 1 and 2, 802.3bt Type 3 and 4 (up to 100 W), Cisco UPOE and Power over HDBaseT.
• Cable management: Includes a rear cable management bar and Velcro straps.
• Labeling: Clear windows with ID labeling for port identification.

What’s Included:

• (1) Belden RVAPPF1U24BK 10GX REVConnect patch panel, 24-port, 1U, black, preloaded with (24) 10GX REVConnect jacks, black (RVAMJKUBK-S1)
• (25) REVConnect cable managers and term
• (4) Clear windows
• (1) Rear cable management bar
• (4) Screws, 10-32
• (4) Screws, 12-24
• (2) Velcro straps
• (4) Frames
• (1) Installation guide (PX106520)

Technical Specifications:

• Brand: Belden
• Model / MPN: RVAPPF1U24BK
• UPC: 611589225052
• Type: Patch panel, preloaded
• Number of Ports: 24
• Rack Units: 1U
• Data Category: Category 6A (10GX), ISO Class EA, unshielded (UTP)
• Connector: RJ45 jacks, 10GX REVConnect
• Color: Black
• Front Connection: Flush (flat)
• Dimensions (H x W x D): 1.73 x 19 x 2 in
• Weight: 1.845 lb
• Materials: Steel panel and management bar, PC/ABS frame, polycarbonate windows
• PoE Support: IEEE 802.3at Type 1 and 2 (30 W), 802.3bt Type 3 and 4 (100 W), Cisco UPOE (60 W), Power over HDBaseT (100 W)
• Termination Tool: REVConnect termination tool (RVUTT01)
• Wiring: T568B
• UL Rating: UL94 V-0, c(UL)us listed
• Operating Temperature: -10 to 60 C
• Storage Temperature: -40 to 70 C
• Environmental Space: Indoor

Shipping & Seller Terms:

• Condition Guarantee: New open box, unused, in original packaging.
• Shipping Options: Free standard shipping to all 50 US States. Buyer-paid expedited shipping options are available at checkout if you need it faster.
