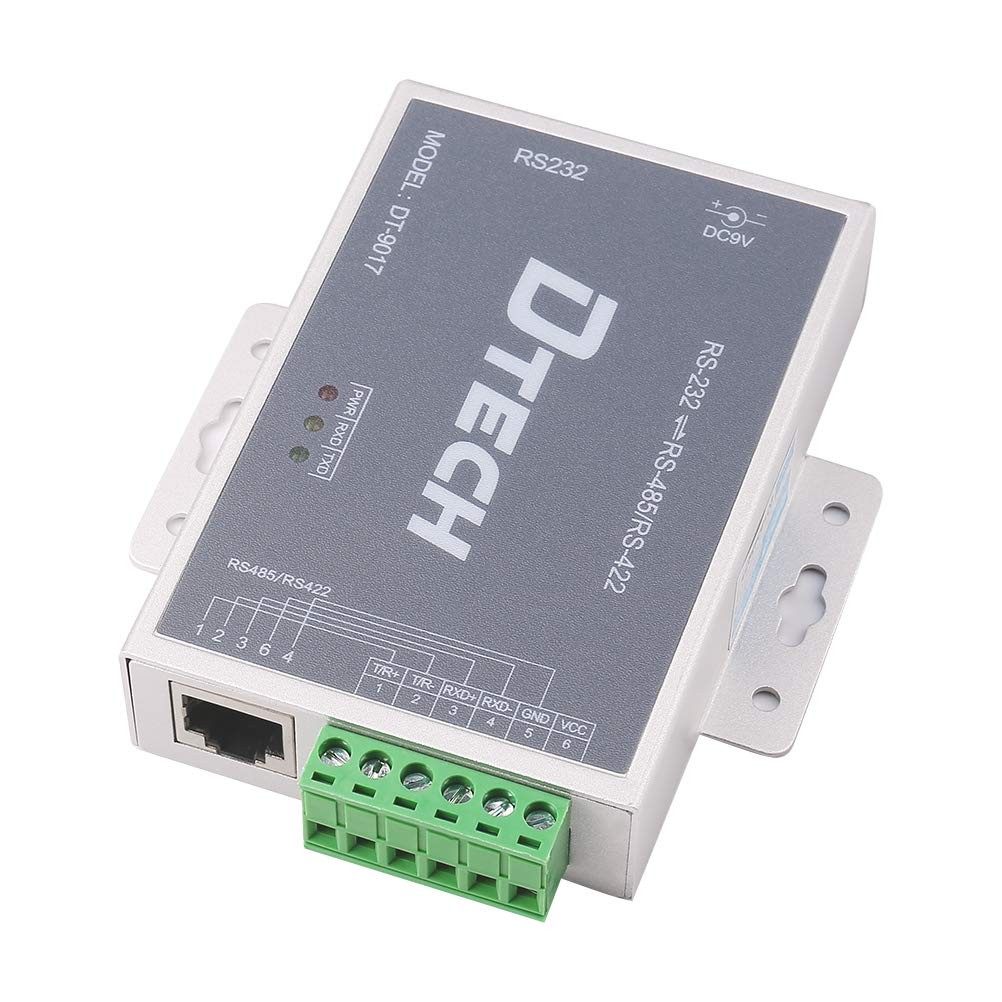

Bi-Directional Active RS232 to RS485 RS422 Serial Converter with Surge Protection 600W 15KV ESD DB9 to RJ45 Phoenix Contacts Adapter Power Supply TX RX LEDs for Long Haul Data Communication
Bi-Directional Active RS232 to RS485 RS422 Serial Converter with Surge Protection 600W 15KV ESD DB9 to RJ45 Phoenix Contacts Adapter Power Supply TX RX LEDs for Long Haul Data Communication
Description
Increases Networking Capability
Active surge protected RS485 to RS232 converter allows to interface your devices using an RS232 communication link to RS485 /422 link and vice-versa.
DCPC (Data Collision Protection Control) function detects the incoming or outgoing data and automatically switch into the send or receive mode, you don't have to worry about the data collision problems.
Plus, a great feature of the converter is that it provides multiple interfaces for multibus cabling: RS-232 interface is a standard DB9 female connector, and RS-485 / RS-422 side provides RJ45 port and plug-in terminal board, so the RS485 communications cable can connect to either an RJ45 network port a or terminal block . Built-in transient voltage suppressor (TVS) enables you to get double 600W lightning surge protection against the lightning strike over RS485 link, 15KV static protection over RS232 link effectively protect the value devices against high voltage. It is suitable for most industrial, commercial, office, lab and network application. It only requires three lines (RX, TX and GND) to get RS232 to RS485 conversion, great for troubleshooting the serial system, fully plug and play.
External 9V to 20VDC power supply can be used, and a 110/240V AC to 9V DC power supply adapter is included with the converter.
Specific
RS232 Link: D-sub 9 pin female port
RS485/RS422 Link: RJ45 female, 6 position phoenix contacts terminal block
EIA/TIA RS-232C, RS-485 specification
Signals: RS485, 2-wire, D+ and D- ; RS422, 4-wire, TX+, RX+, TX-, RX-
Asynchronous Half Duplex or Full Duplex Communication
Up to 32 nodes
Max: 4000ft over RS485 link, 50ft over RS232 link
Connected by twisted pair (>=24 AWG ) or shielded cable Package Content
1 x RS-232 to RS-485 RS-422 Converter
1 x Power adapter
1 x 9-pin RS232 male to female cable
1 x Manual
Features
- offerirectional RS232 to RS485 RS422 converter converts RS-232 signals to RS-485 or RS-422 signal, cable can be connected to either a terminal block or an RJ45 network port
- 600W lightning surge protected for RS485/RS422 link and 15KV static protection for RS232 link, protects your value devices against high voltage
- Powered serial adapter with TX, RX and power indicators enables you to easily know the status of sending or receiving data respectively (110/240V AC to 9V DC power supply included)
- Serial converter supports RS-485 2 wire half duplex and RS-422 4 wire full duplex communication, point to point and point to multi-point network (up to 32 drops protocol devices); no need of handshake signal, data transparent transmission
- RS 232 to 485 converter with built-in data collision protection control for reliable serial Data Communication; The baud rate will be detected and adjusted automatically, up to 115200 bps
