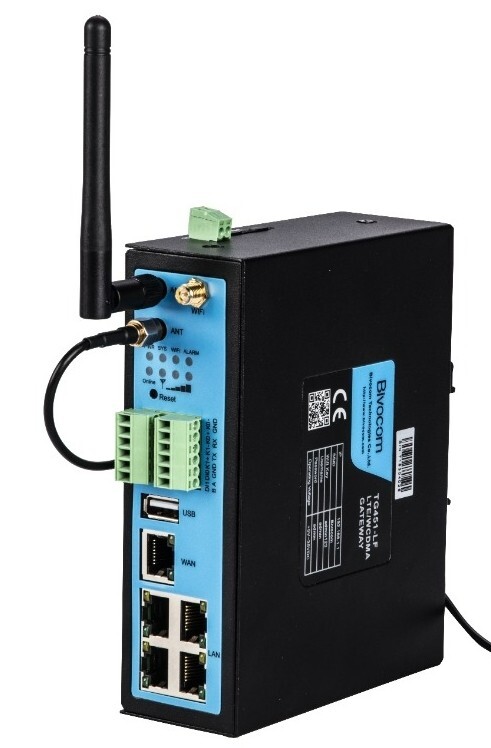

TG451: IoT Gateway
Programmable high speed industrial IoT gateway for serial, Ethernet, DI/DO, Bluetooth enabled sensors and controllers● LTE CAT 6 and CAT 4 compatible*
● Dual SIM for failover and Dual Module for load balance*
● Failover between WWAN and WAN*
● 1-RS232, 1-RS485, 5-RJ45, 1-USB, 2-DI, 2-DO, WIFI, SD*, GPS*
● DI status alarm with configurable SMS ● relay to turn on/off your field devices
● Python or LUA programming
KEY FEATURES
1. Global 4G LTE/3G/2G cellular network supported2. Dual SIM or dual module supports failover or load balance mode 1 , auto switchov er between wireless and wired WAN3. Rich interfaces: 4 LAN, 1 WAN, 1 USB, 2 DI, 2 Relay, 1 RS232, 1 RS485, WIFI(802.11b/g/n), GPS(Option)4. LTE/3G/ PPPoE DHCP and static address connection5. Captive portal for WIFI advertisement solution of transportation 26. APN/VPDN, and multiple VPN protocols, IPsec, L2TP, PPTP, GRE and OpenVPN, to ensure secure data transmission7. DHCP server, DHCP binding MAC address, DDNS, firewall, NAT, DMZ host, QoS, traffic a nalysis8. MQTT, Modbus RTU/TCP, TCP/UDP, HTTP, SNMP protocols9. SPI Firewall, Access Control, Port Mapping, DMZ Mapping, Access Control List (ACL), IP MAC binding and Clone function10. Web UI, telnet & SSH CLI, AT Command configuration11. Web upgrade, l oca l and remote syslog, serial port output log12. SMS commands and DMP(Device Management Platform) 3 for remote configuration and management13. OpenWrt based Linux OS, provides programmable environment via C/C++, Python, LUA, SDK
