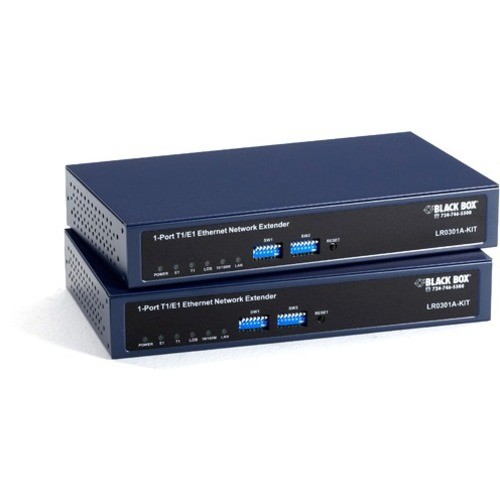

Line build-out (LBO) pair of extenders included with this kit act as a bridge, enabling you to link two Ethernet networks across T1/E1. Because you're using leased lines provided by your telco, there are no distance limitations -- you can extend your network anywhere you can get a T1 line.Ethernet Extender Kit 1 Port T1/E1. Extends 1 port 10/100Mbps Ethernet RJ45 over T1 or E1 interface. The kit includes 2 extenders for near-end (local) far-end (remote) deployment. Typical applications include Enterprise LAN extension, campus LAN expansion. This kit includes a pair of auto-rate Ethernet extenders, using a standard T1/E1 interface. Devices include internal 110-220VAC power supplies. The management interface is a console port. The pair of extenders included with this kit act as a bridge, enabling you to link two Ethernet networks across T1/E1. Because you're using leased lines provided by your telco, there are no distance limitations -- you can extend your network anywhere you can get a T1 line. The T1/E1 Ethernet Network Extender converts protocols and data from Fractional T1/E1 to 10BASE-T/100BASE-TX Ethernet and supports both framed and unframed modes with line codes.
General
CE Approval Yes
Humidity (2) 5-95%, noncondensing
Operating temperature 32 to 122? F (0 to 50? C);
Power 110/220 VAC, 50/60 Hz; Power consumption: 12 watts typical, 30 watts maximum
Item Specifications
Connectors E1: (2) BNC, T1/E1: (1) RJ-48; Ethernet: (2) RJ-45; RS-232 console port: DB9 F
Dimensions 1.7"H x 9.8"W x 5.9"D (4.3 x 25 x 15 cm)
Indicators LEDs: (1) Power, (1) E1, (1) T1, (1) LOS, (1) 10/100M, (1) LAN
Product Includes:
(2) Extenders
(2) Power cords
(2) CAT5 Ethernet cables
(2) T1/E1 RJ-48 to Y-connector cables
(1) CD containing the user manual
