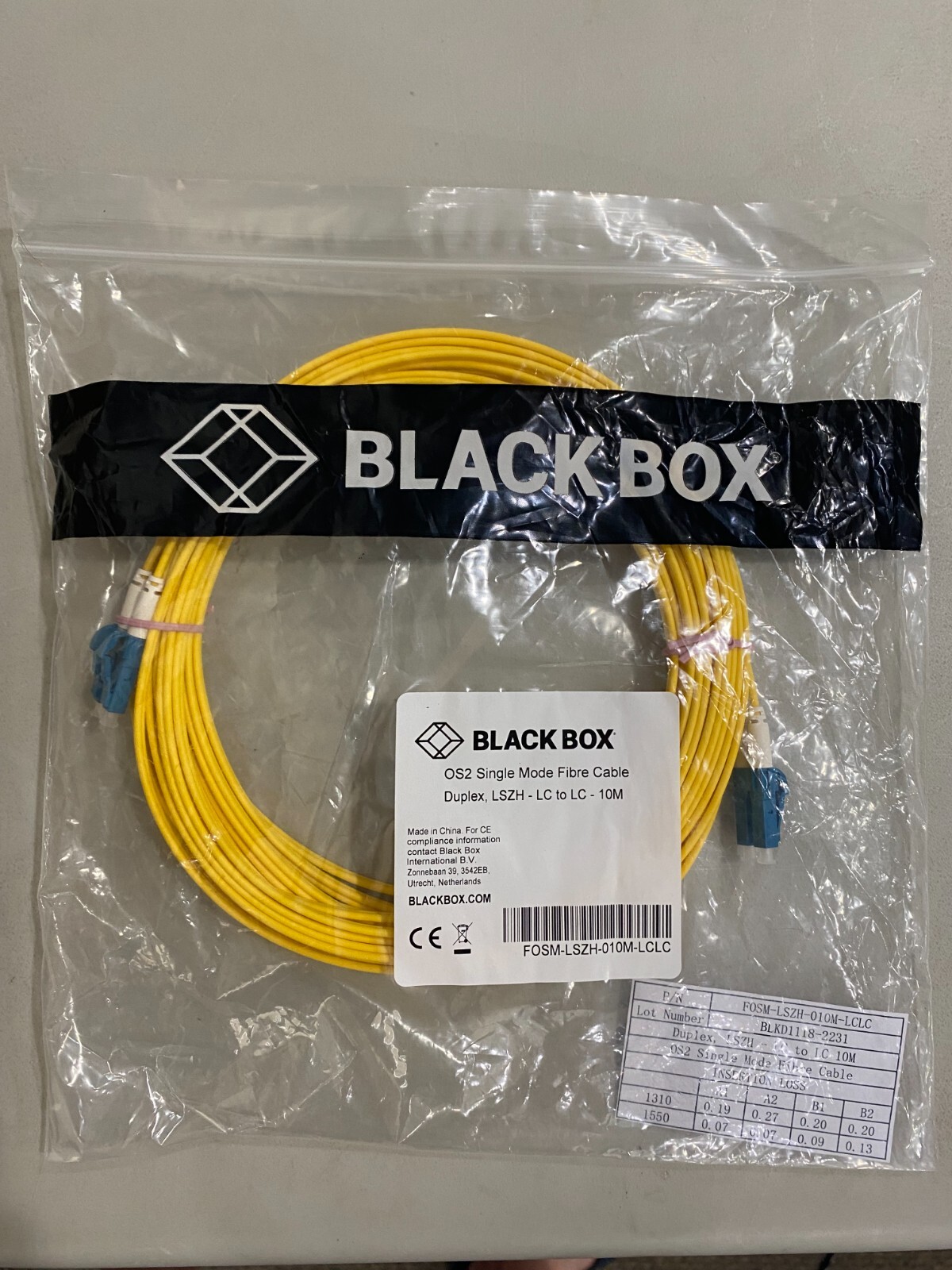

Item #:FOSM-LSZH-010M-LCLCOS2 9/125 Singlemode Fiber Optic Patch Cable - LSZH, LC to LC, Yellow, 10-m (32.8-ft.)PRODUCT FEATURES
- Duplex single-mode patch cables for high-bandwidth transmission.
- OS2 9/125 micron, 2.0-mm zipcord style cabling.
- Connector options are available in combinations of LC, SC, and ST.
- Low-smoke zero halogen (LSZH/LS0H) jacket encases 9-µm core.
- 100 percent testing to ensure optimal performance.
Black Box’s Connect line of general-purpose OS2 9/125 single-mode cabling is constructed to meet or exceed TIA/EIA industry standards, providing you the functionality you need without the premium price. With support for high-bandwidth Gigabit, 10 Gb, and more, you can connect all of your single-mode transceivers to switches, servers, and other high-performance networking equipment. Yellow in color, they are easy to distinguish from multimode cabling. These cables are constructed of 2.0-mm duplex zipcord style cabling. They also feature a low-smoke zero halogen jacket that protects against harmful chemicals in the event of a fire. Additionally, we perform 100 percent testing during production to ensure every one of our cables provides the utmost performance and protection in any application.
GeneralOperating Temperature-4°F to 158°F (-20°C to +70°C)Cable ConstructionZip-CordStorage Temperature-40°C to +80°C (-40°F to +176°F)Glass TypeOS2 9-MicronWavelength1310 µm, 1550 µmBend Radius30mm minimumDiameter2mmFiber TypeSinglemodeInsertion Loss (Maximum)lncrease after 500 matings: maximum 0.3dBJacketLSZH, YellowItem SpecificationsConnector A Type/Gender(1) LCConnector B Type/Gender(1) LC
