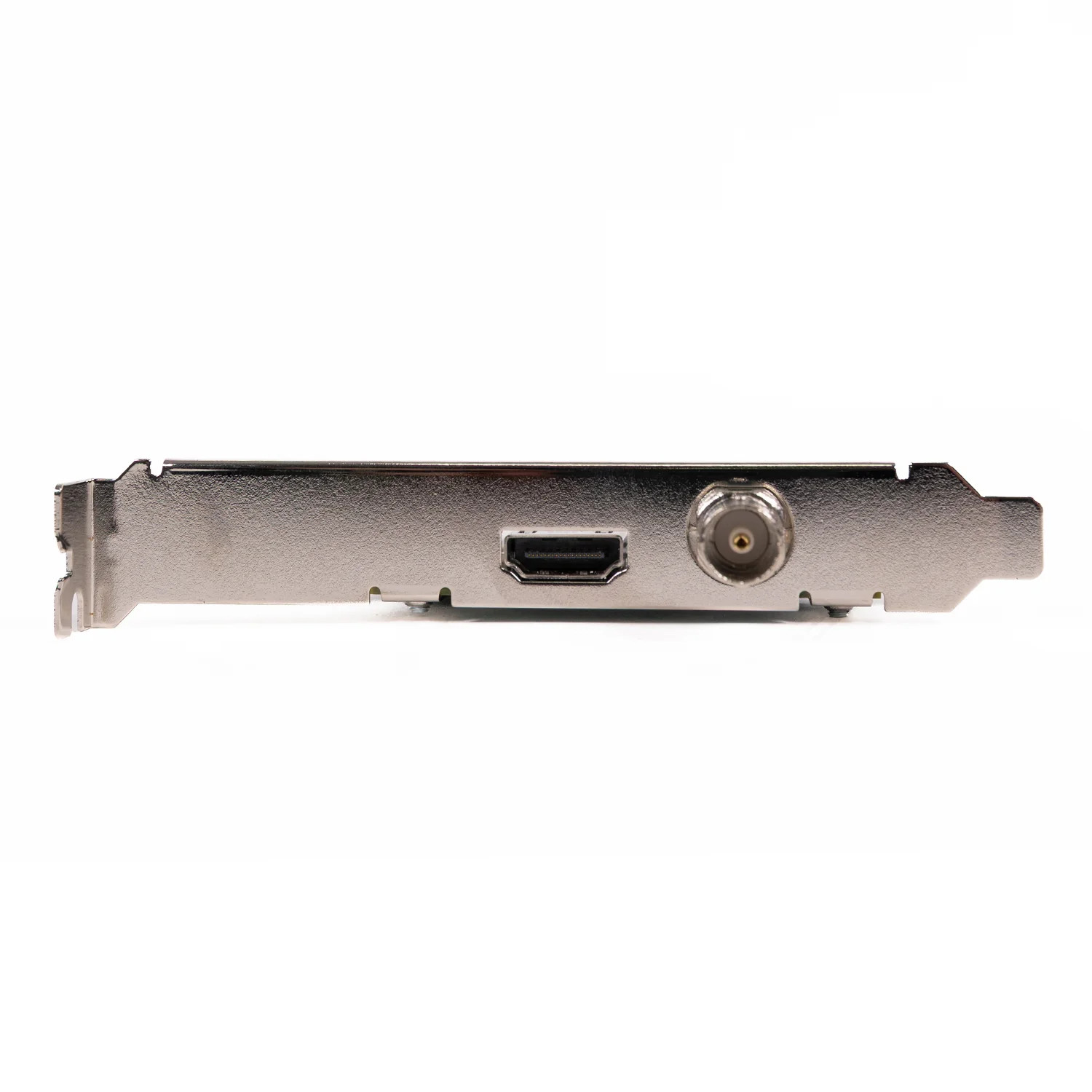

The Blackmagic Design DeckLink Mini Monitor HD is a low-profile PCIe playback card built for monitoring video output directly from a computer to broadcast displays. It provides simultaneous 3G-SDI and HDMI output, supporting formats up to 1080p60 and 2K DCI at 60p, with 10-bit YUV and 12-bit RGB 4:4:4 color handling for accurate playback monitoring. It supports Rec. 2020 color space for extended dynamic range work, and outputs to monitors, projectors, or media servers in edit bays, control rooms, and live production environments. The card installs in a Gen 2 PCIe x1 slot and ships with full-height and low-profile brackets, making it a practical monitoring add-on for both desktop workstations and rackmount edit systems.

• Video outputs:
• 3G-SDI and HDMI simultaneous output
• Max resolution:
• 1080p60 / 2K DCI 60p
• Color depth:
• 10-bit YUV, 12-bit RGB 4:4:4
• Color space:
• Up to Rec. 2020
• Interface: PCIe Gen 2 x1, low-profile card with dual brackets included

• (1x) Blackmagic Design DeckLink Mini Monitor HD
