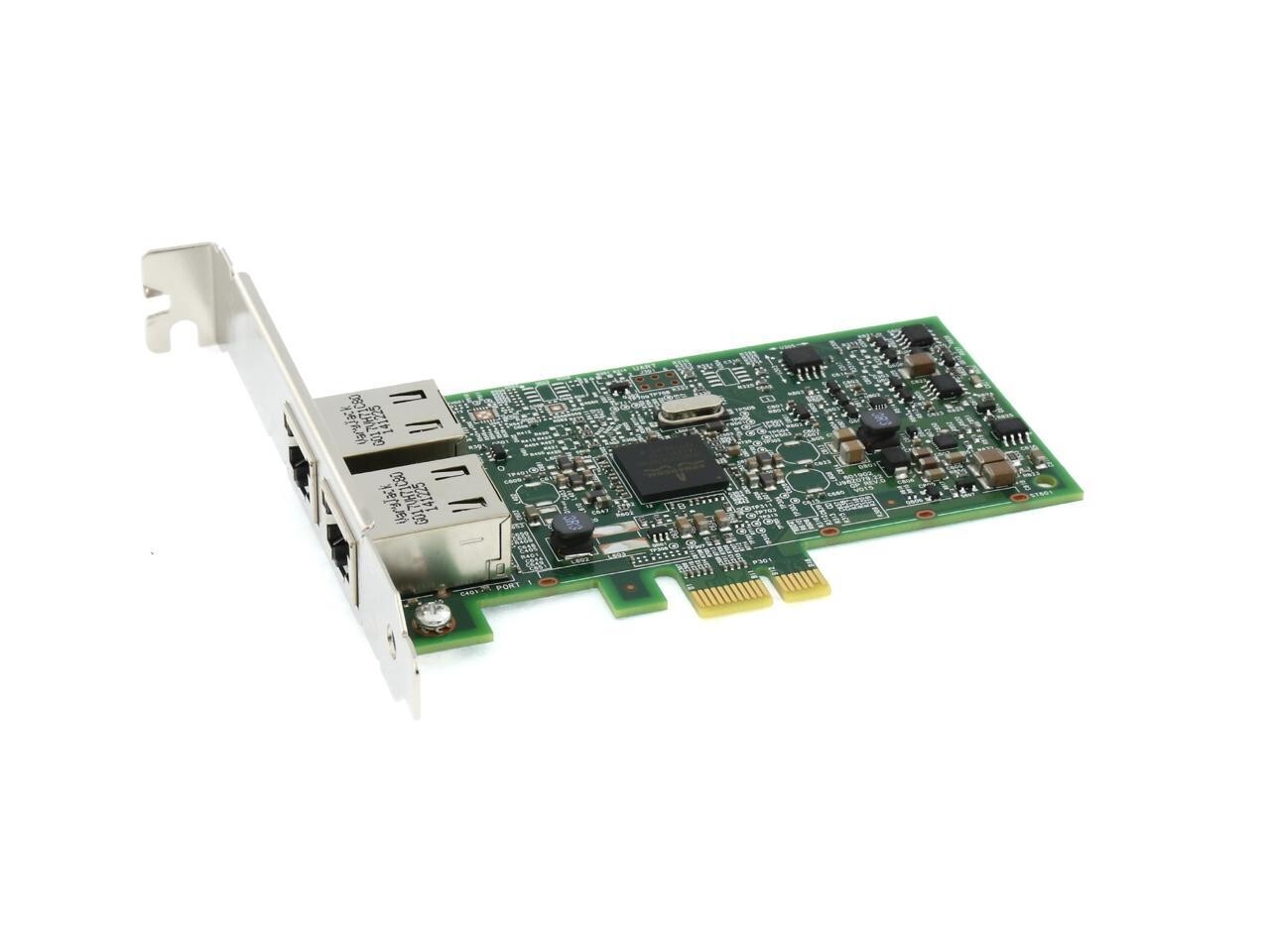

BROADCOM Bcm95720a2003ac Netxtreme BCM5720-2P Dual-port Pcie 2.0 Ethernet Network Adapter.
Overview The BROADCOM Netxtreme BCM5720-2P Is A Dual-port 10/100/1000 Mb/s X1 Pci Express (pcie) Ethernet Adapter That Supports The Ieee 802.3ab Standard Over Category 5 Twisted-pair Cable. The Adapter Card Supports Offload Technologies Including Large Send, Tcp Segmentation, And Tcp/udp/ip Checksum, And Receive-side Scaling (rss) That Deliver Optimal Network Throughput, Lower Host Processor Utilization And, As A Result, Improve System Overall Performance. The Adapter Card Comes In A Small Form Factor That Is Suitable For Both Low-profile And Standard Chassis.
Features
Dual-port Gigabit Ethernet (gbe) AdapterIeee 802.3ab 10/100/1000 Mb/s Gigabit Ethernet-compliantVirtual Lans (vlans): Ieee 802.1q Vlan TaggingX1 Pci Express V1.x And V2.xEnergy Efficient Ethernet-compliant With Ieee Standard 802.3az-2010Msi And Msi-x Capabilities—up To 17 Msi-x VectorsI/o Virtualization Support For Vmware, Netqueue, And Microsoft Vmq– 17 Receive Queues And 16 Transmit Queues Per Port– 17 Msi-x Vectors Supporting Per Queue Interrupt To HostFunction Level Reset (flr)Ecc Error Detection And Correction On Internal SramTcp, Ip, And Udp Checksum OffloadLarge Send Offload, Tcp Segmentation OffloadReceive-side ScalingJumbo Frames (9 Kb)Ieee 802.3x Flow ControlStatistics For Snmp Mib Ii And Ethernet-like MibComprehensive Diagnostic And Configuration Software SuiteAcpi 1.1a-compliant: Multiple Power ModesWake-on-lan (wol)Dual Rj-45 With Integrated Link And Activity LedsLow-profile Form Factor: 2.7 In. X 4.4 In.Rohs-compliant (lead-free)
