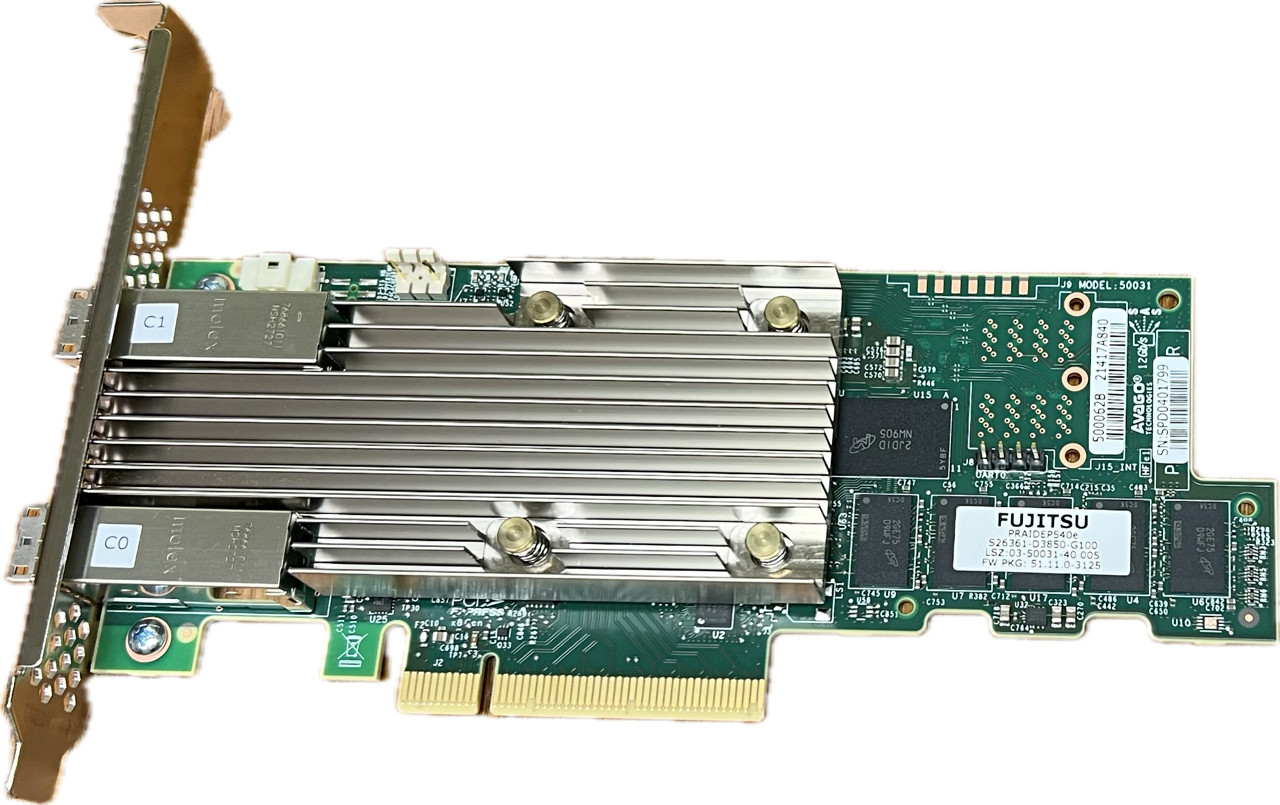

Broadcom MegaRAID 9480-8e / Fujitsu PRAID EP540e 8-Port 12Gb/s SAS/SATA/NVMe Tri-Mode External RAID Controller w/ 4GB Onboard Cache (Better Than 9380-8e)
---- Brand New Bulk Package---- Both full height and low profile brackets are included.
Note: Fujitsu PRAID EP540e is an OEM version of Broadcom/LSI MegaRAID 9480-8e. It uses the same Broadcom/LSI firmware and functions exactly the same as Broadcom/LSI RAID Controllers. We tested it in Supermicro, Dell, and HP machines. Basically, it is compatible with any modern PC with an available PCIe x8 slot. 9480-8e shares the same PCB with 9480-8i8e. But 9480-8e has only 8 external ports while 9480-8i8e has 8 internal ports and 8 external ports.
Controller Silicon RoC (RAID on Chip) LSI SAS3516
12 Gbit/s Connector type SSF-8644 Number of Connectors 8 Key RAID Data Protection Feature - RAID levels 0, 1, 5 and 6
- RAID spans 10, 50 and 60
- Online Capacity Expansion (OCE)
- Online RAID level Migration (RLM)
- Auto resume after loss of system power during array rebuild or reconstruction (RLM)
- Single controller multipathing (failover)
- Load Balancing
- Configurable stripe size up to 1MB
- Fast initialisation for quick array setup
- Check consistency for background data integrity
- SSD support with SSD Guard™ technology
- Patrol read for media scanning and repairing
- Up to 64 logical drive support
- DDF-compliant configuration on disk (COD)
- S.M.A.R.T support
- Global and dedicated Hot Spare with Revertible Hot Spare support
- Automatic rebuild
- Enclosure affinity
- Enclosure management
- SES (inband)
- SGPIO (outband)
- Shielded state drive diagnostic technology RAID Management ServerView RAID Manager
StoreCLI (command-line interface)
UEFI HII Service Weblink https://www.fujitsu.com/emeia/support/
