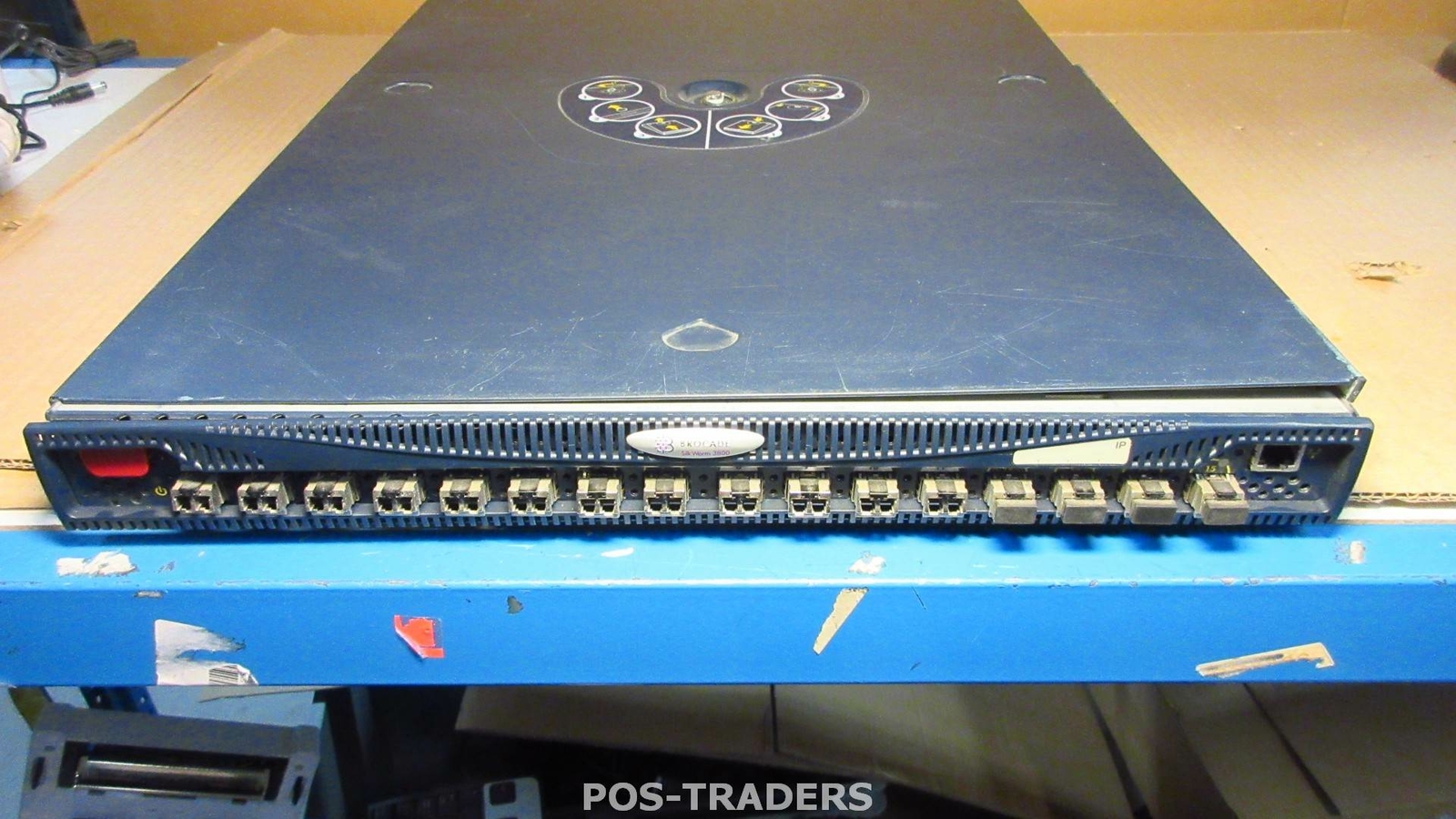

Brocade SilkWorm 3800 16-Port 2Gb/s SAN Fibre Channel FC Switch SK-3802-0000
Dear customer,
When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.
FRONT & TOP COVER LOOSE!
EXCLUDING NETWORK CABLES
Price is for 1 item
See photos for actual item
Brocade 3800 Specifications:
Systems Architecture
Fibre Channel ports: 16 universal ports
Scalability: Full fabric architecture with 239 switchesmaximum, Certified maximum 32 switches, 7 hops; larger fabrics certified asrequired
Interoperability: SilkWorm II, SilkWorm Express, or any SilkWorm2000 family switch
Performance: 2.125 Gbit/sec line speed, full duplex
Aggregate bandwidth: 64 Gbit/sec end-to-end
Fabric latency: <2 μ sec. with no contention,cut-through routing
Maximum frame size: 2112-byte payload
Classes of service: Class 2, Class 3, Class F(inter-switch frames)
Port types: FL_Port, F_Port, and E_Port; self-discoverybased on switch type (U_Port)
Data traffic types: Fabric switches support unicast,multicast (256 groups), and broadcast
Media types: Hot-pluggable, industry-standard SmallForm-Factor Pluggable (SFP), LC connector; Short-Wavelength Laser (SWL);Long-Wavelength Laser (LWL);Extended Long-Wavelength Laser (ELWL); distance depends on fiber optic cable and port speed) LaserShort-wave up to 500 m (1,640 ft); long-wave up to 10 km (6.2 mi)
Fabric services: Simple Name Server, Registered StateChange Notification (RSCN), Alias Server (multicast); and Brocade AdvancedZoning
Management
Supported software: Telnet, SNMP, WEB TOOLS
Management access: 10/100 Ethernet (RJ-45), serial port
Diagnostics: POST and embedded online/offline diagnostics
Mechanical Specifications
Enclosure: Back-to-front airflow, power from rear 1U,19-in.–EIA compliant
Depth: 62.23 cm (24.50 in)
Height: 4.34 cm (1.71 in.)
Width: 42.86 cm (16.87 in.)
Dual power supply weight: 12.94 kg (28.5 lbs)
Environment
Temperature Operating: 10° C to 40° C (50° F to 104° F)
Nonoperating: -25° C to 70° C (-13° F to 158° F)
Humidity Operating: 20% to 85% noncondensing at 40° C(104° F)
Altitude: Up to 3,000 m (9,800 ft)
Shock Operating: 80 g's, 2.5 ms duration, half-sine
Vibration Operating: 0.5 g sine, 0.4 grms random, 5-500Hz
Non-operating: 2.0 g‘s sine, 1.1 grms random, 5-500 Hz
Power
AC Input Nominal: 100 to 240 VAC, 2.5 A
Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise.
