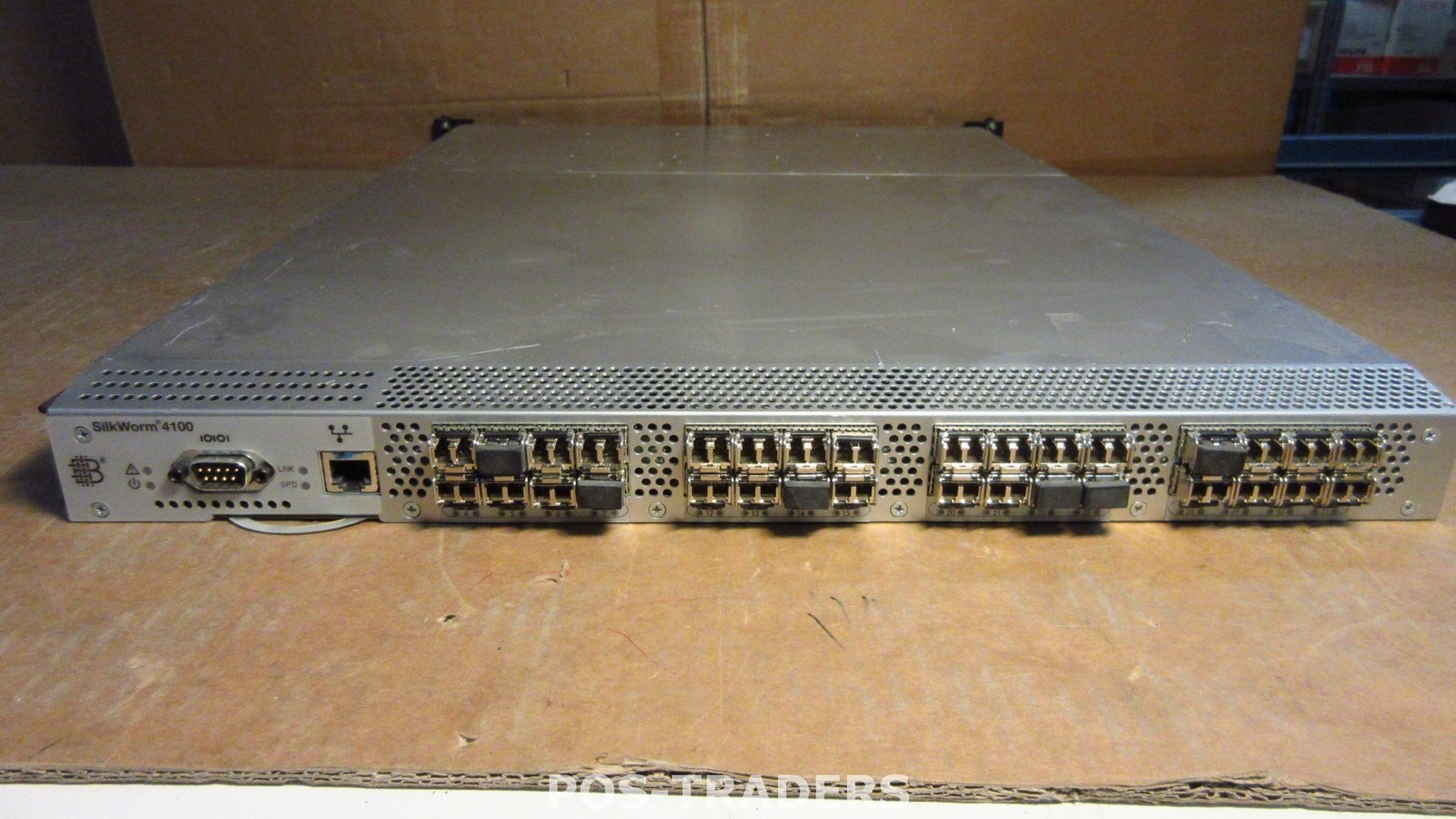

Brocade Silkworm 4100 32 Port Fibre Channel Switch BR-4120-0001 - INCL 32X SFP's Dear customer, When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding INCLUDING 32X SFP'S See photos for actual item! Price is for 1 item. Fibre Channel ports 32 ports, universal (E, F, and FL)
Scalability Full fabric architecture with 239 switches maximum
Certified maximum Combination of 56 switches, 19 hops; larger fabrics
certified as required; consult Brocade or OEM SAN
design documents for configuration details
Performance 1.063 Gbit/sec line speed (full duplex); 2.125
Gbit/sec line speed (full duplex); 4.25 Gbit/sec
line speed (full duplex); auto-sensing of 1 Gbit/sec,
2 Gbit/sec, and 4 Gbit/sec port speeds; optionally
programmable to fixed port speed; speed matching
between 1, 2, and 4 Gbit/sec ports
ISL Trunking Up to eight 4.25 Gbit/sec ports per ISL trunk; up to
32 Gbit/sec per ISL trunk
Aggregate bandwidth 256 Gbit/sec end to end
Fabric latency
at 4 Gbit/sec
Maximum frame size 2112-byte payload
Classes of service Class 2, Class 3, Class F (inter-switch frames)
Port types FL_Port, F_Port, and E_Port; self-discovery based
on switch type (U_Port)
Data traffic types Fabric switches supporting unicast and broadcast
Media types Hot-pluggable, industry-standard Small Form-factor
Pluggable (SFP), LC connector; Short-Wavelength
Laser (SWL) up to 500 meters (1640 feet); Long-
Wavelength Laser (LWL) up to 10 km (6.2 mi);
Extended Long-Wavelength Laser (ELWL) up to
80 km (49.6 mi); distance depends on fiber-optic
cable and port speed, CWDM SFPs (8 lambdas)
Fabric services Simple Name Server; Registered State Change
Notification (RSCN).
Optional fabric services include: Brocade Advanced
Zoning; Brocade Fabric Watch; Brocade Extended
Fabrics; Brocade Remote Switch; Brocade ISL
Trunking; Brocade Advanced Performance Monitoring;
Brocade Web Tools; FICON Control Unit Port (CUP)
Options SFP media Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise.  |
|
