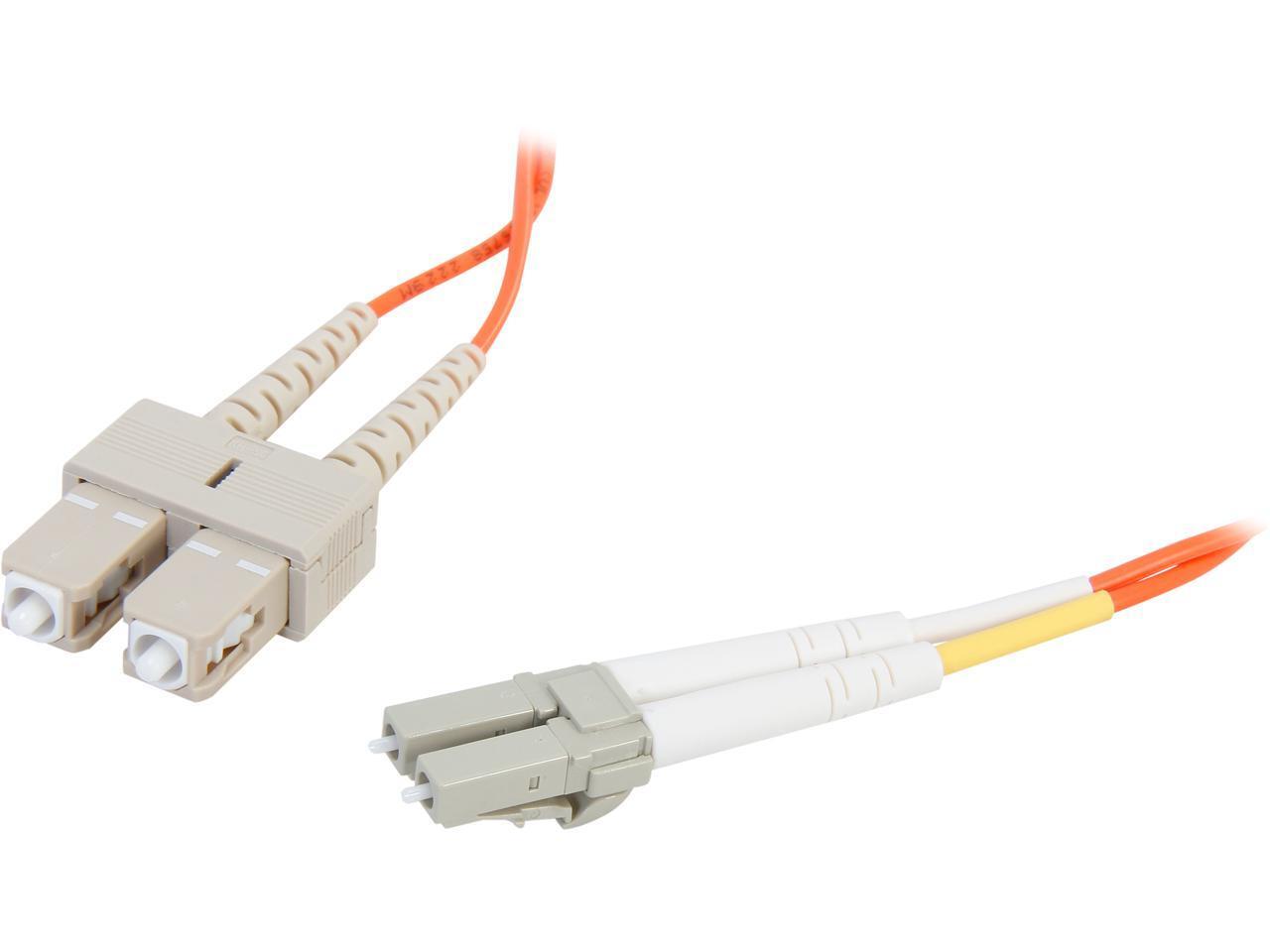

C2G 33155 6.56 ft. LC/SC Duplex 62.5/125 Multimode Fiber Patch Cable - Orange LC SC DUPLEX 62/125 MULTIMODE FIBER.

Learn more about Cables To Go ConnectorsColorOrangeDetailsLength6.56 ft.Connector Number4Connector Detail2 x LC to 2 x SCTerminal GenderMale to MaleSpecificationsOptical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm.LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip)SC Connector Dimensions: 10.6mm Height x 26mm Width x 58mm Depth (with installed duplex clip)Maximum Connector Loss: 0.50 dBTypical Connector Loss: 0.30 dBTypical Return Loss: -25 dBBuffer Material: PVCBuffer OD: 900 µmJacket Material: PVC (OFNR riser-rated)Jacket OD: 1.8 mmInstallation Tensile Load: 100 N (445 lbs)Long-Term Tensile Load: 50 N (222 lbs)Maximum Tensile Load: 100 N/cmInstallation (Loaded) Minimum Bend Radius: 5.0cm (1.97in)Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in)Crush Resistance: 750 N/cmImpact Resistance: 1,000 cyclesFlex Resistance: 5,000 cyclesAttenuation at 1300 nm: 1.0 dB/kmAttenuation at 850 nm: 3.5 dB/kmOperating Temperature: -20°C to +70°CFeaturesFeaturesWith LC to SC termination, this high-quality fiber optic patch cable is specifically designed for fast Ethernet, fiber channel, ATM and gigabit Ethernet applications.The small LC connectors satisfy the need for higher port density both in the telecom room and the work area, and offer twice the port density of traditional SC and ST fiber connectors.The LC connector with its RJ-style latch clip design is easy to engage and disengage, and gives each connection with greater durability in resisting pulls, strains, snags, and impacts during cabling installs and maintenance.The SC connector features a push-pull locking system.The exclusive injection molding process provides each connection with greater durability in resisting pulls, strains and impacts from cabling installs.Each cable is 100% optically inspected and tested for insertion loss before you receive it.A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, immune to electrical interference.GroupLength0.5 ft.ShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy.Frooition www.frooition.com | No-js Template | design, store design, shop design, template design, listing design (ver:froo_no_js)This listing is currently undergoing maintenance, we apologise for any inconvenience caused.
