Features: Real-Time Telemetry Output: CAN bus communication sends battery voltage and current data into a compatible control setup, helping UAV builders review live power data during integration work.
Wide Electrical Coverage: Supports 0-85V voltage tracking with 150A continuous current sensing, giving this board a practical fit for demanding battery telemetry needs in UAV projects.
Accurate Low-Loss Measurement Design: ±0.1% voltage accuracy, ±2% current accuracy, and a 200 μΩ shunt design help deliver dependable readings while keeping sensing loss low.

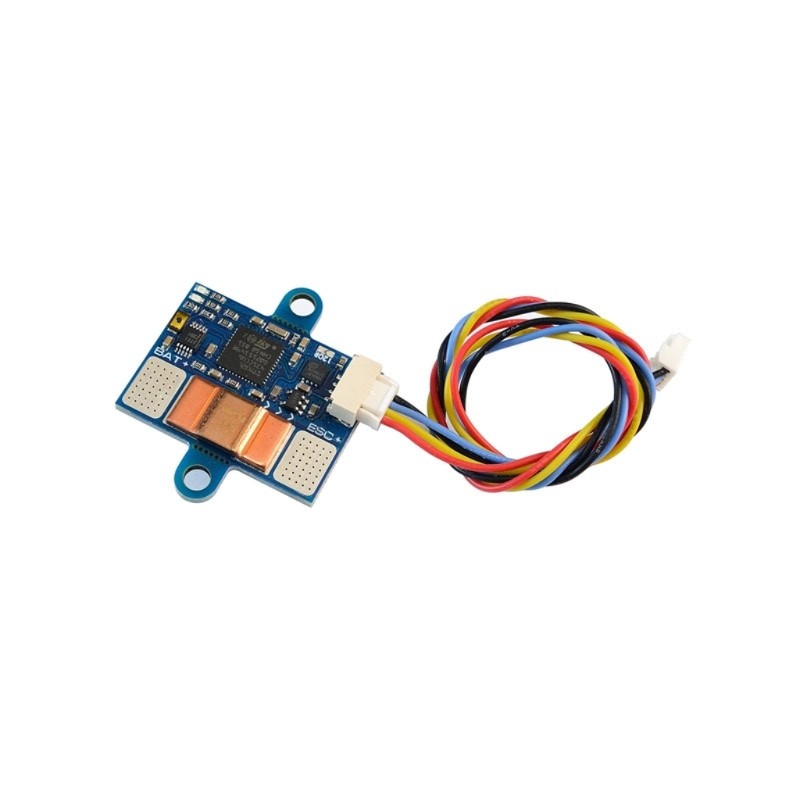

Board And Harness Ready Layout: The compact monitor board includes an attached harness with onboard CAN, UART, and programming interfaces, making routing and service access easier.
Built For UAV Power Use: Use this single monitor module when you need battery telemetry, high-current sensing, and orderly board integration for UAV builds, maintenance, or upgrade work.Specifications: Component: Polymer
Voltage Detection Input: 0-85V
Current Detection: 0-204.8A
Load Current on Shunt Resistor: 150A (Continuous), 204.8A (Burst)
Voltage Accuracy: ±0.1%
Current Accuracy: ±2%
Application: Suitable for heavy-lift large FPV mapping agricultural multirotor and homebuilt high-power model aircraft power checking.Package Includes: 1piece Digital Power Monitornote: 1.Please allow 1-2cm errors due to manual measurement, make sure that you donot mind before you order.
2.Due to the differences between different monitors, the picture may not reflect the actual color of the item.
