Premiertek 1000Ft Cat6A 23AWG CMP Plenum Bare Pure Copper Shielded F/UTP Solid 4-pairs Premium Network LAN Cable
Bandwidth 650MHz Fluke Pass
Color: Blue
Part#:FCMP6A-BL
Product Overview:
Premiertek Twisted Pair F/UTP Cat6a shielded cables are used where protection from high noise environments are necessary, while efficiently maximizing data speeds up to 10Gbps. This makes these type of cables ideal for use in manufacturing facilities, hospitals, banks and other areas where performance and maximization of data is needed.
Cat6a cabling is designed for 10-Gigabit applications. Cat6a cables are able to reach distances up to 100 meters or 328 feet, while significantly improving on alien crosstalk.
Premiertek solid wire bulk cables are typically used for horizontal and backbone cable runs. Solid wire cables feature a single strand (metal wire) that's typically used for long distance runs when compared to stranded cables. These Cat6a bulk cables feature a CMP rated PVC jacket with 650MHz bandwidth, pure bare copper wires, and exceed ANSI/TIA-568-C.2 standards. Therefore, installer can certify the job guaranteed.
Product Features:
- CAT6A
- Color: Blue
- Fully test pass Fluke 650MHz @100 meters (328ft).Supports up to 750MHz.
- CMP Plenum Rated
- 100% Pure Copper, Oxygen-free for best performance
- Overall aluminum foil shielded providing good protection from EMI noise
- Cat6A Certified Transfer Rate: 10/100/1000/10000mbps
- Supports 10GBASE-T
- ANSI/TIA/EIA-568-C.2 Standard
- Jacket type: CMP Rated
- Jacket Diameter: 7.45 +/- 0.15mm
- 1000-foot shielded Ethernet cable
- Four pairs
- Filler: PE cross
- Drain wire: Yes
- Rip cord: Yes
- F/UTP Foil Shielded Twisted Pairs: Aluminum Mylar
- Cat6A Conductor Solid 23AWG/ 0.58mm
- Lead-free

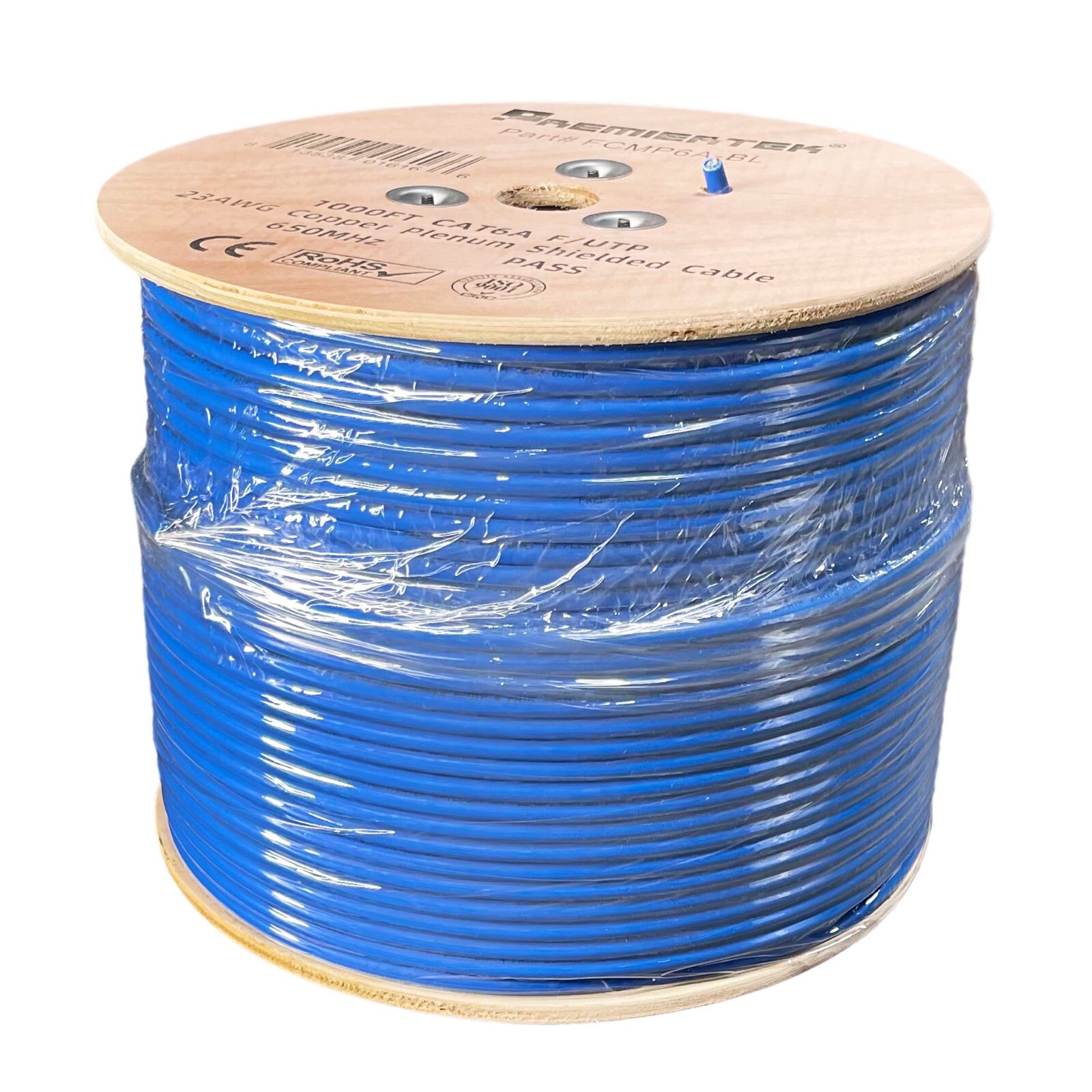

- Supply in wooden reel spool
Applications:
- Gigabit Ethernet
- 100 Mbps TPDDI
- 155 Mbps ATM
- IEEE 802.3
- IEEE 802.5
- IEEE style="font-size: large;">
