NOTE: This 2.0MP AHD camera must work with AHD-H 1080 DVR!
(Note: Choose System PAL or NTSC)
Main Features:

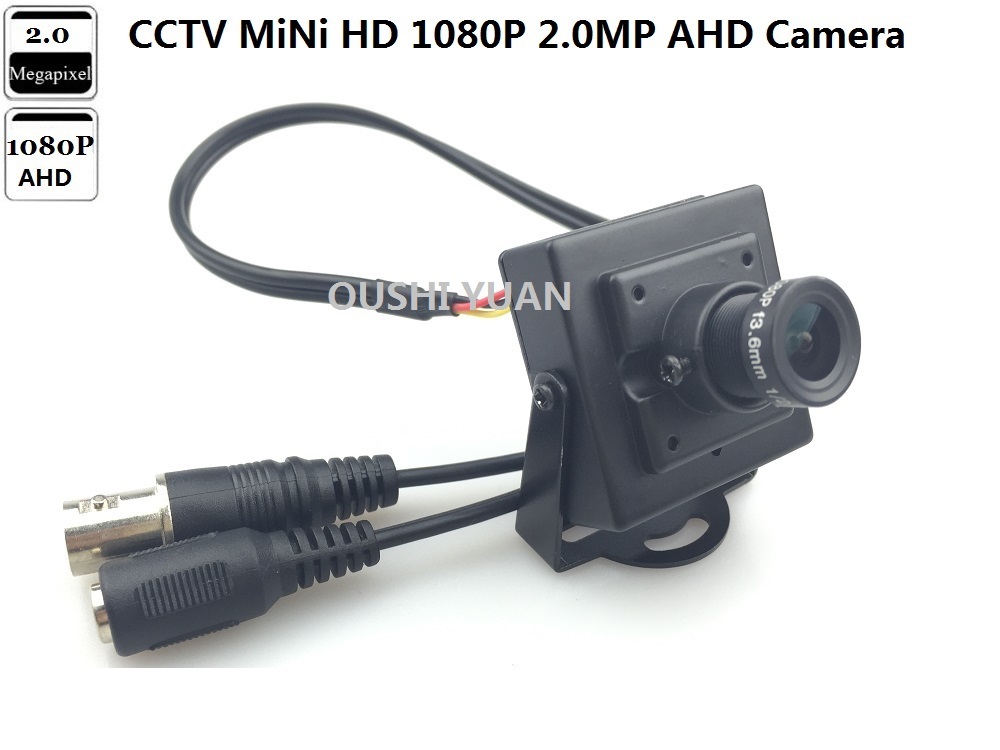

1080P HD-AHD MINI camera
1/3" 2.0MP
Standard match 3.6mmlens
Low cost,far transmission distance(500Meters)
Advantage of AHD camera:
1. High resolution: Advanced signal filtering, 3D noise reduction, higher image resolution, better image reproduction.
2. Long range transmission distance: max. 500 meters over traditional 75-3 coaxial cable.
3. No video latency: Uncompressed video, real time transmitting
6. Low cost: Same price like traditional analog camera, but high definition image quality.
Specifications:
Sensor
1/3"CMOS Sensor
DSP
FH8536
Active Pixel
1280*1080
SYNC.
Internal
Resolution
2.0MP/1080P
VIDEO.OUT
AHD
Minimum Illumination
0.01Lux(F1.2),
Gama adjust
0.45
Lens Mode
Board Lens 3.6mm
IR Distance
NO
Electric Shutter
1/50s-1/50000s
1/60s-1/50000s
S/N Ratio
50dB(min)(AGC closed)
3D-NR
OFF/LOW/MID/HIGH
2D-NR
OFF/LOW/MID/HIGH
WHITE Balance
AUTO
AGC
Level 0-15
BLC
BLC/HLC/OFF
D-WDR
NO
Sens-UP
X2-X30
Mirror
OFF/Mirror/V-Flip/Rotate
OSD
NO
Language
11 kinds(Traditional Simplified English Spanish Portuguese Russian German French TUR NEL ITA)
Motion Detection
NO
Day/Night
NO
Privacy Zone
NO
Defog
AUTO
Power Input
DC12V±1V
Power Dissipation
70mA
Operation Temperature
Temperature -10C to +60C,Humidity less than 85%RH
Dimension
35*35*10(mm)
Package:
1*CCTV 1080P 2.0MP Lens 3.6MM MINI AHD Camera
