Feature:

• SDI 1080P full real time transmission camera
• DWDR, HLC
• Electronic shutter adjustable, 3DNR, anti-flick, Defog
• OSD menu, Lightning-proof, IP66, Auto ICR
• DC12V(Standard)

Model

OSY-SDI 235

Sensor

1/3" Panasonic CMOS

Video uncompressed format

SDI digital signal

Total pixels

2010(H) × 1180(V)

Effective pixels

1920(H) × 1080 (V)

Real-time resolution

1080P(30fps)

Min. illumination

0 lux

IR distance

3-10M

Sync system

Internal

S/N ratio

≥50db(AGC OFF)

Video output

1.0Vp-p Composite Video Output, 75 Ohm

Lens type

3.6mm/6mmICR lens(optional)

Electronic shutter

White balance

NR( noise reduction)

2D/3D/ smart noise reduction

Digital effect

Freeze, Neg. image

DWDR

High/Middle/Low

BLC

BLC/HLC/OFF

Lens shading compensation

ON/OFF

AGC

ON/OFF

Day & Night

Auto ICR/B/W/Color/EXT

Privacy zones

ON/OFF(8areas)

Motion detection

ON/OFF(3 areas)

DPC

Yes

Mirror function

Defog function

High/Middle/Low

Digital output

SDI signal

Transmission rate

HD-SDI output

SDI transmission range

150 meters, use standard coaxial cable (RG59) with BNC interface

OSD menu

English,Chinese

Operating Environment

-20°C ~ 55°C

Protection grade

IP66

Power Supply

DC12V±10%

Power consumption

1000mA/DC12V

Item Included:

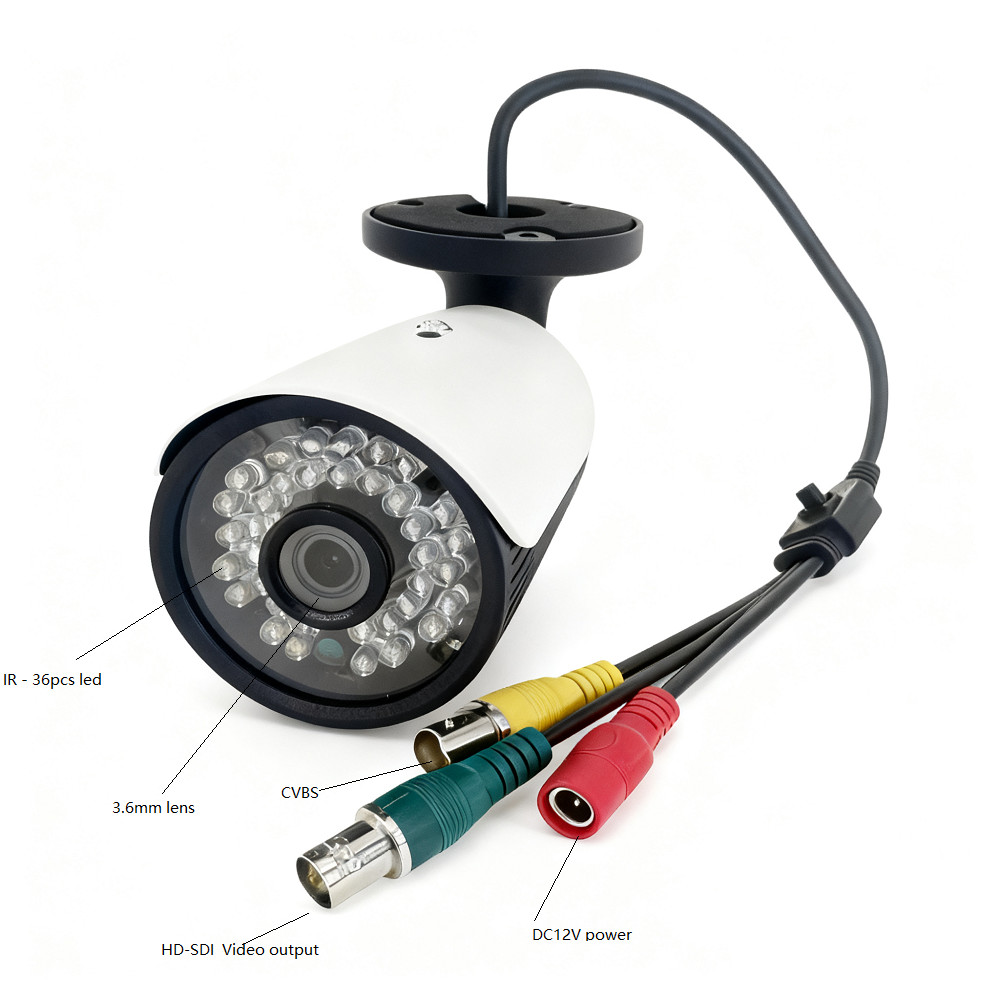

• 1x CCTV 1/3 Panasonic CMOS HD-SDI Outdoor SDI IR Camera(The default 3.6 MM lens)
