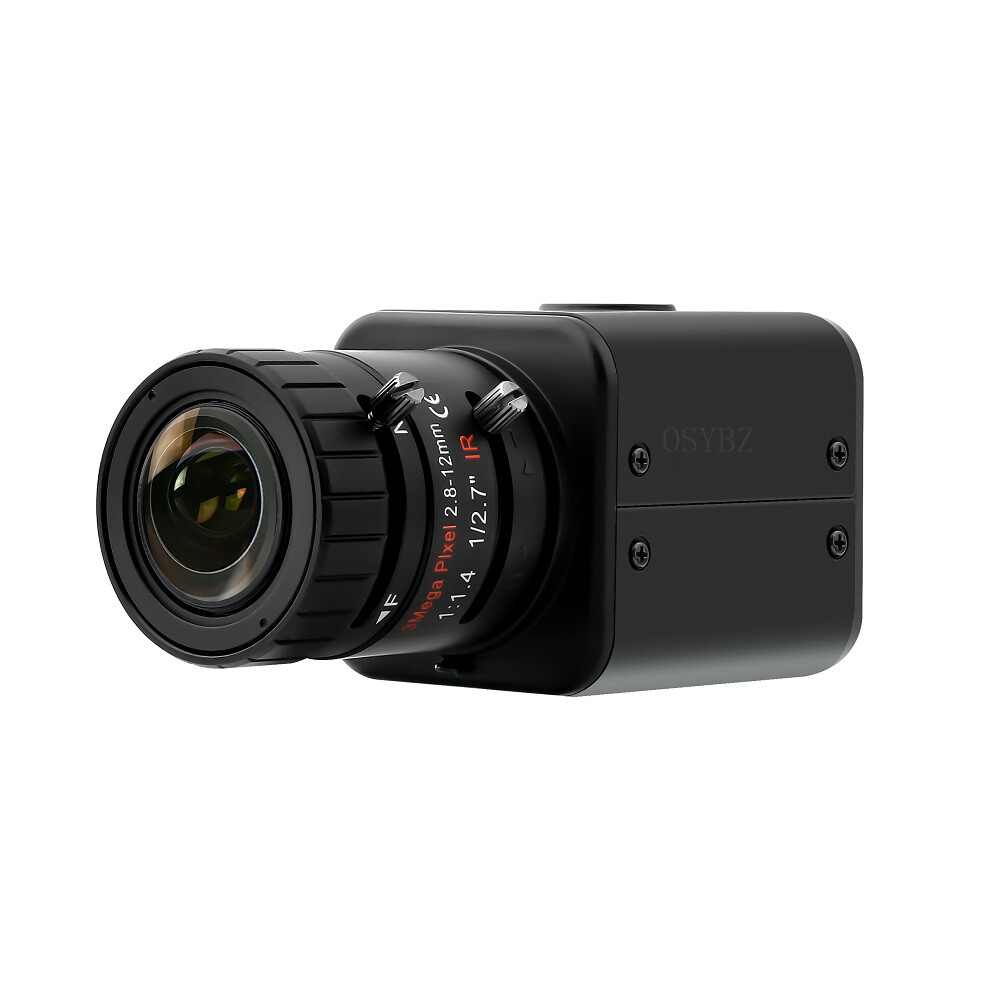

Product overview•2.0 Mega Pixel,Panasonic CMOSSensor
•1080p@30/25fps (The OSD menu choose)
•Support WDR,3D-DNR,DEFOGAUTO IRIS LENS 2.8-12mm
•OSD menu,Motion detection,Privacy Zone,HLC,BLC
•Dual Output-Megapixel HD-SDI(BNC)&CVBS:1.0 Vp-p 750hm
* Buyer Attention:SDI Camera can only compatible with SDI Equipment.Technical parameters
Model No.
OSYBZ-SDI12
Image Sensor
SDI 2.0 Mega Pixel, Panasonic CMOS Sensor
Effective pixels
1920(H) x 1080(V)
Scanning system
Progressive Scan
Minimum illumination
0.001 Lux
Lens
2.8-12mm Lens
IR view distance
N/A
WDR (Long and Short exposure)
OFF/ON(Level Adjustable)
O.S.D
Built-in
3D-DNR (3D Digital Noise Reduction)
OFF/ON(LOW/MIDDLE/HIGH)
Sens-Up
OFF/ON
Motion Detection
OFF/ON
Privacy Zone
OFF/ON
HLC
OFF/ON
B.L.C. control
OFF/ON
Defog
OFF/ON
White balance
AWB/ATW/PUSH/MANUAL
A.G.C
HIGH / LOW
Electronic shutter Speed
AUTO/MANUAL/FLK
Video output
HD-SDI(SMPTE 292M compatible) / CVBS:1.0 Vp-p Composite Signal(75ohm)
Operation temperature
-10℃- +50℃
Operation Humidity
Within 95% RH
Power supply
DC12V(+/-15%)
Power Consumption
100mA
Item Included:
- 1x CCTV 2.0MP SDI Camera
- 1x Power Supply
