CF to IDE Adapter Card 40 Pin Compact Flash CF to 40 Pin 3.5 Inch | IDE
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

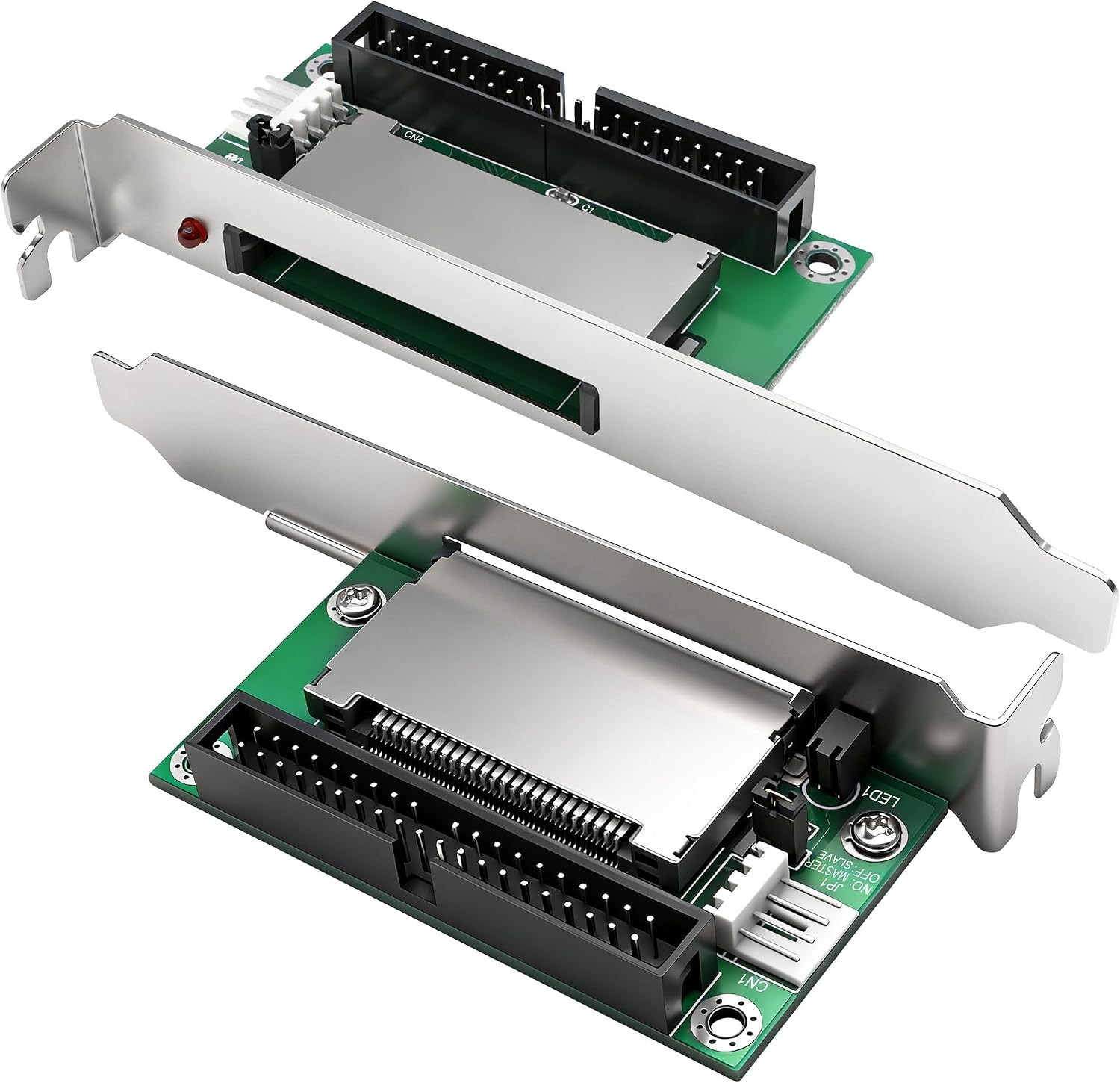

CF to IDE Adapter Card 40 Pin Compact Flash CF to 40 Pin 3.5 Inch | IDE
Price: US $22.99
Product description CF to IDE Adapter Card 40 Pin Compact Flash CF to 40 Pin 3.5 inch IDE Hard Drive Converter CF to IDE expansion cards CF to 40 Pin 3.5 inch IDE Hard Drive

*Compliant with standards: CF specification Ver3.0, IDE/ATA-66 specification

*Standard IDE interface: true IDE mode, and supports DMA-66 transfer mode

*Supports both CF-I and CF-II card types: also supports IBM micro hard drives with CF-II interface

*The IDE interface is a 40 pin/2.54mm female connector: this card can be directly plugged into the IDE socket

*Equipped with LED indicator lights: power LED, CF access active LED, card detection LED

*Master/slave jumper: can be configured as a master or slave

*Use CF card as DOM: automatically powered from IDE's 20 pin or external floppy drive power socket

*5.0V or 3.3V power supply: Choose the appropriate power supply voltage based on the CF card

System requirements: Compatible with Windows, OS X, and Linux operating systems

  • CF to IDE adapter is a portable solid-state electronic drive with IDE interface, which enables seamless conversion between CF card and IDE hard disk. The adapter comes with a PCI bracket, suitable for integrating CF card into systems with IDE interface for data transfer and storage
  • Standard IDE interface: true IDE mode, and supports DMA-66 transfer mode, unleashing the potential of CF cards and enjoying fast transfer. 【 Note 】 DMA support requires compatible Notebook Bios and CF cards
  • Compact Flash CF to IDE adapter card features a jumper selectable master-slave setting, allowing the CF card to be used as a module mounted disk (DOM) and automatically powered from the IDE's 20 pin or external floppy drive power connector, choosing between a 5.0V or 3.3V power supply
  • CF to IDE expansion cards support CF Type I Type II and Micro drive compact flash cards, used for PC computers (x86 kernels) and digital cameras with CF card interfaces to access image data
  • Widely used in laptops, PDA, Portable instruments and industrial equipment, compatible with Windows, OS X, and Linux systems, adapters provide an alternative solution for data storage or testing. It is very suitable for routers, firewalls, and diskless network clients
