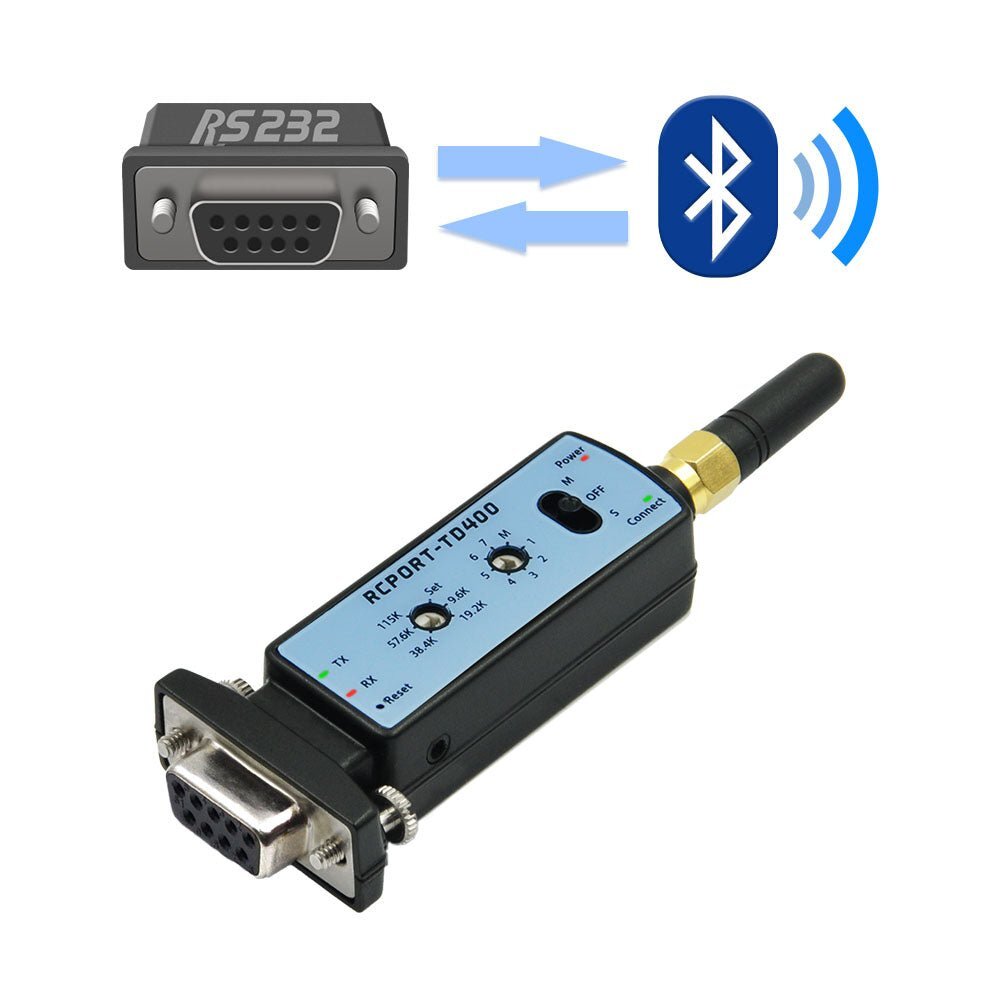

CHIPSEN RCPORT-TD400 RS232 Serial to Bluetooth BLE Wireless Adapter D-SUB9 (F)
The CHIPSEN RCPORT-TD400 Bluetooth Class 1 Wireless RS232 Serial Adapter with a DSUB9 Female connector converts RS232 serial data to Bluetooth and transmits and receives it wirelessly to other compatible devices.
The RCPORT-TD400 uses Bluetooth Low Energy (BLE) v5.3, the latest Bluetooth standard. Featuring long-distance Class 1 (+20dBm) capability, it supports 1,000 feet of wireless transmit distance and can be extended up to 4,000 feet using optional antennas.
For a send-and-receive pair, two TD400 Series devices are needed. (We offer a 10% discount at checkout for 2 or more devices.) Any TD400 Series device can communicate with any other TD400 Series device. For example, a TD400 (with a DSUB connector) can be attached to a piece of test equipment, and communicate with a TD420 (with a USB connector) attached to a PC.See the different TD400 Series devices available under the "Related Products" section at the end of this listing.
Features and Specifications
- Bluetooth Low Energy (BLE) v5.3 Class1 (Max+20dBm)
- RS232 Wireless communication replaces RS232 serial cables
- 1,000ft of wireless transmit distance with the default antenna (open fields)
- 4,000ft of wireless transmit distance with optional antennas
- Three operating modes: 1:1 Auto-Pairing, 1:1 Node-Switching and 1:7 Multi Connection (multiple simultaneous communication with up to 7 devices)
- DSUB9 (Female) Connector
- Serial Port: RS232, supports 9600 to 115,200bps baud rate
- Input Voltage: 5V to 24V DC
- Operating Temperature: -20C to +85C
- Dimensions (without antenna): 80.3 x 34.3 x 17.4 mm (3.16 x 1.35 x 0.69 inches)
- Supports Android OS, iOS, Windows and Linux
- Certifications: Bluetooth SIG, CE, FCC, JAPAN MIC , KC
Operating Modes
The TD400 series of adapters offer three operating modes: 1:1 Auto-Pairing, 1:1 Node-Switching and 1:7 Multiconnection.
1:1 Auto-Pairing
One TD400-Series adapter in Master Mode can auto-pair with one in Slave Mode simply by setting one to Master and one to Slave and keeping them near each other until they automatically connect. No configuration software is needed.
1:1 Node-Switching
When one TD400-Series adapter is set to Master Mode and multiple adapters are set to Slave mode using the TD400 Configuration Software, the Master device can individually communicate with any of the Slave devices by selecting the Slave device number on the Master's Device Selection Dial.
1:7 Multi Connection
When one TD400-Series adapter is set to Master Mode and multiple adapters are set to Slave mode using the TD400 Configuration Software, the Master device can communicate with all of the Slaves simultaneously by setting the Master's Device Selection Dial to "M".
Package Includes:
1X RCPORT-TD400 (DSUB9 (F) to Bluetooth Converter
1X Screwdriver
1X USB Power Cable (USB to DC Jack),
Printed Installation and Usage Guide
