EXCLUDING POWER SUPPLY

EXCLUDING NETWORKCABLES

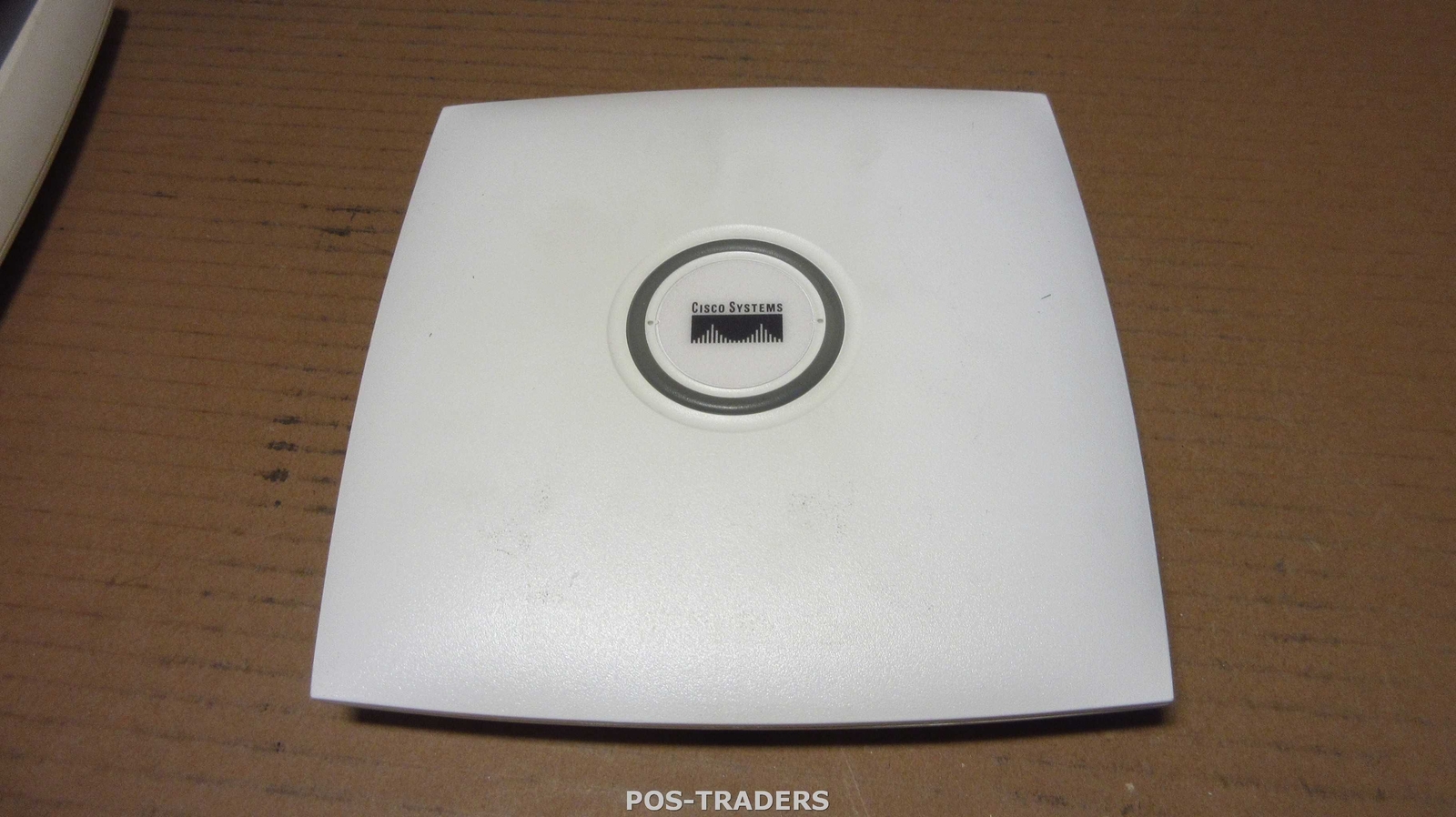

See photos for actual item!

Price is for 1 item.

Memory

• Memory Size : 32MB
• Memory Type : RAM
• Flash Memory : 16MB

Wireless LAN

• Range (Indoor - Maximum) : 137m
• Range (Outdoor - Maximum) : 290m
• Open Office Range at 11Mbps : 802.11g: 100m
• Open Office Range at 54Mbps : 802.11a: 24m 802.11g: 30m
• Frequency Band : 2.412 to 2.472 GHz 5.15 to 5.35GHz
• Number of Selectable Sub-channels : 13
• Speed Options : Up to 54Mbps
• Transmit Power : -1 to 20dBm
• Encryption : Hardware-Assisted AES
• Receive Sensitivity :
  • 802.11a: 6 Mbps: -87 dBm 9 Mbps: -86 dBm 12 Mbps: -85 dBm 18 Mbps: -84 dBm 24 Mbps: -80 dBm 36 Mbps: -78 dBm 48 Mbps: -73 dBm 54 Mbps: -71 dBm.
  • 802.11g: 1 Mbps: -93 dBm 2 Mbps: -91 dBm 5.5 Mbps: -88 dBm 6 Mbps: -86 dBm 9 Mbps: -85 dBm 11 Mbps: -85 dBm 12 Mbps: -84 dBm 18 Mbps: -83 dBm 24 Mbps: -79 dBm 36 Mbps: -77 dBm 48 Mbps: -72 dBm 54 Mbps: -70 dBm

Interfaces/Ports

• 10/100-BaseT Port Capacity : Uplink: Autosensing 802.3

System

• Network Management: BootP, Secure Shell (SSH) Protocol, Secure HTTP (HTTPS), Trivial File Transfer Protocol (TFTP), FTP, Telnet, console port, Simple Network Management Protocol (SNMP) MIB I and MIB II, CiscoWorks Resource Manager Essentials (RME), CiscoWorks Software Image Manager (SWIM), CiscoWorks Campus Manager, CiscoWorks CiscoView, and CiscoWorks WLSE
• Security : Cisco Wireless Security Suite supporting WPA and WPA2, including: Authentication: 802.1X support, including Cisco LEAP, EAP-Flexible Authentication via Secure Tunneling (EAP-FAST), Protected EAP- Generic Token Card (PEAP-GTC), PEAP-Microsoft Challenge Authentication Protocol Version 2 (PEAP-MSCHAPv2), EAP-Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), and EAP-Subscriber Identity Module (EAP-SIM) to yield mutual authentication and dynamic, per-user, per-session encryption keys (WPA and WPA2) MAC address and standard 802.11 authentication mechanisms.
• Encryption: AES-CCMP encryption (WPA2) TKIP encryption enhancements: key hashing (per-packet keying), message integrity check (MIC) and broadcast key rotation via Cisco TKIP or WPA TKIP Support for static and dynamic IEEE 802.11 WEP keys of 40 bits and 128 bits

Compliance

• Standards :
  • Safety: UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1
  • Radio Approvals: FCC Part 15.247, 15.407 EN 300.328, EN 301.893 (Europe) EMI and Susceptibility (Class B) FCC Part 15.107 and 15.109 EN 301.489-1 and -17 (Europe) AS/NZS 3548.
  • Security: 802.11i, WPA2, WPA 802.1X AES, TKIP.
  • Other: IEEE 802.11g and IEEE 802.11a FCC Bulletin T-65C RSS-102.

Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise.
