General Specifications:

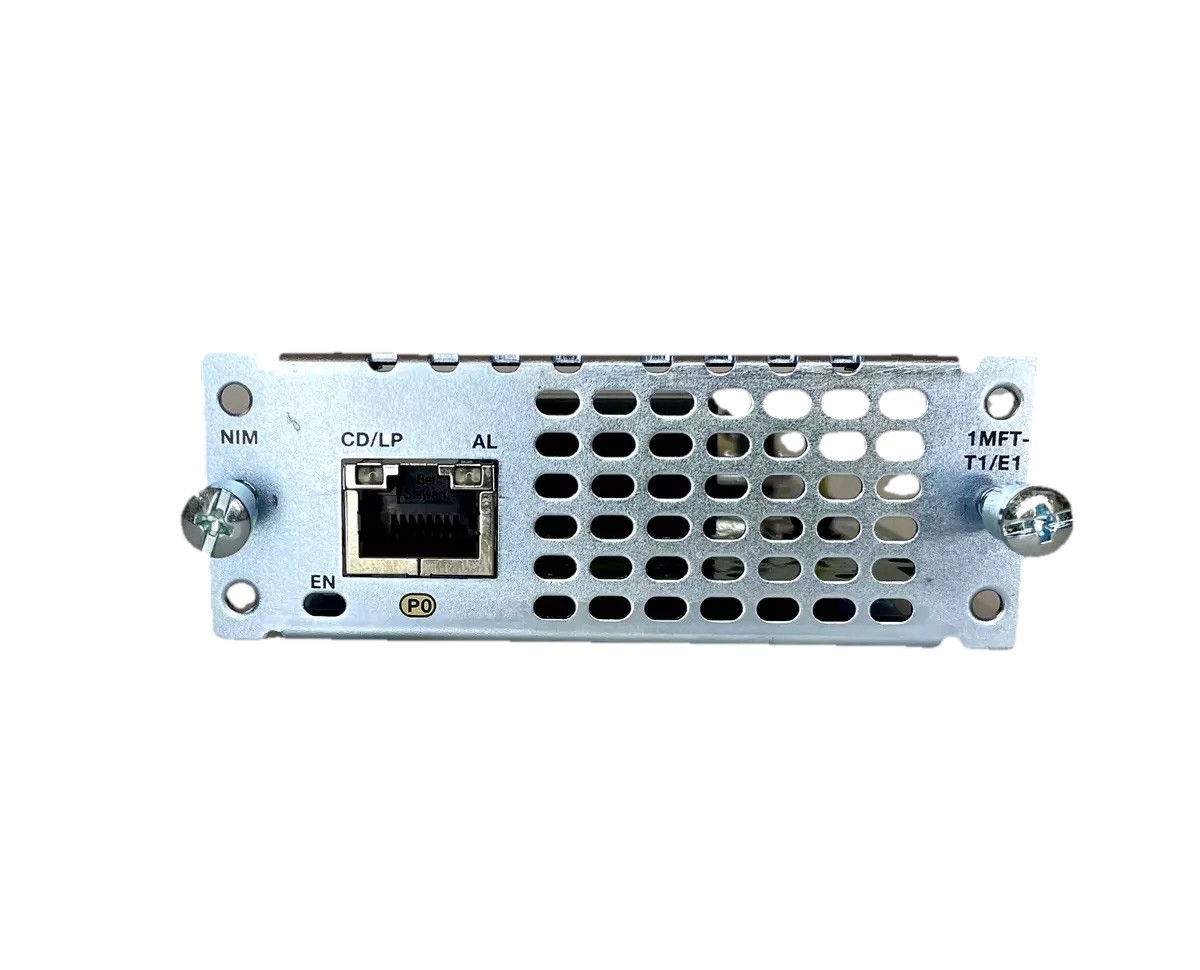

Product Name: Cisco 1-Port Multi-Flex Trunk Voice/Clear-Channel Data T1/E1 NIM
• Model Number: NIM-1MFT-T1/E1
• Product Series: Cisco ISR 4000 Series

Interface and Ports:

Number of Ports: 1
• Port Type: Multi-Flex Trunk (T1/E1)
• Connector Type: RJ-48C

Performance:

Data Transfer Rate:
T1: 1.544 Mbps
• E1: 2.048 Mbps
• Line Code:
T1: B8ZS or AMI
• E1: HDB3 or AMI
• Framing:
T1: SF (D4), ESF
• E1: CRC4, Non-CRC4

Features:

Clear-Channel Support: Yes, supports clear-channel DS1/E1
• Fractional Service: Yes, supports fractional T1/E1 services
• Voice and Data Integration: Supports both voice and data applications
• Signaling:
Supports PRI (Primary Rate Interface) for voice applications
• Supports data-only applications using clear-channel T1/E1
• Protocol Support:
Frame Relay
• PPP (Point-to-Point Protocol)
• HDLC (High-Level Data Link Control)

Environmental Specifications:

Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -40°F to 158°F (-40°C to 70°C)
• Relative Humidity: 5% to 85% (non-condensing)
• Storage Humidity: 5% to 95% (non-condensing)

Power Requirements:

Power Consumption: Approximately 5 watts

Dimensions and Weight:

Form Factor: Standard NIM form factor for ISR 4000 Series Routers
• Dimensions:
Height: 1.55 inches (3.94 cm)
• Width: 6.75 inches (17.15 cm)
• Depth: 7.28 inches (18.49 cm)
• Weight: Approximately 0.5 pounds (0.23 kg)

Applications:

Voice Services: Supports voice applications with PRI signaling, suitable for PBX and voice gateway integrations
• Data Services: Provides high-speed data connectivity for branch office WAN links
• Video Services: Can be used for video conferencing and other video applications

Additional Features:

Management: Fully manageable via Cisco IOS XE software, supporting SNMP, CLI, and other network management protocols
• Redundancy: Supports link redundancy and failover to ensure continuous service availability
• Security: Supports various security features such as ACLs (Access Control Lists) and encryption for data transmission
