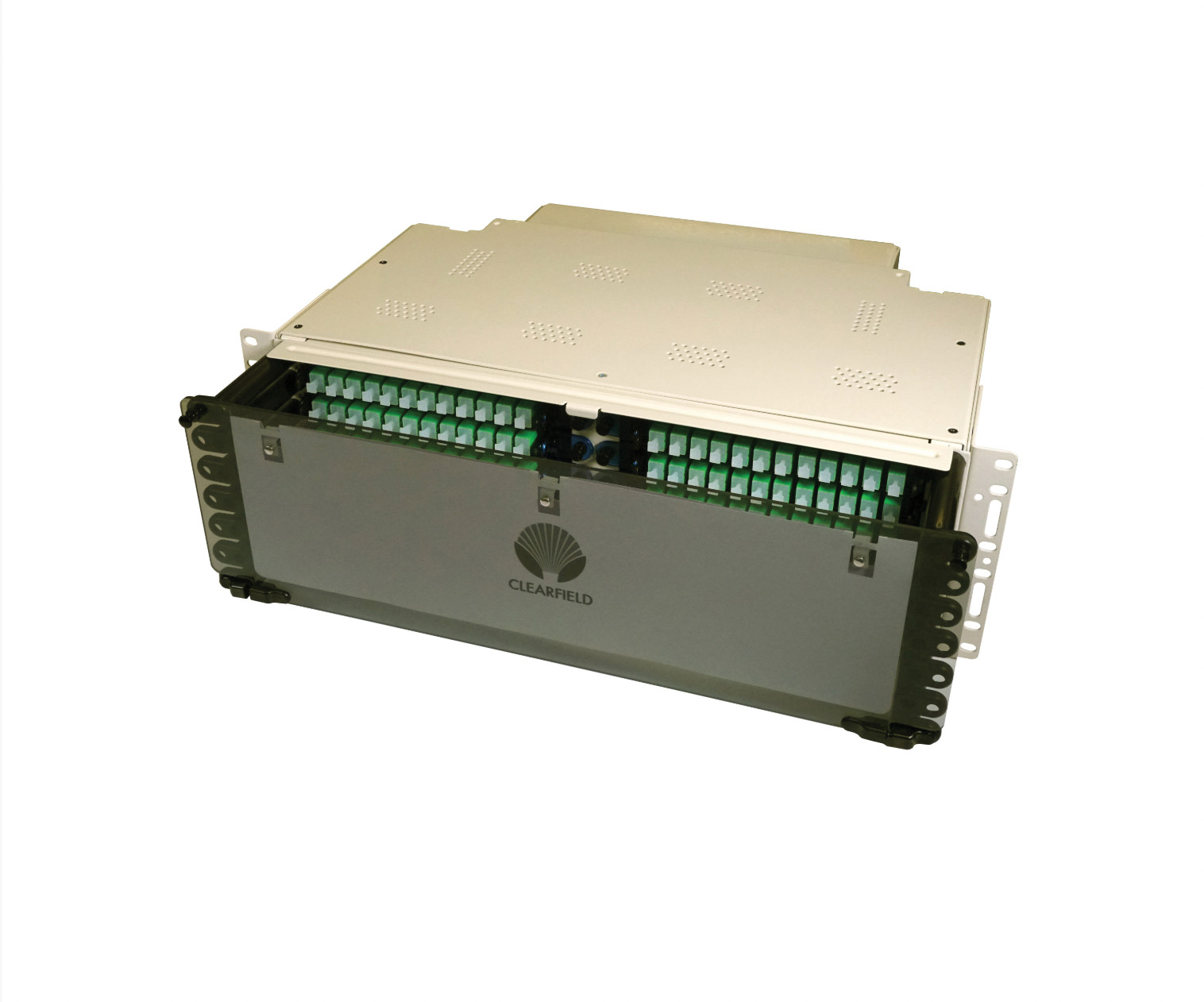

CLEARFIELD FxMP G-HBB-288-C1F-AZZ Fiber Patch Panel, 288 -Port, SC/APC
The FieldSmart 144-Fiber, 11 in. Chassis singlemode - Non-Ribbon FxMP Patch/Splice Panel is a high density, low maintenance fiber distribution panel for use in a data style rack/cabinet, a 19” (482.60 mm) or a 23” (584.20 mm) frame.

Integrity

• RUS listed
• Panels are fully certified to Telcordia GR-63 and GR-1089
• Fiber cable is certified to GR-20 and GR-409
• Terminations are designed and tested to Telcordia GR-326
• Supports all industry standard singlemode and multimode connectors

Protection

• Front cover is easily removable and installation of cassettes is simple with no tools needed
• Individual radius fingers provide organized and intuitively managed fiber jumpers and minimize pile-up
• Slide rails for cassettes provides a stable attachment utilizing the cassette T-rail, and are incorporated into the rear protection of panels
• Pre-terminated OSP buffer tubes are protected by bend-limited tubing and have their slack stored inside panel to protect against environmental and human damage
• The top metal protective cover slides out for top protection over the fiber cables and can sit in 3 positions: closed, open 3.25” (82.55 mm) and open 4.77” (121.16 mm)

Access

• Front access to pre-terminated assemblies with removable adapter plates for testing, cleaning and maintenance
• The entire 12-fiber Clearview Cassette is removable for hot-swap changes
• Front and rear access to panel
• New larger designation cards provide greater writing area for standard and high density panels
• Reversible Mounting Ears provide added flexibility

Investment

• Using the Clearview Cassette, all fibers are deployed in increments of 12, allowing users to scale from 12 ports to full configuration without additional equipment
