ALL FAIR OFFERS TAKEN INTO CONSIDERATION

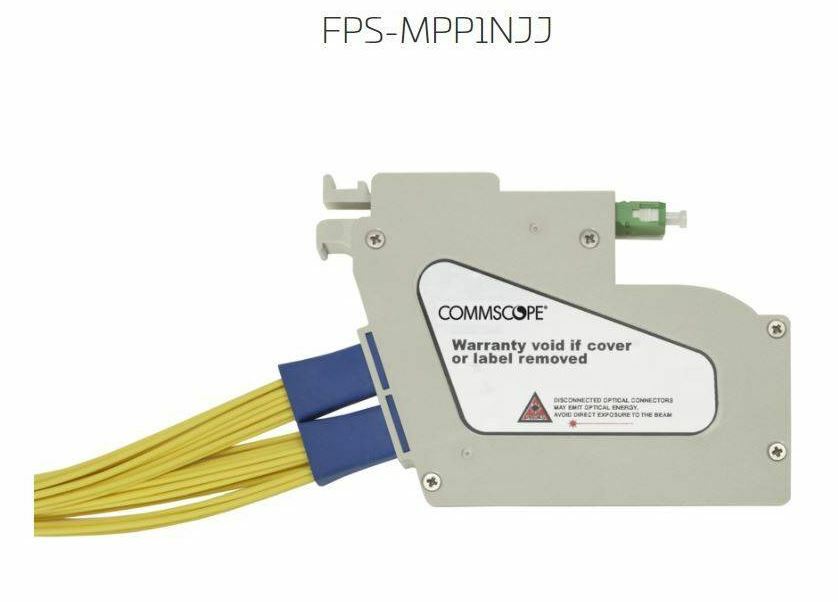

COMMSCOPE FDH 3000 Plug-and-Play Splitter Module, 1 x 4, SC/APC
FPS-MPP1NJJ

PRICING CAN VARY / FAIR OFFERS ACCEPTABLE / 15 AVAILABLE / SHIPPING NOT INCUDED

Features and Benefits
Rugged packaging is built for high performance, while the Plug-and-Play design reduces installation time
Bend-optimized fiber and ruggedized extreme temperature cabling
Easy to insert and remove without affecting adjacent splitters
Reversible dust cap makes test and turn-up easy
Specifications
Product Classification
Regional Availability Latin America | North America
Portfolio CommScope®
Product Type Splitter module
Product Series FDH 3000 | Mini FDH 3000
General Specifications
Device Type Plug-and-play module
Functionality Splitting
Access Front | Rear
Application For use in FDH 3000 cabinets
Circuits, quantity 1
Distribution Type 1 x 4 splitter
Interface, Input SC
Interface Feature, Input APC
Interface, Output SC
Interface Feature, Output APC
Module Color Putty white
Split Ratio Symmetrical
Splitter, quantity 1
Dimensions
Height 88.9 mm | 3.5 in
Width 12.7 mm | 0.5 in
Depth 139.7 mm | 5.5 in
Optical Specifications
Directivity, minimum 60 dB
Polarization Dependent Loss, maximum 0.2 dB
Uniformity, maximum 0.8 dB
Wavelength Range 1260–1635 nm
Insertion Loss, Splitter, maximum 7.2 dB
Insertion Loss, Splitter, typical 6.2 dB
Return Loss, Splitter, minimum 55 dB
