COYOTE® STP-XL Fiber Optic Drop Distribution Closure 800017381
Price: US $120.00

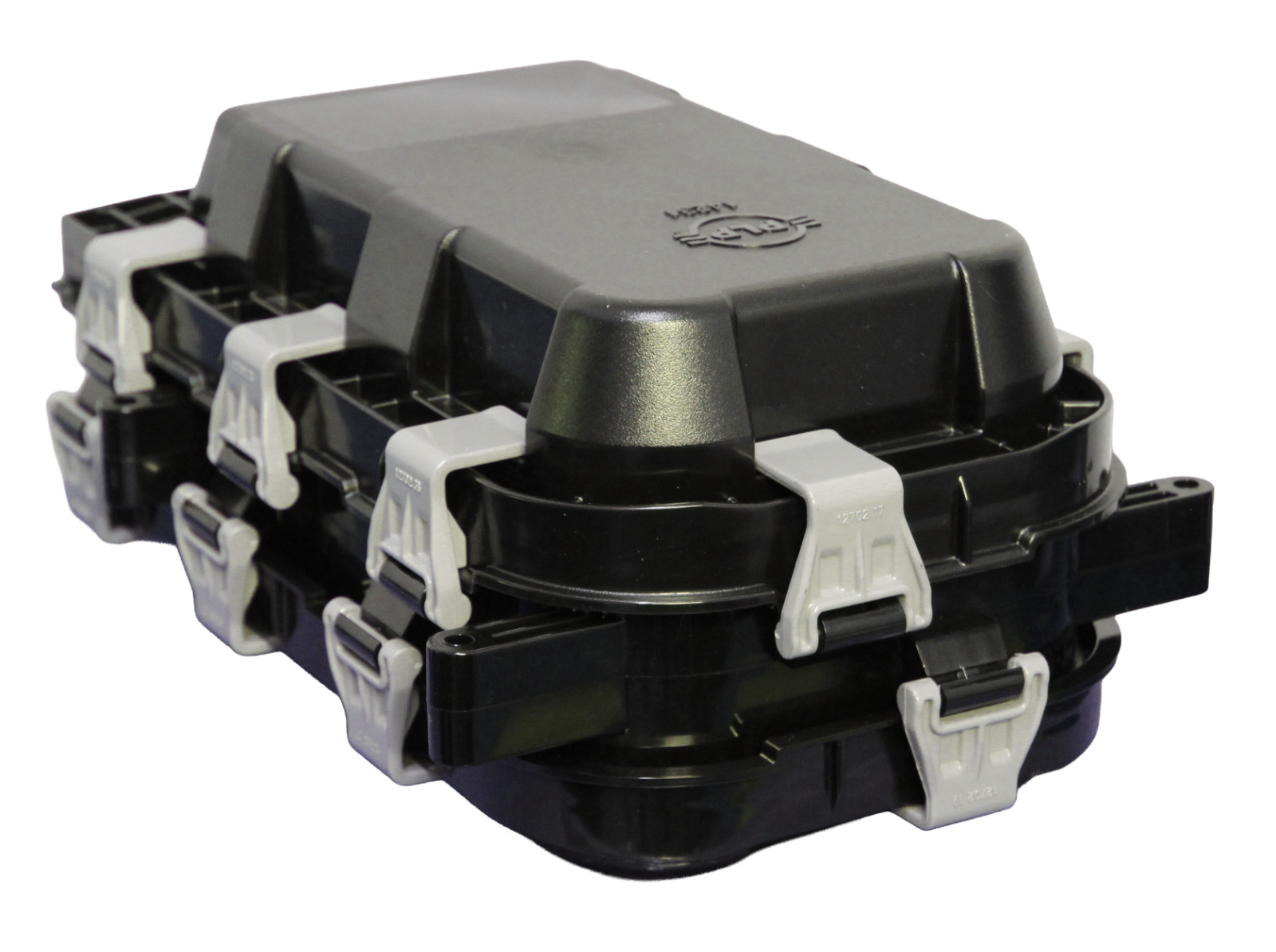

COYOTE® STP-XL Fiber Optic Drop Distribution Closure (Part Number: 800017381) is a rugged, highly adaptable enclosure manufactured by Preformed Line Products (PLP). This COYOTE® STP-XL Closure is specifically engineered for FTTx networks to facilitate fast and secure service termination and drop distribution.
Key Product Specifications
Product Series:PLP COYOTE® STP Pro Series (XL Platform)
Network Function:Acts as an access or distribution drop closure in FTTx networks.
Fiber Management:Features a dual-chamber/two-section architecture. This allows technicians separate, independent access to the main cable splices versus customer drop cable connections.
Capacity Capabilities:The STP-XL shell can support a maximum capacity of up to192 splicesor up to24 SC / 48 LC network connectors.
Sealing Protection:Utilizes an integrated over-molded cover gasket and PLP's flexible silicone, conical grommet sealing technology. This yieldsIP68 rate performance(withstanding continuous water immersion) without needing specialized tools for installation.
Application Use:Built with UV-stabilized, high flame-resistant polymers optimized for direct buried, below-grade handholes, pole mounts, or aerial installations.
Key Technical Specifications
Configuration Variant: The COYOTE® STP-XL Fiber Optic Drop Distribution Closure includes a6-port grommet base with 8 SC/APC adapters.
High Splice Capacity: Accommodates up to192 single fusion splices.
Connectivity Options: Supports up to24× SC or 48× LC connectors.
Environmental Protection: RatedIP68for complete dust resistance and continuous water immersion.
Fiber Management: Utilizes up to8 hinged splice trays(maximum 24 splices per tray) and small-format PLC splitters.
Core Features & Design Advantages
Two-Section Internal Architecture: Provides segregated access to the primary feeder cable splices and individual customer drop splices.
Toolless Cover Re-entry: A robust, over-molded cover latch system guarantees a reliable watertight seal while allowing quick, tool-free reentry for troubleshooting or scaling.
Universal Cable Support: Features a conical grommet sealing mechanism that accepts flat or round fiber cables with diameters ranging from2.4 mm to 14 mm.
Versatile Deployments: Suitable for direct buried, below-grade, aerial, pole, or wall-mount applications.
