• Product Description
• Single chip HID USB to SMBus main bridge Integrated USB transceiver; No external resistor or crystal required;512 byte SMBus data buffer Integrated 194-byte one-time programmable ROM for storing customizable product information.
• Open access interface specifications;Windows, Mac, and Linux HID to SMBus Library;API for rapid application development
• Device address: 7-bit value, that is, the slave device address of CP2112.
• The device will only ACK this address, but will not respond to any read/write requests;Read/Write Timeout;SCL low timeout;
• 48 MHz to 94 kHz;Switch LED during SMBus reading;Switch LED during writing to SMBus
• Supply voltage
• Self-powered: 3.0 to 3.6V;USB bus power supply: 4.0 to 5.25V;I/O voltage: 1.8V to VDD;Temperature range:-40 to 85°C

• 512-byte SMBus data buffer with configurable clock speed Device Address 7-bit value is the slave address of the CP2112
• Integrated 194-byte one-time programmable ROM for customizable product information， Supports HID to SMBus library API for Windows, Mac and Linux for rapid application development
• Applications: portable controllers, USB dongles, data logging
• Quality Assurance:Every product undergoes comprehensive inspection before leaving the factory to ensure that all the products you sell can work properly

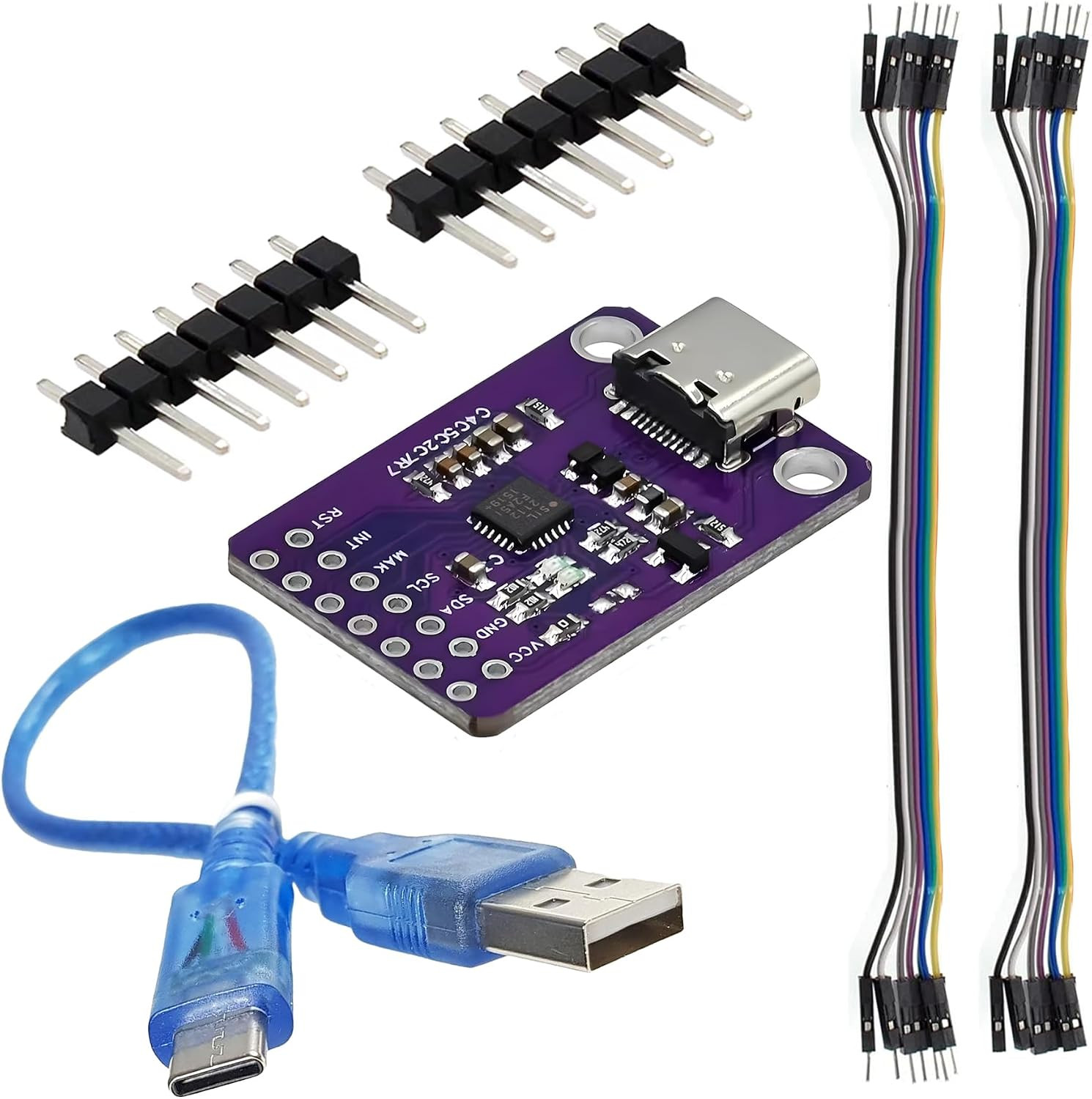

• Package included:1 X CP2112 Debug Board USB to SMBus I2C Communication Modul and 1 X USB to Type-c cable and 2 X 7-pin arrangement and 2 X 7-pin Dupont Line
