CRD14

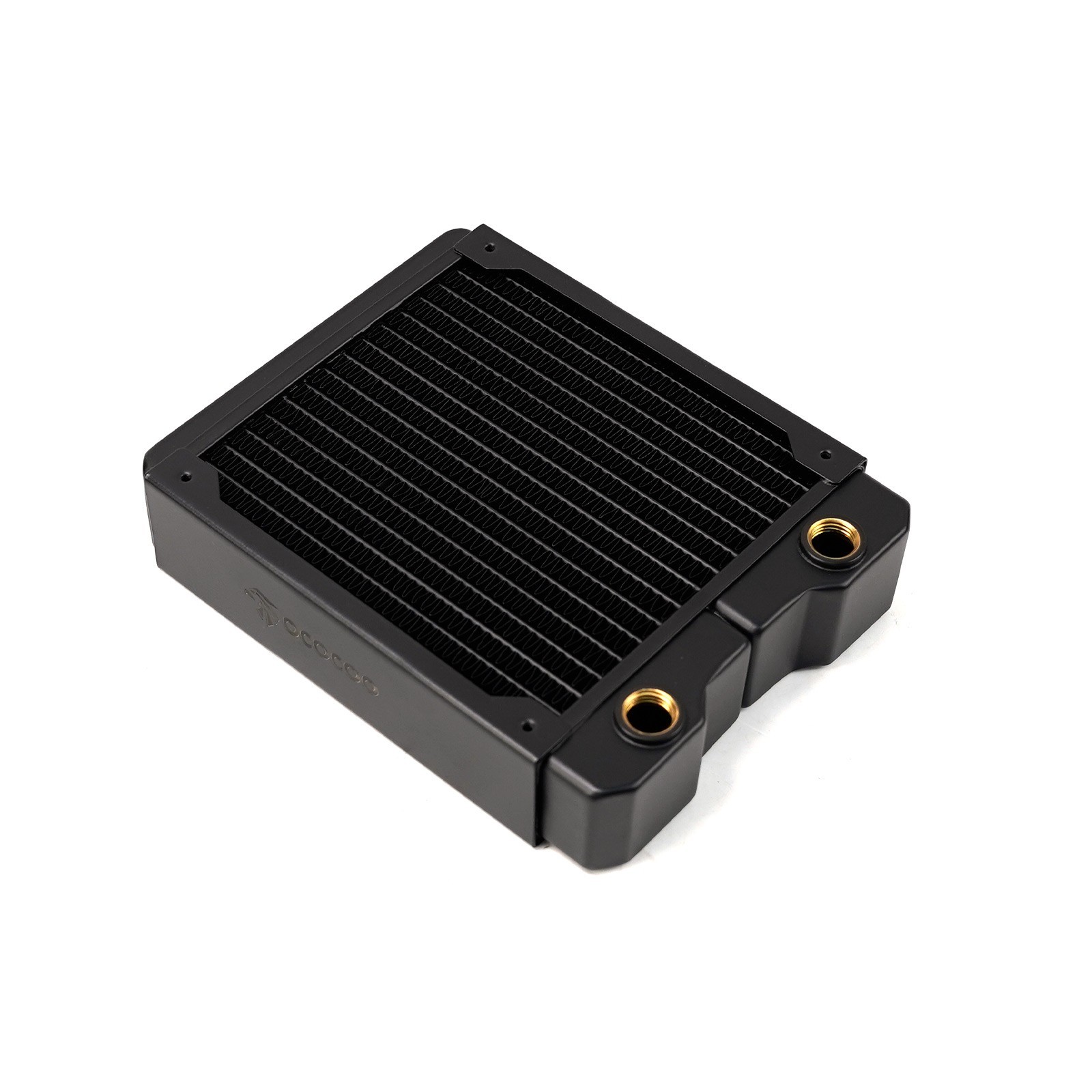

140mm Copper Water Cooling Radiator — 40mm Thick, Single 140mm Fan
Compact 140mm-Class Cooling — 45 dm² in a Single Fan in~45 dm²
Cooling Area~600g
1.32 lbs1x140mm
140mm Fan Support16 Waterways
vs 12 on 120mm SeriesKey Features📐~45 dm² in a Single 140mm Slot — Compact Powerhouse
Fits where a 240mm rad can't go, but delivers near-240mm performance thanks to the wider 140mm body and 40mm thickness. Ideal for SFF cases with 140mm fan support or single-component cooling with thermal headroom to spare.
💧16 Waterways — More Channels Than 120mm Radiators
The 140mm-class design packs 16 precision water channels vs 12 on standard 120mm rads. Lower flow resistance, better coolant distribution across the wider fin area.
🌬Single 140mm Fan — Bigger Sweep, Quieter Operation
A single 140mm fan moves ~70 CFM at 1000 RPM vs ~50 CFM from a 120mm fan. The wider radiator body fully captures the larger fan sweep — no wasted airflow at the edges.
🔩40mm Steel Frame — Rugged Single-Fan Build
Reinforced 40mm thick steel frame with copper fins + brass water chambers. High-temperature integrated welding — same factory quality as the larger CRD28 and CRD42.
⚡Lightweight at ~600g — Mounting-Friendly
At just 600g, this radiator places minimal stress on case mounting points. Perfect for vertical mounts, rear exhaust positions, and portable builds where weight matters.
Technical (LxWxH)174.5 x 140 x 40 mm (6.87 x 5.51 x 1.57 in)Weight~600 g (1.32 lbs)MaterialCopper fins + brass chambers + steel frameConnectorG1/4 thread x 2 portsWaterways16 channelsHeat Dissipation Area~0.45 m² (~45 dm²)Fan Support1 x 140mm fan (push-pull compatible)Color / FinishBlack / baked paintNoteDimensions +/- 1mm tolerance (hand-measured)⚠ Important Installation Warnings
- Screw Length:Must NOT exceed5mmpast fan surface. Punctured tubes NOT covered by warranty.
- Case Compatibility:Requires 140mm fan mounting. 120mm fans are NOT compatible with this radiator.
- Dimensions Tolerance:Hand-measured dimensions may vary +/- 1mm between batches.
- Flush Before Use:Rinse with distilled water before first use.
140mm Fan Radiator FamilyModelFansDimensionsCooling AreaWeightBest ForCRD141x140mm174.5x140x40mm~45 dm²~600gSFF / Single ComponentCRD282x140mm313x140x40mm137 dm²1,077gMid-Tower / CPU+GPUCRD423x140mm455x140.5x40mm205 dm²1,484gFull-Tower / WorkstationShipping and ReturnsDispatch TimeWithin 48 hours after paymentReturns30-day return. Buyer pays return shipping.
Need 140mm fan cooling in the smallest possible package?
Message us for bulk pricing or loop advice!
OCOCOO est. 2003 | ISO 9001 | TUV Rheinland Verified | 30+ Patents | 50,000-unit Monthly Capacity
