CRD480

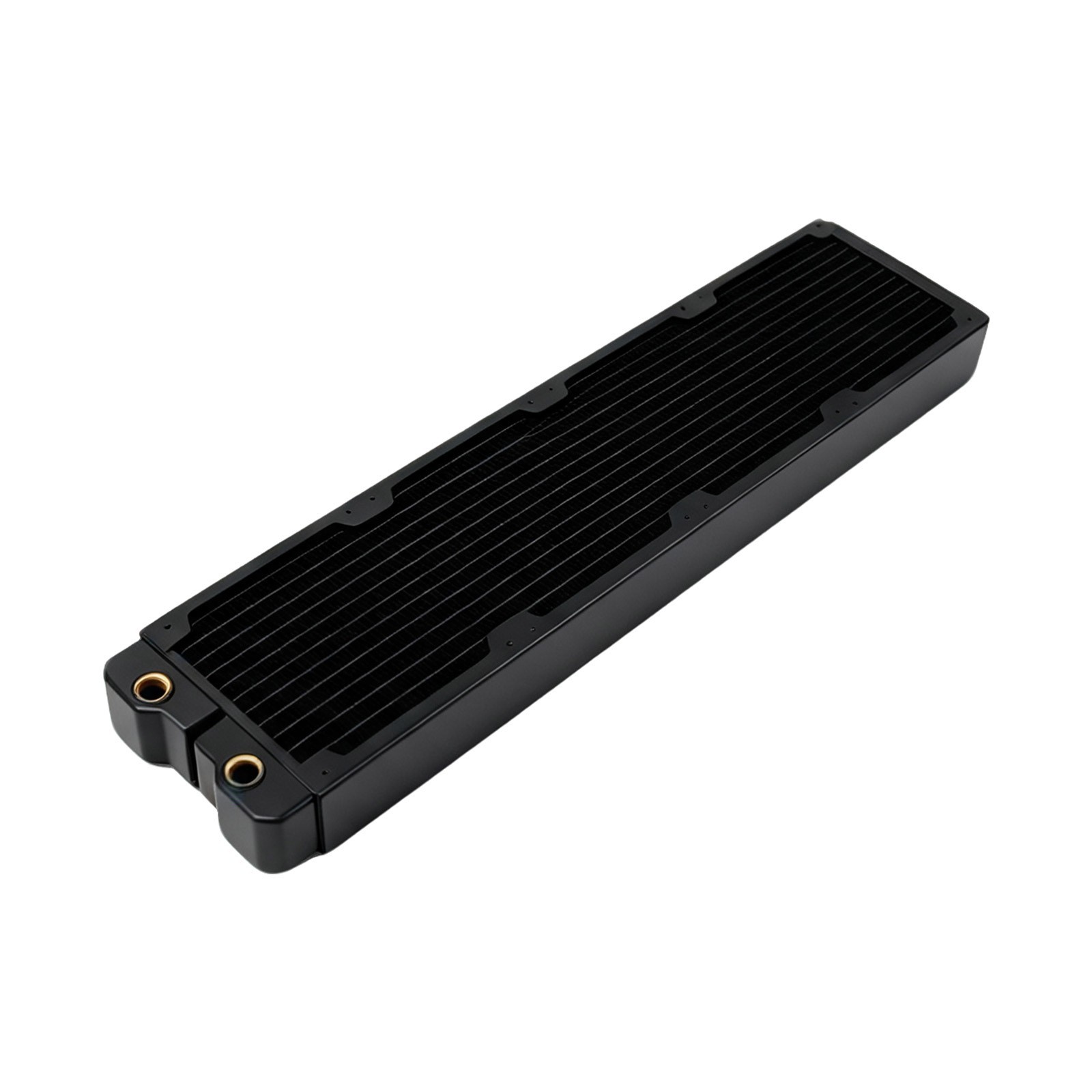

480mm Copper Water Cooling Radiator — 40mm Thick, 4x120mm Fan
162.52 dm² — Quad-Fan 480mm Monster for Extreme in162.52 dm²
Cooling Area1,348g
2.97 lbs of Copper4x120mm
Push-Pull 8-Fan Max32 Screws
Full Kit IncludedKey Features📐162.52 dm² — 480mm of Pure Copper Cooling
Four 120mm fan positions spanning 517mm of copper fin array. Handles multi-GPU workstations, overclocked servers, and industrial equipment with cooling headroom to spare. Near double the area of a 360mm radiator.
💪1.35 kg Copper Core — Serious Thermal Mass
Over 1.3 kilograms of copper and brass absorb and dissipate massive heat loads without temperature spikes. Ideal for rendering farms, AI training rigs, and continuous-duty industrial cooling.
🌬Quad 120mm — Push-Pull Up to 8 Fans
4 x 120mm fan positions per side, up to 8 fans in push-pull. At moderate RPM, 8 fans deliver massive airflow through the 40mm fin stack — achieve elite cooling at near-silent noise levels.
🔩40mm Steel Frame + Copper-Brass Core
Reinforced steel frame with copper fins and brass water chambers. High-temperature integrated welding for a leak-proof single-piece structure. Factory pressure-tested to 0.2 MPa.
🛠32-Piece Screw Kit — Everything Included
16x M3x30 long fan screws + 16x M3x6 short radiator mounting screws — enough for full 8-fan push-pull configuration plus case mounting. No trips to the hardware store.
Technical (LxWxH)517 x 120 x 40 mm (20.35 x 4.72 x 1.57 in)Weight~1,347.7 g (2.97 lbs)MaterialCopper fins + brass chambers + steel frameConnectorG1/4 thread x 2 portsWaterways12 channelsHeat Dissipation Area~162.52 dm²Fan Support4 x 120mm fans (push-pull compatible — up to 8 fans)Color / FinishBlack / baked paintScrew Kit — 32 Pieces TotalScrew TypeQtyUseM3 x 30mm (long, silver)16 pcsFan mounting (push-pull: 8 fans x 2 screws)M3 x 6mm (short, black)16 pcsRadiator mounting to casePlease Note:Fittings, fans, tubing, and coolant are NOT included.⚠ Important Installation Warnings
- Screw Length:Must NOT exceed5mmpast fan surface. Use included M3x30mm screws. Punctured tubes NOT covered by warranty.
- Case Compatibility:Requires case with native 480mm radiator support (4x120mm layout). Standard cases are NOT compatible.
- Weight:At 1.35 kg, ensure case mounting points can support the weight, especially in top-mount orientation.
- Flush Before Use:Rinse with distilled water before first use.
Shipping and Returns
Dispatch TimeWithin 48 hours after paymentReturns30-day return. Buyer pays return shipping.
Running a quad-GPU workstation or external radiator setup?
This is the radiator built for it. Message us for volume pricing!
