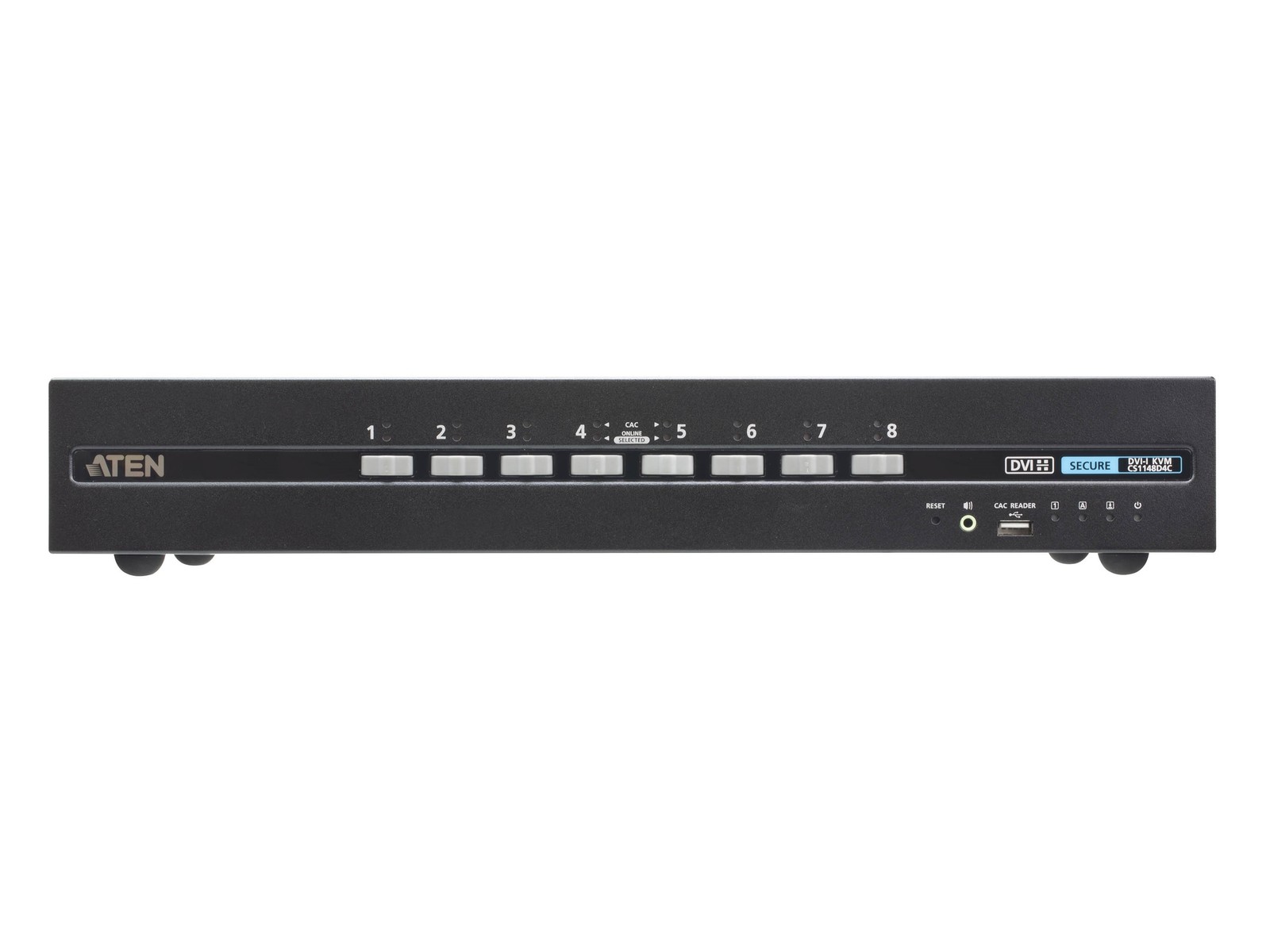

for All Products Aten CS1148D4C 8-Port USB DVI Dual Display Secure KVM Switch with CAC (PSD PP v4.0 Compliant) Manufacturer:Aten SKU:CS1148D4C Condition:New Warranty:3 Years
ATEN PSD PP v4.0 Secure KVM Switch CS1148D4C is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1148D4C is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).
ATEN PSD PP v4.0 Secure KVM Switch CS1148D4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
To enhance security, ATEN PSD PP v4.0 Secure KVM SwitchCS1148D4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1. With multi - layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1148D4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.
Note:
- The Remote Port Selector is not supplied in the package and requires a separate purchase.
Features:
- Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
- Always-on chassis intrusion detection - renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
- Tamper-evident labels - provides visual indication of any attempt to access the ATEN PSD PP v4.0 Secure KVM Switch’s internal components
- Non-reprogrammable firmware - prevents reprogramming the ATEN PSD PP v4.0 Secure KVM Switch’s firmware
- Restricted peripheral connectivity - non-authorized HIDs (Human Interface Devices), video, or authentication device connections are rejected
- Port selection via pushbuttons / Remote Port Selector (RPS)1 only to enhance security
- LED indicators for peripheral filtering and KVM security status
- Strict audio filtration protects against audio leakage
- Rugged metal enclosure
- True data path isolation - data cannot be transferred between computers
- The ATEN PSD PP v4.0 Secure KVM Switch controls and isolates data flow between console devices and connected computers
- Unidirectional data flow between console devices and the selected computer is ensured
- Supports analog audio (speaker only)2
- The ATEN PSD PP v4.0 Secure KVM Switch’s keyboard / mouse data is automatically deleted after transmission and automatically purged when the KVM port focus is switched
- Supports administrative configuration of CAC Port filtering to accept or reject specific USB authentication devices
- Supports administrative configuration of keyboard / mouse ports filtering to reject specific USB HID devices
- Provides administrative functions for authorized administrators to audit KVM log data
- Supports enable / disable CAC function by port
- Superior video quality - up to 4K (3840 x 2160 at 30 Hz)3
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching among different sources
Specifications:
Computer Connections 8 Port Selection Pushbutton, Remote Port Selector Connectors Console Ports 2 x DVI-I Dual Link Female
2 x USB Type-A Female (White)
1 x Mini Stereo Jack Female (Green; front panel) KVM Ports 16 x USB Type-B Female (White)
16 x DVI-I Dual Link Female
8 x Mini Stereo Jack Female (Green) Power 1 x 3-prong AC Socket USB CAC Port 1 x USB Type-A Female (White; front panel) Remote Port Selector 1 x RJ-11 (Black; rear panel) Switches Port Selection 8 x Pushbuttons Reset 1 x Semi-recessed Pushbutton Power 1 x Rocker LEDs Power 1 (Green) Online / Selected (KVM Port) 8 (Orange) Online / Selected (CAC Port) 8 (Green) Video 2 (Green) Key Lock 3 (Green) Emulation Keyboard / Mouse USB Video Max. 3840 x 2160 at 30 Hz (UHD)*
DVI Dual Link: 2560 x 1600;
DVI Single Link: 1920 x 1200
DVI-A: 2048 x 1536 Maximum Input Power Rating 100–240V~; 50-60 Hz; 1A Power Consumption AC110V:15.9W:93BTU
AC220V:16W:94BTU Environmental Operating Temperature 0-50°C Storage Temperature -20-60°C Humidity 0 - 80% RH, Non-condensing Physical Properties Housing Metal Weight 3.32 kg ( 7.31 lb ) Dimensions (L x W x H) 43.24 x 20.49 x 6.55 cm
(17.02 x 8.07 x 2.58 in.) Note * DVI Secure KVM Switches support up to 3840 x 2160 at 30 Hz video output on compatible HDMI-interfaced monitors/computers with ATEN DVI-to-HDMI KVM cables. Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Includes:
- 1x CS1148D4C 8-Port USB DVI Dual Display Secure KVM Switch with CAC
- 1x Power Cord
- 1x User Instructions
