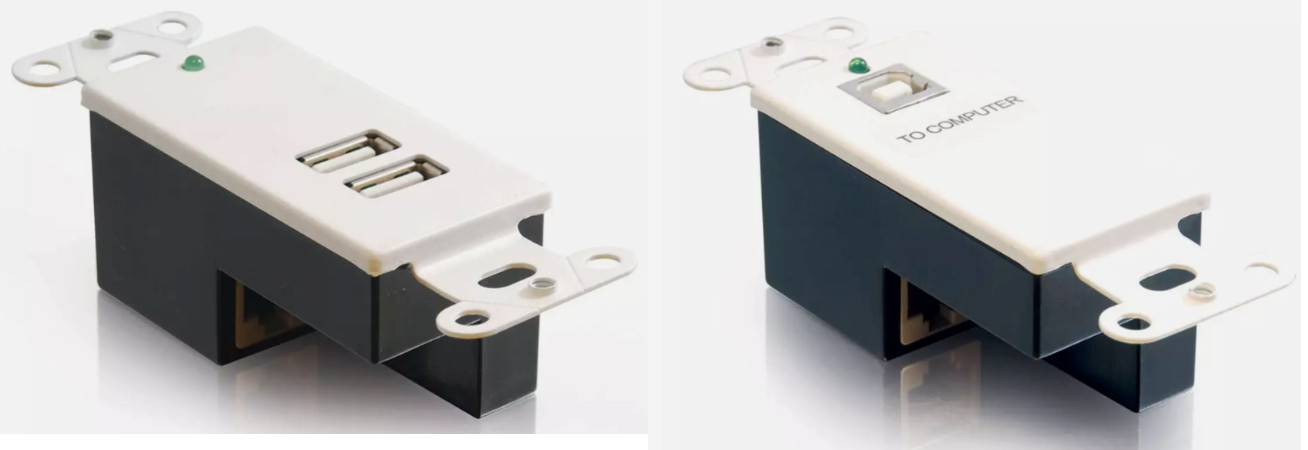

This Kit includes both Transmitter and Receiver - Both are open box, tested but never installedBoth component of a complete solution, Transmitter and paired Receiver, conquers USB length limits. This solution extends the signal of a USB device to a host computer up to 150 feet, enabling you to place your USB projector, camera, printer, web cam, hub or other USB device exactly where you want it!The USB superbooster wall plate is powerful yet simple, with no drivers to install or special software required. It's also compatible with any computer that supports USB.
The overall plug-and-play solution consists of this wall plate receiver, and your choice of a compatible transmitter that is sold separately: the wall plate (#29344), the dongle (#29348) or the keystone insert (#29349). Customize the configuration to your specific needs! This versatility is ideal for applications where you need flexibility at your computer/source side.
The complete solution is connected via a standard Cat5, Cat5E, or Cat6 UTP cable (not included) that provides easy in-wall installation. This delivers a clean, finished look important for homes, classrooms, offices and anywhere you don't want visible cables lying around. Use pre-terminated network cables, or pull unterminated cable and use the included toolless IDC RJ45 connector to terminate your own cable. Because the USB superbooster wall plate is bus-powered, no external power source is required. Compliant with USB specification 1.1.
Input: Two USB Type A Female
Output: One RJ45 Female
Please Note: The power demands of devices such as external drives and USB hubs may require the use of external power for proper operation.
Note: If the USB signal is being extended to support an interactive whiteboard, then we recommend using our product
RECEIVER: Connector 1:(2) USB-A Female Connector 2:(1) RJ-45 FemaleBoth component of a complete solution, Transmitter and paired Receiver, conquers USB length limits. This solution extends the signal of a USB device to a host computer up to 150 feet, enabling you to place your USB projector, camera, printer, web cam, hub or other USB device exactly where you want it!The USB superbooster wall plate is powerful yet simple, with no drivers to install or special software required. It's also compatible with any computer that supports USB.
The overall plug-and-play solution consists of this wall plate transmitter and this wall plate receiver.
The complete solution is connected via a standard Cat5, Cat5E, or Cat6 UTP cable (not included) that provides easy in-wall installation. This delivers a clean, finished look important for homes, classrooms, offices and anywhere you don't want visible cables lying around. Use pre-terminated network cables, or pull unterminated cable and use the included toolless IDC RJ45 connector to terminate your own cable. Because the USB superbooster wall plate is bus-powered, no external power source is required. Compliant with USB specification 1.1.
Input: Two USB Type A Female
Output: One RJ45 Female
Please Note: The power demands of devices such as external drives and USB hubs may require the use of external power for proper operation.
Note: If the USB signal is being extended to support an interactive whiteboard, then we recommend using our product
Transmitter General InfoColorWhiteTypeActive Device, Extender, Transmitter, Wall PlateApplication SectorCommercial, ResidentialProduct LineC2GCountry Of OriginChinaFeaturesPlug and PlayUPC Number757120293446DimensionsProduct Depth US1.34 inProduct Height US4.13 inProduct Width US1.31 inTechnical InformationData Transfer Rate12 MbpsNumber of Gangs1
Connector 1:(1) USB-B FemaleConnector 2:(1) RJ-45 Female
Receiver General InfoColorWhiteTypeActive Device, Extender, Receiver, Wall PlateApplication SectorCommercial, ResidentialProduct LineC2GCountry Of OriginChinaFeaturesPlug and PlayUPC Number757120293453DimensionsProduct Depth US1.34 inProduct Height US4.13 inProduct Width US1.31 inTechnical InformationData Transfer Rate12 MbpsNumber of Gangs1
RECEIVER:Connector 1:(2) USB-A FemaleConnector 2:(1) RJ-45 Female
