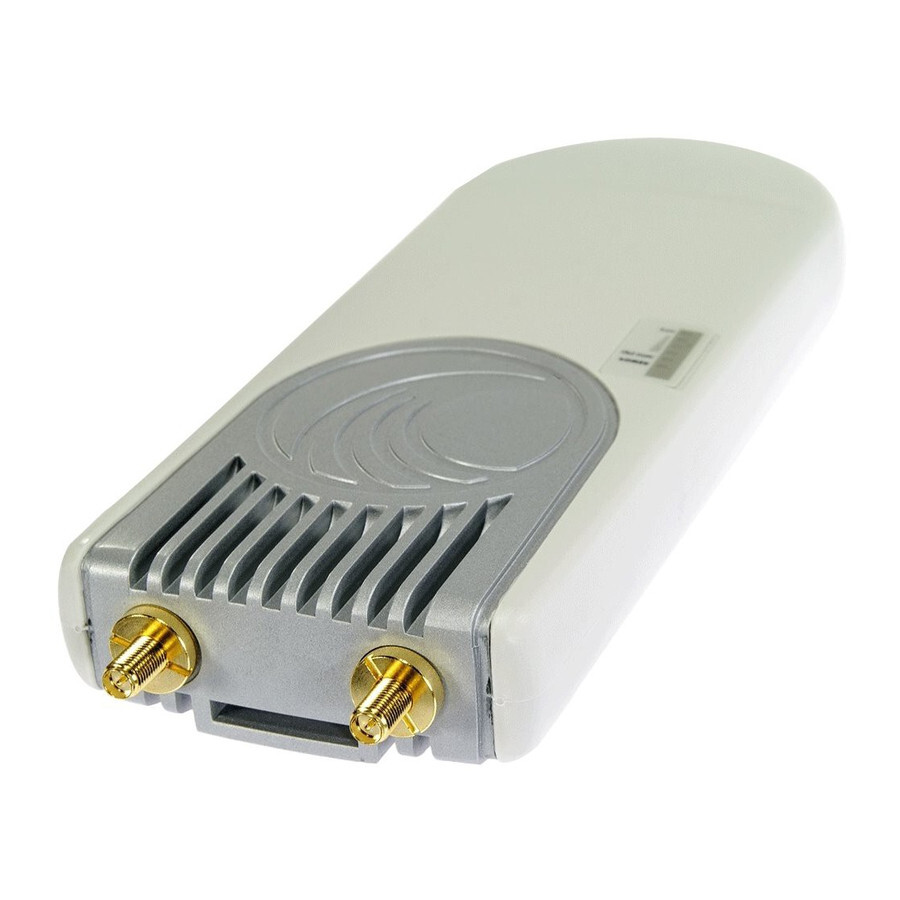

GPS Sync Radio5GHz 200MbpsCambium Networks ePMP solution provides stable coverage across large service areas and enhances existing infrastructure to deliver reliable, high-quality broadband connectivity that can be deployed quickly. The ePMP 1000 supports impressive performance of over 200 Mbps to deliver high bandwidth services such as voice over IP, video and data to end users. MIMO and modulation 2x2 MIMO/OFDM Bandwidth 5/10 MHz, 20/40 MHz Frequency range 4.9 - 5.9 GHz Max power output 30 dBm combined (5.8 GHz band) Gain In function of the connected antenna Maximum Power Consumption 7 W Maximum, 5 W Typical Outdoor Protection IP55 Management HTTPs, SSH, FTP, SNMPv2c Antenna Connector External (RP-SMA connectors) Channel Spaces Configurable in 5 MHz increments MAC Layer Cambium Proprietary Ethernet Structure 10/100/1000BaseT, rate auto negotiated (Cambium PoE) Used Protocols IPv4, UDP, TCP, IP, ICMP, SSH, SNMPv2c, HTTPs, FTP VLAN 802.1Q with 802.1p priority Input voltage 24 a 30 V Encryption 128-bit AES (CCMP mode) Dimensions 10.5 x 4.3 x 3" (269 x 110 x 77 mm) Weight 1.14 lbs (520 g) Protector vs discharges Integrated 1 Joule
PoE included and electrical connection cable​SPECTRUM

• CHANNEL SPACING: Configurable on 5 MHz increments
• FREQUENCY RANGE: 5150 – 5350 MHz, 5470– 5875 MHz
• CHANNEL WIDTH: 20 MHz or 40 MHz

INTERFACE

• MAC (MEDIA ACCESS CONTROL) LAYER: Cambium Proprietary
• PHYSICAL LAYER: 2x2 MIMO/OFDM
• ETHERNET INTERFACE: 100/1000BaseT, rate auto negotiated (802.3af compliant)
• POWERING METHODS SUPPORTED: 30V PoE Supply (included), CMM3 & CMM4, 802.3af PoE Supply
• PROTOCOLS USED: IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, FTP
• NETWORK MANAGEMENT: HTTPs, FTP, SNMPv2c
• VLAN: 802.1Q with 802.1p priority

ARQ: Yes

NOMINAL RECEIVE SENSITIVITY (W/ FEC) @ 20MHZ CHANNEL: MCS1 = -90 dBm to MCS15 = -62 dBm (per branch)

NOMINAL RECEIVE SENSITIVITY (W/ FEC) @ 40MHZ CHANNEL: MCS1 = -87 dBm to MCS15 = -59 dBm (per branch)

MODULATION LEVELS (ADAPTIVE): MCS1 (QPSK 1/2) to MCS15 (64QAM 5/6)

LATENCY (nominal, roundtrip): 6 ms (Flexible Frame Mode), 17 ms (GPS Sync Mode)

GPS SYNCHRONIZATION: Yes, via Internal GPS, CMM3, or CMM4

QUALITY OF SERVICE: Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Addr,Broadcast, Multicast and Station Priority

LINK BUDGET

• ANTENNA Sector Antenna with 90° 3dB beam width available
• TRANSMIT POWER RANGE -17 to +30 dBm (combined, to regional EIRP limit) (1 dB CONNECTION: 50 ohm, RP (Reverse Polarity) SMA
• SURGE SUPPRESSION: 1 Joule Integrated
• ENVIRONMENTAL: IP55
• TEMPERATURE -22°F to +140°F-(30°C to +60°C)
• WEIGHT: 10 lbs(5.1 kg) with antenna1.1 lbs(0.52 kg) without antenna
• WIND SURVIVAL: 120 mi/hour(200 km/hour) with antenna
• DIMENSIONS: (H x W x D) Radio: 10.6 x 4.3 x 3.0"(26.9 x 11 x 7.7 cm) Antenna (incl brackets): 31.5 x 8.9 x 9.4"(80cm x 22.5cm x 24cm)
• POWER CONSUMPTION: (over 100m CAT5 cable) 10 W Maximum, 7.5 W Typical
• INPUT VOLTAGE: 23 to 56 V

SECURITY

• ENCRYPTION: 128-bit AES (CCMP 2.4 GHz: Z8H89FT0012 / 5 GHz : Z8H89FT0012
• INDUSTRY CANADA CERT: 2.4 GHz: 109W-0012 / 5 GHz : 109W-0012
• CE: 5 GHz: EN 302 502 v1.2.1
• 5 GHz: EN 301 893 v1.7.1
