Description:

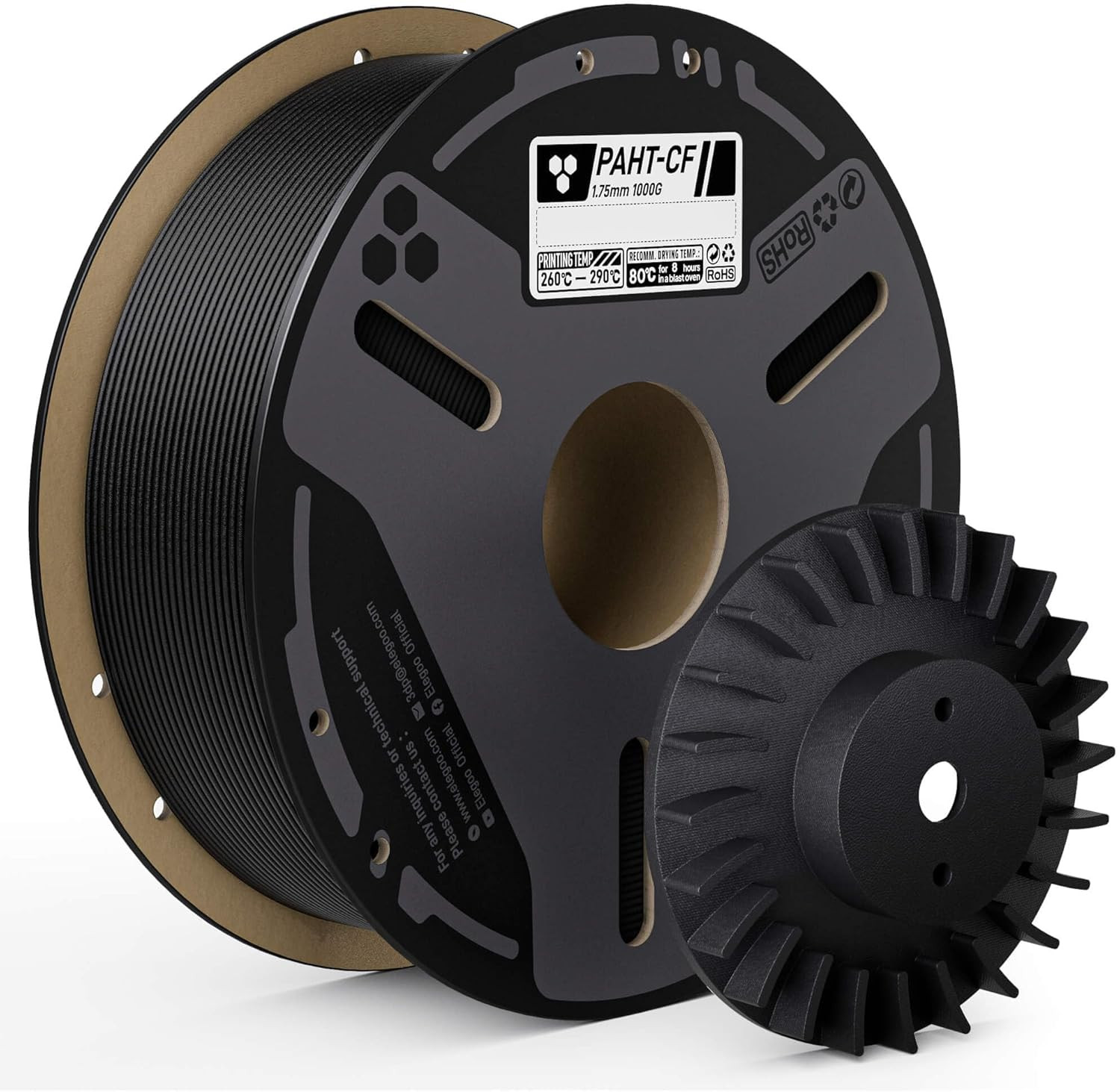

Elevate your 3D printing projects with the ELEGOO Carbon Fiber PAHT Filament. This 1.75mm filament is engineered for high-performance printing, offering superior heat resistance, enhanced mechanical properties, and excellent dimensional accuracy. With its low water absorption and abrasion resistance, it's perfect for creating durable, high-strength parts like gears, bearings, and structural components.

Key Features:

• Superior Heat Resistance
  • Capable of withstanding ambient temperatures up to 194°C, this filament retains its structural strength, making it ideal for high-temperature environments.
• Low Water Absorption
  • Unlike standard PA-CF filaments, ELEGOO PAHT-CF filament offers a significantly lower water absorption rate, ensuring consistent print performance and reducing the risk of print failures.
• Excellent Mechanical Properties
  • The integration of carbon fibers increases the strength and rigidity of the filament, offering improved interlaminar adhesion for creating robust, durable objects.
• Abrasion Resistance & Dimensional Accuracy
  • With carbon fiber reinforcement, this filament excels in abrasion resistance, making it suitable for parts like gears and bearings that require both durability and a precise fit.
• Compatibility
  • This filament is universally compatible with most enclosed 1.75mm FDM 3D printers. For optimal results, use a hardened steel nozzle with a diameter of at least 0.4mm. The recommended print temperature is between 260-300°C, and the heated bed should be set to 100-120°C.
• Recommended Printing Settings
  • Nozzle Temperature: 260-300°C
  • Bed Temperature: 100-120°C
  • Recommended Nozzle Size: ≥ 0.4mm
  • Printing Speed: 50-100mm/s (adjustable based on model complexity)

Applications:

• Ideal for printing durable parts such as gears, mechanical components, and structural elements that require high strength and rigidity.
• Perfect for prototyping and creating functional parts with advanced mechanical properties, suitable for engineering applications, automotive parts, and industrial models.

Package Includes:

• 1 x Carbon Fiber PAHT 1.75mm Filament Spool (1KG)
