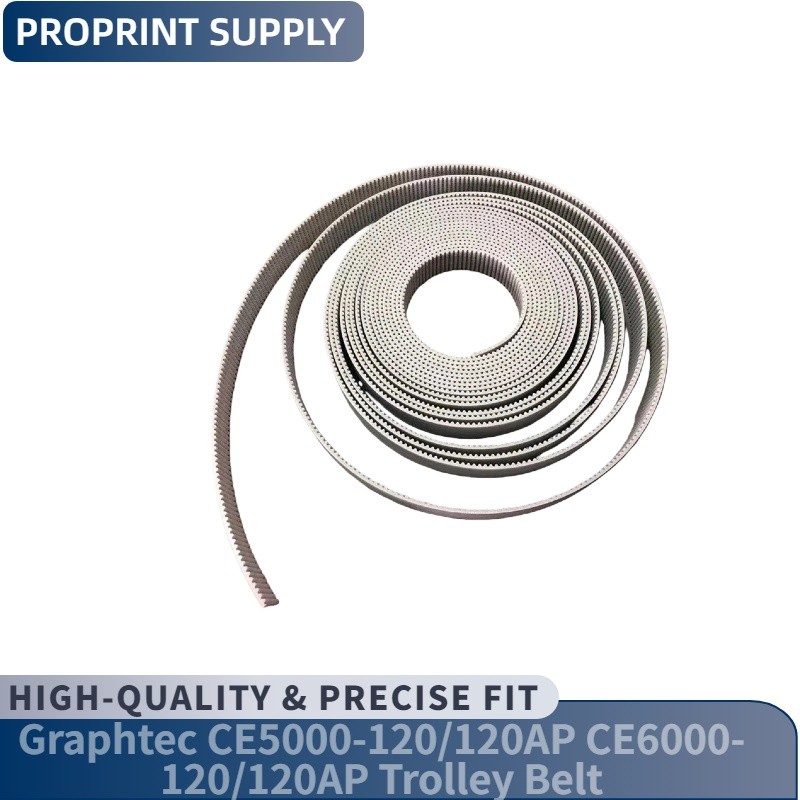

Carriage Long Belt for Graphtec CE5000-120/120AP CE6000-120/120AP Trolley Belt 🛠️ GRAPHTEC CARRIAGE LONG BELT | MOQ: 1 PC | Fits CE5000-120/120AP & CE6000-120/120AP ⚠️ NEW CARRIAGE LONG BELT FOR GRAPHTEC: | FITS CE5000-120/120AP/CE6000-120/120AP + BRAND NEW + HIGH DURABILITY + MOQ 1 PC!
Product name : Carriage long belt
Printer Model : For Graphtec CE5000-120 CE5000-120AP CE6000-120 CE6000-120AP
Feature : Brand new
MOQ : 1 pc
Carriage Long Belt for Graphtec CE5000-120/120AP CE6000-120/120AP Trolley Belt
The Brand New Carriage Long Belt is a high-performance replacement part specifically engineered for Graphtec CE5000-120, CE5000-120AP, CE6000-120 and CE6000-120AP vinyl cutters. As a critical component of the plotter's carriage/trolley system, this precision-manufactured belt ensures smooth, accurate movement of the cutting carriage, maintaining the tight positional tolerance (0.1mm) required for high-quality vinyl cutting. Manufactured with high-grade rubber and reinforced polyester core, our brand new carriage long belt delivers exceptional wear resistance and tensile strength – perfect for replacing worn, stretched or cracked OEM belts that cause carriage jamming, uneven cutting or positioning errors. With a minimum order quantity (MOQ) of just 1 piece, it is ideal for both individual users and small repair shops needing a quick, reliable replacement.
⚠️ Common Issues with Worn Carriage Long Belts:
- Stretched belt: Causes carriage positioning errors (0.5mm+ deviation)
- Cracked/worn surface: Results in jamming, uneven cutting and media waste
- Low tensile strength: Breaks during operation (unexpected downtime)
- Non-OEM fit: Causes noise, vibration and premature motor wear
✅ Solution: Brand New Carriage Long Belt for Graphtec CE5000/CE6000 – restores factory-spec carriage movement, eliminates all these issues!
🔧 Carriage Long Belt Specifications
Material: High-Grade Nitrile Rubber (NBR) + Polyester Core
Condition: Brand New (100% Unused)
Thickness: 1.5mm (OEM Standard)
Width: 15mm (Fits CE5000/CE6000 Carriage)
Length: Custom Cut for CE5000-120/CE6000-120
🔩 Performance & Durability
Tensile Strength: 500N (Resists Stretching)
Wear Resistance: 100,000+ Cycles (Normal Use)
Operating Temperature: -10°C to +60°C
Elongation at Break: ≤5% (Minimal Stretch)
Compatibility: 100% OEM Fit (No Modifications)
🔌 Compatible Graphtec Plotter Models (100% FIT)
- Graphtec CE5000-120 Vinyl Cutter
- Graphtec CE5000-120AP Vinyl Cutter
- Graphtec CE6000-120 Vinyl Cutter
- Graphtec CE6000-120AP Vinyl Cutter
- Only for Graphtec CE5000/CE6000 120/120AP Models (No Other Sizes)
💡 Note: This is a precision-cut carriage long belt – direct replacement for factory-installed belts, no trimming or adjustment required!
📊 Brand New Carriage Belt vs Worn/OEM Belt Comparison Feature Our Brand New Carriage Belt Worn OEM Belt Generic Replacement Belt Condition 100% Brand New Stretched/Worn Low-Grade Material Tensile Strength 500N ≤200N ≤300N Positioning Accuracy 0.1mm Tolerance 0.5mm+ Deviation 0.3mm+ Deviation Service Life 100,000+ Cycles ≤10,000 Cycles ≤50,000 Cycles Fit Precision 100% OEM Fit Loose (Stretched) Loose/Tight Fit MOQ 1 PC N/A 10+ PCs 📦 Package Contents of Graphtec Carriage Long Belt
- ✔ 1 × Brand New Graphtec Carriage Long Belt (For CE5000/CE6000-120/120AP)
📦 Minimum Order Quantity (MOQ) - Flexible Purchase Options
- ✅ MOQ: 1 Piece – Ideal for individual users, small repair shops or emergency replacements (no need to buy in bulk).
- ✅ Single Piece Pricing – Competitive price for single belt purchases (no bulk markup).
- ✅ Fast Shipping for 1 PC Orders – Same-day dispatch for in-stock belts (delivery in 3-5 business days for EU/USA/CA/AU).
- ✅ Combined Shipping – Combine with other Graphtec parts (blades, mats, rollers) for single shipping cost (even for 1 PC belt).
🔧 Installation Guide for Graphtec Carriage Long Belt
- Safety Preparation: Power off the Graphtec CE5000/CE6000 plotter and unplug power cord – move the carriage to the center position for easy access.
- Remove Side Covers: Use a Phillips screwdriver to remove the left/right side covers of the plotter – expose the belt pulley system (refer to equipment manual).
- Release Old Belt: Loosen the tension roller screw (1 turn) – release tension from the worn carriage long belt, then carefully remove it from the pulleys and carriage.
- Clean Pulleys: Wipe the drive pulleys and tension rollers with the included lint-free cloth – remove dust/debris (apply a thin layer of silicone lubricant).
- Install New Belt: Unfold the brand new carriage long belt – thread it around the drive pulleys and attach it to the carriage (align with OEM mounting points).
- Adjust Tension: Tighten the tension roller screw until the belt has 1-2mm deflection when pressed (OEM recommended tension) – do not over-tighten (causes premature wear).
- Test Movement: Manually move the carriage along the full length of the belt – confirm smooth movement with no binding or noise.
- Reinstall Covers: Replace the side covers and tighten all screws – ensure no interference with belt/carriage movement.
- Function Test: Power on the plotter – run a test cut (small vinyl piece) – confirm accurate positioning and smooth carriage movement.
📌 Maintenance Tips for Graphtec Carriage Long Belt
- ⚠️ LUBRICATION: Apply a thin layer of included silicone lubricant every 10,000 cycles – do not use oil-based lubricants (attract dust).
- ✅ CLEANING: Clean the belt surface with the included lint-free cloth – remove dust/debris (clean every 5,000 cycles) (no harsh chemicals).
- ✅ TENSION CHECK: Check belt tension every 20,000 cycles – adjust if deflection exceeds 2mm (prevents stretching and positioning errors).
- ✅ STORAGE: Store spare belts in the included protective bag – keep in dry environment (15-25°C) (prevents rubber aging).
- ✅ AVOID DAMAGE: Keep sharp objects away from the belt – cuts/scratches reduce tensile strength and service life.
🏢 Commercial Bulk Orders (Graphtec Carriage Long Belt)
- Volume discounts available from 10 belts – tiered discounts for 20/50/100+ belts (mix orders allowed, inquire via message).
- Bulk packaging option: Multiple belts in a reinforced carton box (shock-proof, dust-proof) – ideal for repair shops/distributors.
- Custom Order: Pre-cut belts for specific Graphtec models (minimum 5 belts per model) – simplifies inventory management.
- Just-in-Time Delivery: Coordinate delivery with your repair schedule – ensures fresh belts (≤3 months from production date) for every order.
- One-Stop Purchase: Combine with other Graphtec CE5000/CE6000 parts (blades, pinch rollers, cutting mats) – additional bulk discounts.
