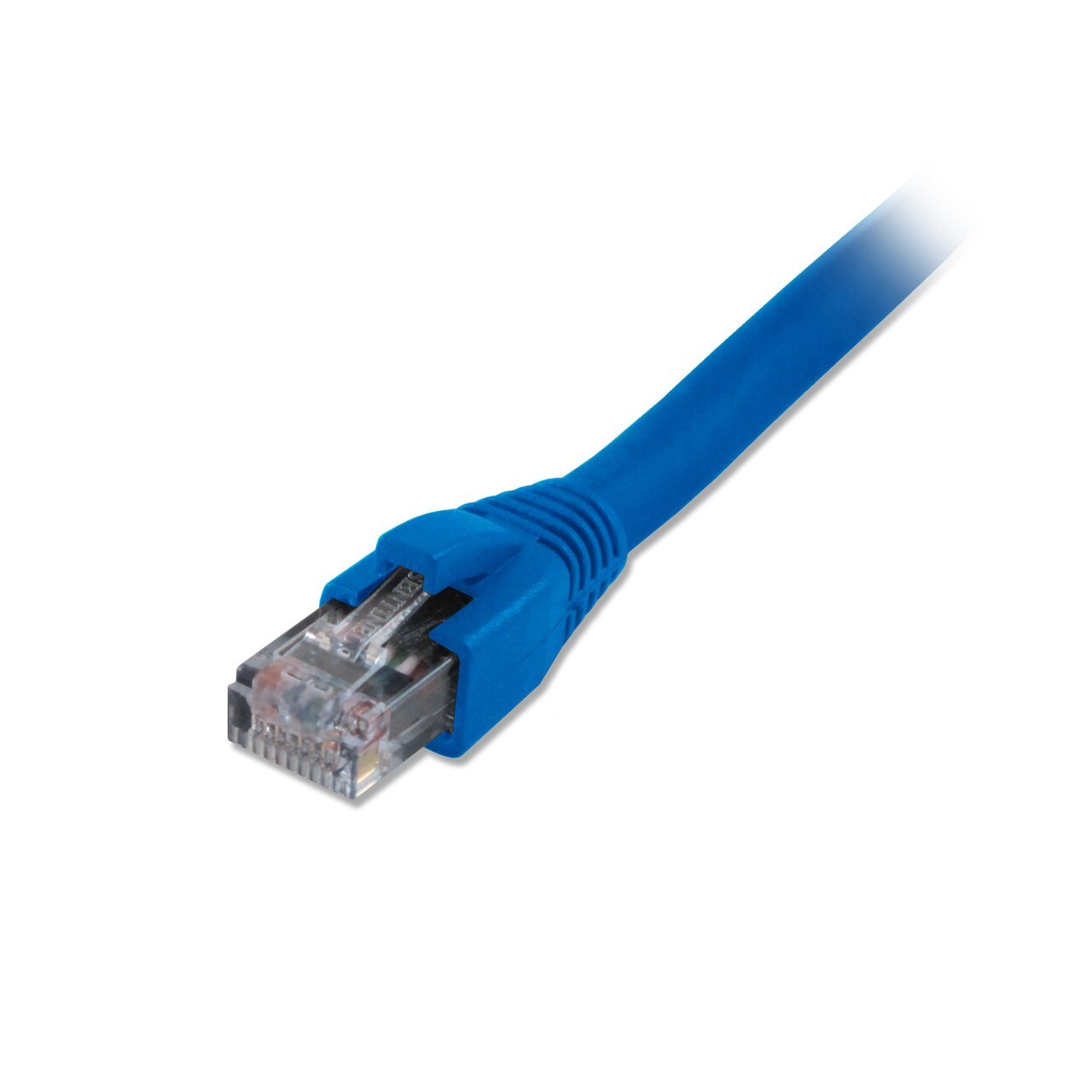

Cat6 Snagless Solid Plenum Shielded Patch Cable, Size: 50ft, Model: CAT6SHP-50BLU, Color: BlueFeatures - High-Performance Data Communications Cable for Noisy Environments
- Suitable for 550MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
- Category-6 Shielded Twisted Pair (FTP) Plenum Cable
- 4-Pair - Easily Identified Color-Striped Pairs
- 23AWG Solid Bare Copper Conductors
- Excellent Attenuation and Crosstalk Characteristics
- Exceeds EIA/TIA 568 B.2-1, UL, CSA and ISO/IEC 11801 specifications
- CMP/FT6 rated for use in walls and in ceiling
- UL/cUL or ETL Listed
- Comprehensive Lifetime Category 6 550MHz plenum shielded local area network cable utilizes 4 twisted pairs, an overall shield, plenum jacket, and solid 23 AWG construction.
Comprehensive's Category 6 Shielded 550MHz Plenum cable supports all category 6 applications including Ethernet 100BASE-TX, 100BASE-VG and 155 ATM. Particularly suited for high bandwidth applications such as 622 ATM, Wideband, and Ethernet 1000BASE-T. Comprehensive uses 23 AWG solid bare copper conductor insulated with FEP. Two colored mated insulated conductors twisted together to form a pair and four pairs assembled around a pair separator to form a core. The core is overall shielded and jacketed with a low smoke flame retardant PVC. Perfect for distributing data, voice, and video on today's high-speed Ethernet and Gigabit networks. Electrical Parameters: - Mutual Capacitance: 14 pF/ft nominal
- Capacitance Unbalance: 330 pF/ft maximum
- Velocity of Propagation: 72%
- Max. Conductor D.C.R.: 28.6 ohm/1000 feet
- Max. DCR Unbalance: 5%
- Max. Delay Skew: 45.0 ns/100m
- Characteristic Impedance: from 0.772 - 100 MHz 100 -15%, from 101 - 250 MHz 100 -22%
Technical Details: - Temperature Rating: Installation -0°C to 50°C, Operation -2°C to 60°C
- Nominal Diameter: 0.305 in.
- Nominal cable weight: 49 lb/1000 feet
- Jacket Color: Blue
Standards: - ANSI/TIA/EIA 568C.2 Category 6
- National Electric Code - Article 800
Codes & Listings: - NFPA 262 Plenum Flame Test, FT6
- ETL Electrically Verified to ANSI/TIA/EIA 568C.2 Category 6
- C(ETL)US CMP, FT6
- RoHS Compliant: Yes
|
|
