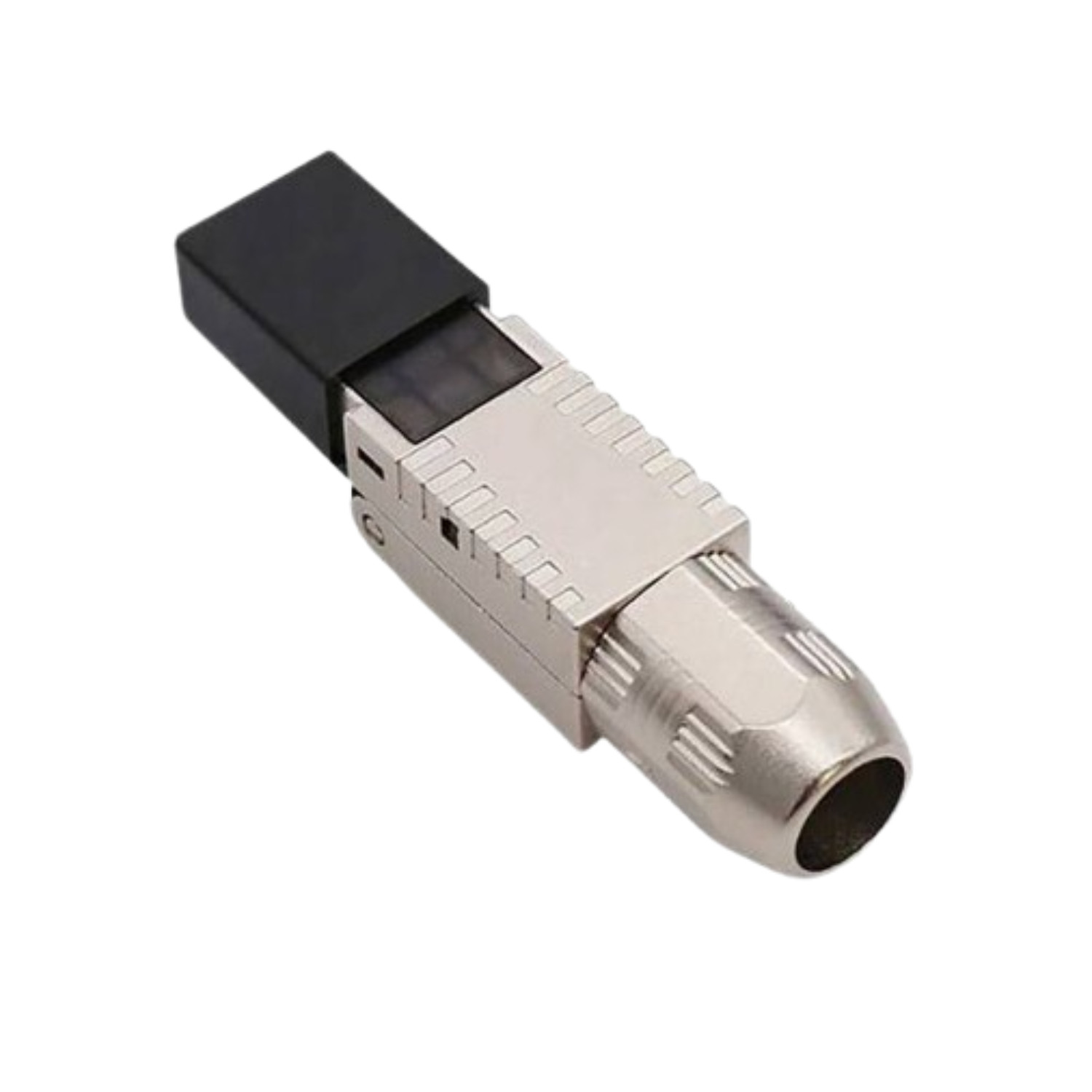

Cat8 Shielded Tool-Free RJ45 Field Termination Plug Connector - 1 Pack
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Cat8 Shielded Tool-Free RJ45 Field Termination Plug Connector - 1 Pack
Price: US $8.50
Cat8 Shielded Tool-Free RJ45 ConnectorThe Cat8 Shielded Tool-Free RJ45 Connector is designed for 40G networks, eliminating the need for a crimping tool for quick and easy installation. It features a reusable zinc alloy 360-degree shielded housing with an IP20 waterproof rating and corrosion-resistant properties. The 50μ gold-plated three-pronged contact ensures reliable connectivity, while the integrated PCB board enhances network speed and reduces latency. Comes with a waterproof and dustproof sleeve for added durability.
  • 40G Cat8 Performance– Supports ausable bandwidth of 600MHz+for high-speed networking
  • Tool-Free Installation– No crimping tool required, making setup fast and hassle-free
  • Universal Compatibility– SupportsT568A & T568B wiring sequences, with clear labels for easy termination
  • Durable Construction– Zinc alloy360° shielded housingwithIP20 waterproof ratingfor long-lasting use
  • Enhanced Connection Stability– IntegratedPCB wiringreduces signal loss and interference
  • High-Quality Materials– IDC wire clamps made ofphosphor bronze, Contacts–50μm gold-plated pinsrated for1000+ plug/unplug cycles
  • Backward Compatible– Works withCat7 and lowernetwork systems, protecting your investment
housing:Full shielded with zincalloywiring:T568A & T568Bperformance verified:C8 channelCable wire gauge:22AWG to 26AWGCable outer diameter:6.0 to 8.5mmExtractor:PC, UL 94V-2, BLUE color
HousingRJ45 Plug:PC, UL 94V-2, black colorContact material:Phosphor bronze with 100micro-inch nickel platedContact finish:Min. 50 micro-inch gold platedon surface contact areaCover:Zinc die-casting with nickelplatedWire management bar :PC+glass fiber, white color,UL94-V2
IDCHousing:PC, WHITE color, UL94-V2Terminal:copper with tin platedGrounding contact :Zinc die-casting with nickelplated
BOOTHousing:Zinc die-casting with nickelplatedSR:PC, UL 94V-2, black colorCAP:PC, UL 94V-2, black colorPCB, UL 94-V0.Copper foil tape.
Physical CharacteristicsINSERTION FORCE:30N max. (IEC 60603-7)RETENTION STRENGTH:7.7 kg between Jack and PlugOPERATING TEMPERATURE:-10°C to 60°C (ISO/IEC 11801,ANSI/TIA/EIA568 2-D)
Life (Mating Cycles)JACK:750 cycles min. (ISO/IEC11801, IEC 60603-7-5)IDC:Suitable for 22-24AWG strandedand solid wire, min . 20 installation cyclesSUITABLE FOR CABLE JACKET OD:7.0-8.5mm
