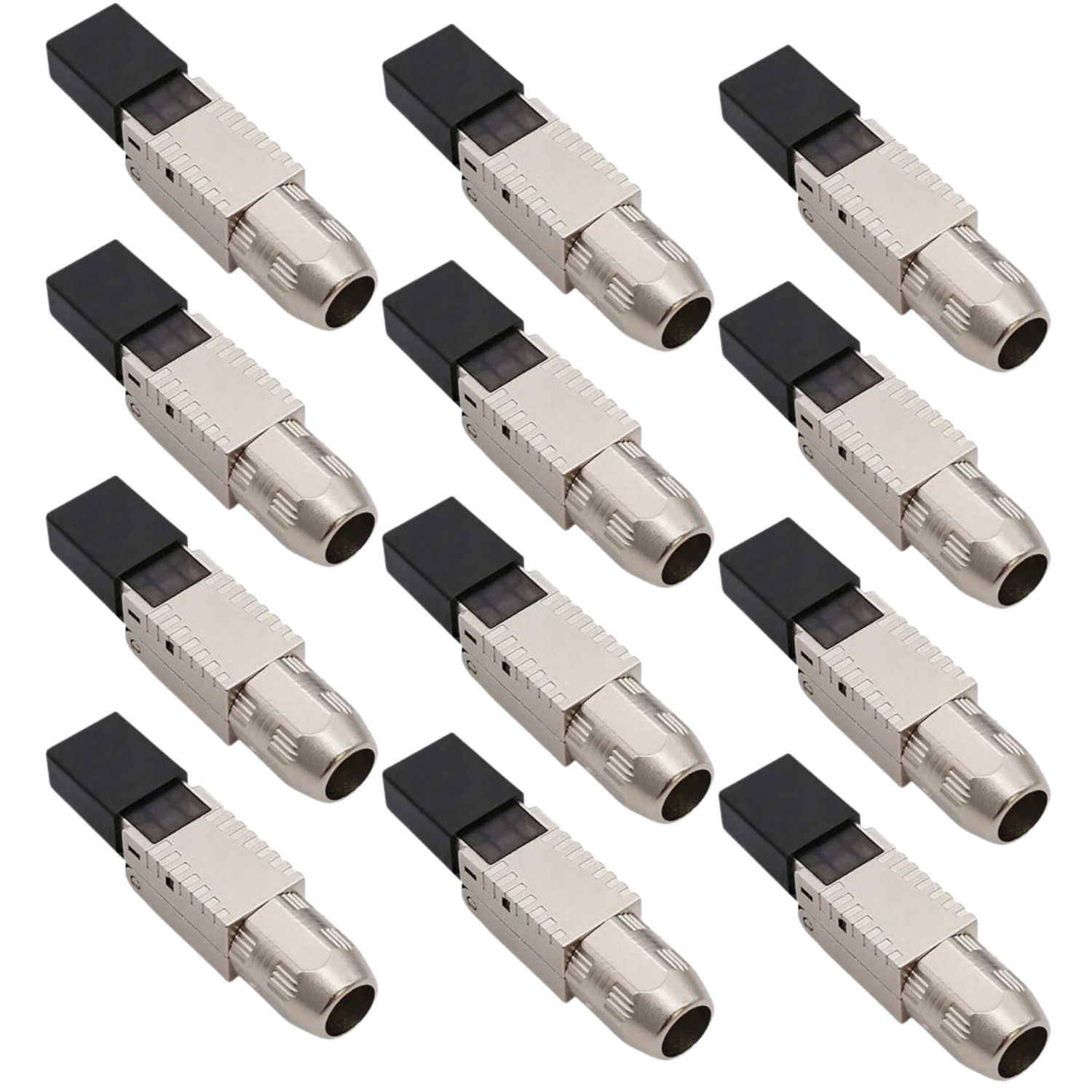

Cat8 Shielded Tool-Free RJ45 ConnectorThe Cat8 Shielded Tool-Free RJ45 Connector is designed for 40G networks, eliminating the need for a crimping tool for quick and easy installation. It features a reusable zinc alloy 360-degree shielded housing with an IP20 waterproof rating and corrosion-resistant properties. The 50μ gold-plated three-pronged contact ensures reliable connectivity, while the integrated PCB board enhances network speed and reduces latency. Comes with a waterproof and dustproof sleeve for added durability.
- 40G Cat8 Performance – Supports a usable bandwidth of 600MHz+ for high-speed networking
- Tool-Free Installation – No crimping tool required, making setup fast and hassle-free
- Universal Compatibility – Supports T568A & T568B wiring sequences, with clear labels for easy termination
- Durable Construction – Zinc alloy 360° shielded housing with IP20 waterproof rating for long-lasting use
- Enhanced Connection Stability – Integrated PCB wiring reduces signal loss and interference
- High-Quality Materials – IDC wire clamps made of phosphor bronze, supporting 22-26AWG cables
- Gold-Plated Contacts – 50μm gold-plated pins rated for 1000+ plug/unplug cycles
- Backward Compatible – Works with Cat7 and lower network systems, protecting your investment
housing:Full shielded with zincalloywiring:T568A & T568Bperformance verified:C8 channelCable wire gauge:22AWG to 26AWGCable outer diameter:6.0 to 8.5mmExtractor:PC, UL 94V-2, BLUE color
HousingRJ45 Plug:PC, UL 94V-2, black colorContact material:Phosphor bronze with 100micro-inch nickel platedContact finish:Min. 50 micro-inch gold platedon surface contact areaCover:Zinc die-casting with nickelplatedWire management bar :PC+glass fiber, white color,UL94-V2
IDCHousing:PC, WHITE color, UL94-V2Terminal:copper with tin platedGrounding contact :Zinc die-casting with nickelplated
BOOTHousing:Zinc die-casting with nickelplatedSR:PC, UL 94V-2, black colorCAP:PC, UL 94V-2, black colorPCB, UL 94-V0.Copper foil tape.
Physical CharacteristicsINSERTION FORCE:30N max. (IEC 60603-7)RETENTION STRENGTH:7.7 kg between Jack and PlugOPERATING TEMPERATURE:-10°C to 60°C (ISO/IEC 11801,ANSI/TIA/EIA568 2-D)
Life (Mating Cycles)JACK:750 cycles min. (ISO/IEC11801, IEC 60603-7-5)IDC:Suitable for 22-24AWG strandedand solid wire, min . 20 installation cyclesSUITABLE FOR CABLE JACKET OD:7.0-8.5mm
