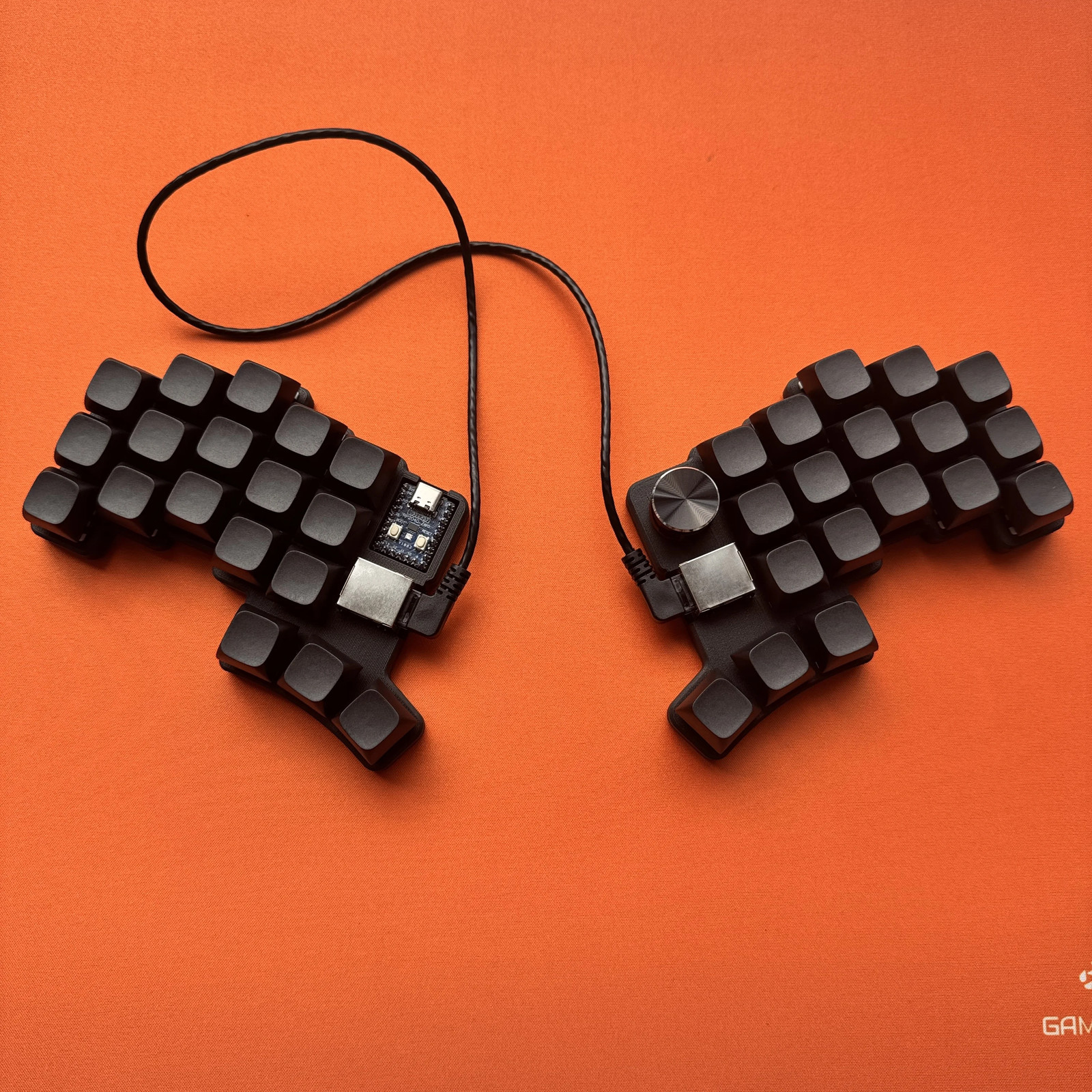

⌨️ Cheapino V2 Split Mechanical Keyboard
Ergonomic Design That Won't Break the Bank
✨ Key Features🎯 Compact 36-Key Layout
All keys within easy reach - no finger stretching required. Perfect ergonomic design for comfortable typing.
🔄 Rotary Encoder
Handy rotary control knob for quick volume adjustments and custom functions.
🔌 Reliable RJ45 Connection
Safe, stable connection between keyboard halves using CAT6 cable (included). No risk of controller damage.
🛠️ Hot-Swappable Switches
Easily swap mechanical switches without soldering. Compatible with MX-style switches.
⚙️ QMK/Vial Firmware
Fully programmable with QMK firmware. Live remapping support with Vial for ultimate customization.
🔧 Screwless Design
Bottom cover snaps on and off with ease for quick access and modifications.
📊 Technical SpecificationsMicrocontrollerRP2040 Zero with 2MB FlashCase MaterialFDM 3D Printed Matte PLALayout36-Key Split (3x5 + 3 thumb keys per side)Connection TypeWired USB-CSplit ConnectionRJ45 (0.5m CAT6 cable included)Switch CompatibilityMX Hot-Swap SocketsFirmwareQMK/Vial CompatibleKeycap ProfileXDA (Complete Kit Only)Available ColorsBlack, White, Red, Pink, Blue📦 What's Included
Bare Kit Option: Pre-soldered and assembled keyboard halves ready for your own switches and keycaps. Includes RJ45 cable and rotary encoder.
Complete Kit Option: Fully assembled and tested keyboard with Gray Wood V4 switches and XDA profile keycaps. Includes RJ45 cable.
🖼️ Product Imagesℹ️ Important Notes
3D Printed Case: Due to FDM 3D printing technology, visible layer lines and minor surface imperfections are normal. Slight variations between units are expected.
Open Source Design: Based on the Cheapino keyboard designed by tompi. Full documentation and firmware available on GitHub.
❓ Frequently Asked QuestionsQ: Can I customize the keycap legends?
A: Yes! Contact us for custom printed keycaps with your preferred legends.
Q: What switches are compatible?
A: Any MX-style mechanical switches (Cherry MX, Gateron, Kailh, etc.) work with the hot-swap sockets.
Q: Is this beginner-friendly?
A: The complete kit is ready to use out of the box. The bare kit requires installing your own switches and keycaps (no soldering needed).
Q: Does it work with Mac/Linux?
A: Yes! QMK firmware is compatible with Windows, Mac, and Linux operating systems.
