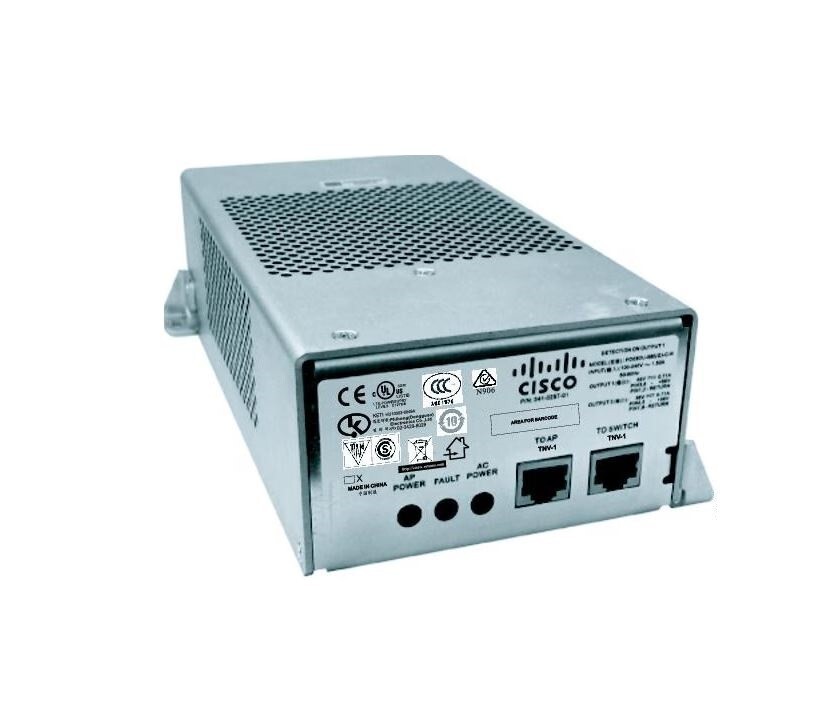

Cisco 1520 Series AIR-PWRINJ1500-2 Power over Ethernet (PoE) Injector

Click here to see more other items

-We have a team of kind and friendly resources readily available to address any common questions you may have.

- The product is new, damaged box.

About this item

This document describes the Cisco Aironet Series Access Point Power Injector AIR-PWRINJ1500-2= (referred to as the power injector in this document) and provides instructions for mounting it. The power injector increases wireless LAN deployment flexibility of the access point by combining 56-VDC power with the data signal, and sending both to the connected access point.Features

• Input voltage: 100 to 240 VAC
• Output voltage: 56.0 VDC
• Voltage range tolerance: 54 VDC to 57 VDC
• Maximum current: 1.43 A
• No load current: 15 mA
• Output 1 voltage and current
• [email protected]
• Pin 3, 6—+56VDC
• Pin 1, 2—Return
• Output 2 voltage and current
• [email protected]
• Pin 4, 5—+56VDC
• Pin 7, 8—Return
• Operating temperature: -40 to 131 degrees F (-40 to 55 degrees C)
• Storage temperature: -58 to 185 degrees F (-50 to 85 degrees C)
• Operating humidity: 10% to 90% non-condensing
• Storage humidity: 10% to 95% non-condensing
• Length: 8 in.(20.3 cm)
• Width: 4.25 in.(10.8 cm)
• Height: 2.5 in. (6.3 cm)
