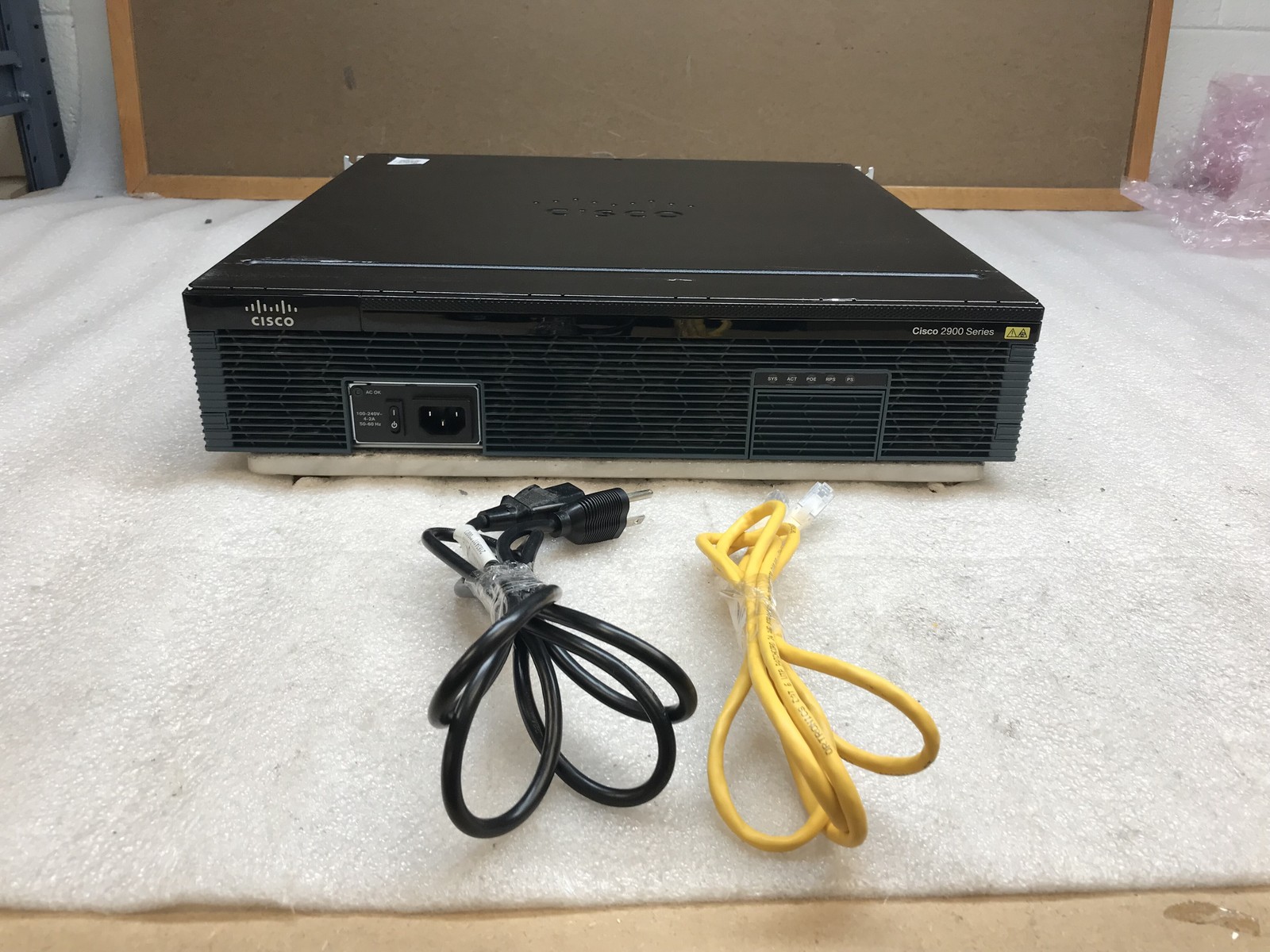

Listing Grid template example Product Photo Description Cisco 2951/K9 V06 ISR Router UCK9 PVDM3-96 4FXO 8FXS T1/E1 RACK EARS Cisco 2951/K9 V06 ISR Router UCK9 PVDM3-96 4FXO 8FXS T1/E1

The Cisco 2951/K9 V06 ISR Router offers robust performance and reliable connectivity for enterprise networks. Equipped with advanced modules and versatile interfaces, it supports extensive telephony and data services, making it ideal for integrating voice, video, and data CISCO2951/K9 V06

Integrated Services Router (ISR) Series

PVDM3-96 Digital Signal Processor Module

4 FXO (Foreign Exchange Office) Ports

8 FXS (Foreign Exchange Station) Ports

Supports T1/E1 WAN Interfaces

Modular WAN Interface Cards (VWIC2-2MFT-T1/E1)

Voice Interface Cards: VIC2-4XFO, 2x VIC3-4FXS/DID

Gigabit Ethernet Connectivity

Key Features

• Integrated voice and data services in a single platform
• Supports advanced voice features including conferencing and call recording
• High-performance hardware with modular expansion options
• Optimized for secure VPN and firewall capabilities
• Enhanced network reliability and uptime through redundancy options

Additional Information

Unit was console-tested and boots successfully to Cisco IOS. Previous user configuration has been erased, and the router is ready for new setup.

Installed software and licensing:

• Cisco IOS 15.6(M6)
• Universal K9 IOS image
• Permanent IP Base license
• Permanent UCK9 Unified Communications license
• CME/SRST Right-to-Use feature present
• 512 MB ECC DRAM
• 256 MB CompactFlash storage
• Three integrated Gigabit Ethernet interfaces

Installed voice hardware:

• PVDM3-32 DSP module
• PVDM3-64 DSP module
• 96 total G.711 DSP channels
• VWIC2-2MFT-T1/E1 dual-port T1/E1/PRI card
• VIC2-4FXO four-port FXO card
• Two VIC3-4FXS/DID four-port cards
• Eight total FXS/DID ports

All installed modules were detected by IOS. Both PVDM modules initialized successfully, and the FXO and FXS voice interfaces were recognized during testing. System, power supply, CompactFlash, and PVDM status indicators showed normal operation.

Configuration register has been restored for normal boot, and the startup configuration was cleared. No passwords, usernames, IP addressing, or previous customer configuration remain. Permanent licensing and IOS software were retained.

Important Notes

• Scratches and blemishes on unit Module
• VIC2-4XFO Module
• 2x VIC3-4FXS/DID Module
• Rack Ears
• Power Cable
• Ethernet Cable

Not Included

• User manual
• Original packaging

Specifications Functional Condition:
F3 - Key Functions Working

Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

Cosmetic Condition:
C4 - Used Good

Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

Data Sanitization:
S3 - Data Clear

Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22

Mpn
CISCO2951/K9 V06 Function Tests Powers On
Passed Physical Inspection
Passed Functions
Passed Buttons
Passed Factory Reset
Passed Shipping
