EXCLUDING MODULES

MISSING 1x REAR COVER

INCLUDING RACK MOUNTING EARS

EXCLUDING NETWORK CABLES

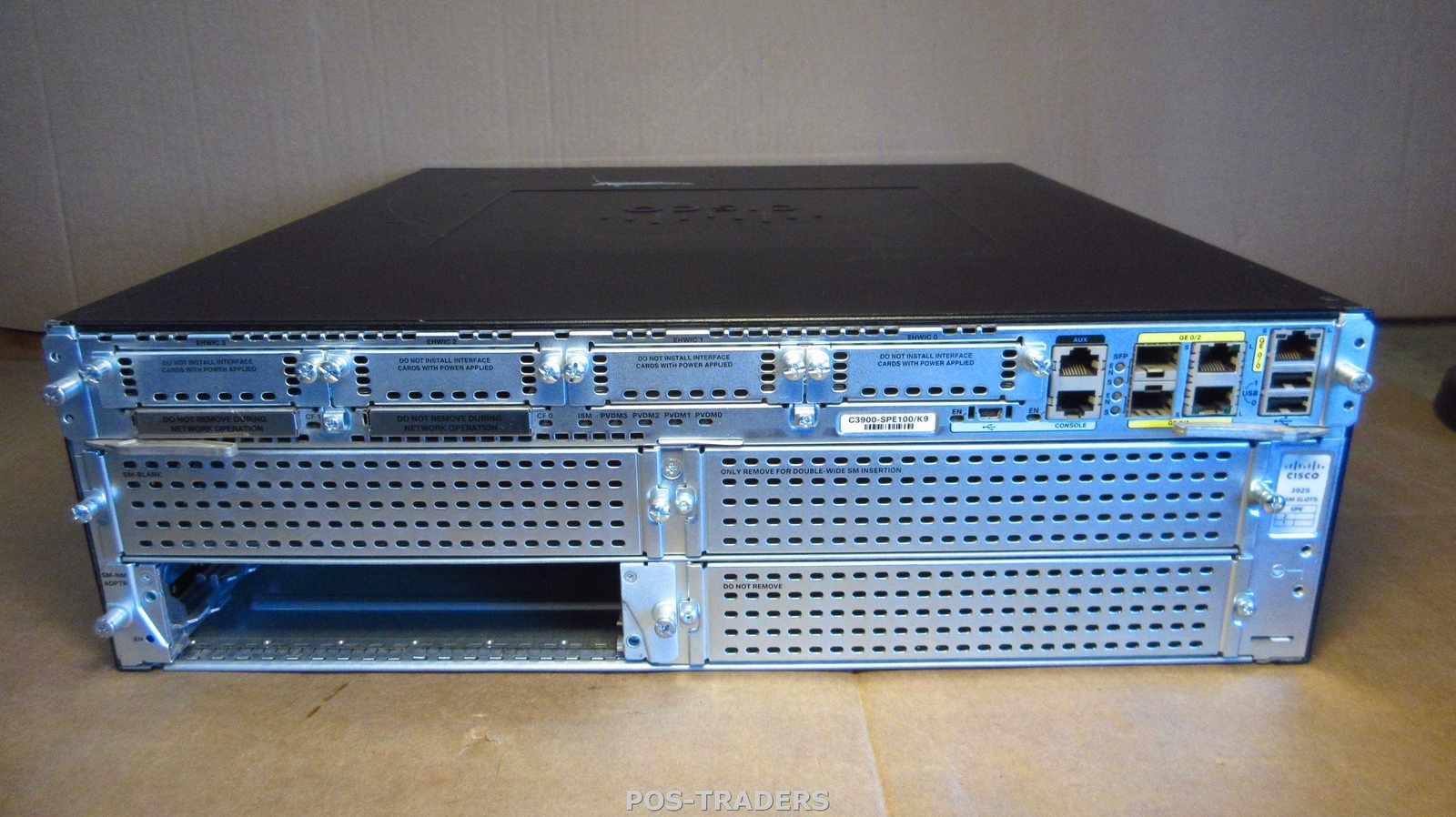

See photos for actual item!

Price is for 1 item.

The Cisco 3925 Integrated Services Router (ISR) delivers highly secure data, voice, video, and application services to small branch offices. Key features include:

• Modular Services Performance Engine (SPE) 100, which can be upgraded for even higher performance as next-generation WAN environments evolve
• 3 integrated 10/100/1000 Ethernet ports with 2 ports capable of RJ-45 or SFP connectivity
• 2 service module slots
• 4 Enhanced High-Speed WAN Interface Card (EHWIC) slots
• 4 onboard digital signal processor (DSP) slots
• 1 Internal Services Module slot
• Dual integrated power supplies
• Fully integrated power distribution to modules supporting 802.3af Power over Ethernet
• A universal IOS image that lets you deploy new IOS services quickly
• Security
  • Embedded hardware-accelerated VPN encryption for secure collaboration
  • Integrated threat control using Cisco IOS Firewall, Cisco IOS Zone-Based Firewall, Cisco IOS IPS, and Cisco IOS Content Filtering
  • Identity management using authentication, authorization, and accounting (AAA) and public key infrastructure
• Unified Communications
  • High-density-packet voice DSP module, optimized for voice and video support
  • Standards-certified VoiceXML browser services
  • Cisco Unified Border Element capabilities for up to 800 sessions
  • Cisco Unity Express voicemail support
  • Support for Cisco Communications Manager Express and Survivable Remote Site Telephony CISCO3925/K9 Specification

    General

    Manufacturer

    Cisco Systems, Inc

    Manufacturer Part Number

    CISCO3925/K9

    Product Type

    Router

    Form Factor

    Desktop - modular - 3U

    Connectivity Technology

    Wired

    Data Link Protocol

    Ethernet, Fast Ethernet, Gigabit Ethernet

    Capacity

    Cisco Unified Communications Manager Express sessions : 250 Cisco Unified SRST sessions : 730

    Network / Transport Protocol

    IPSec, PPPoE, L2TPv3

    Routing Protocol

    OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based

    routing (PBR)

    Remote Management Protocol

    SNMP, RMON

    Encryption Algorithm

    SSL

    Features

    Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing

    (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)

    Compliant Standards

    IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag

    DRAM Memory

    1 GB (installed) / 2 GB (max)

    Flash Memory

    256 MB (installed) / 8 GB (max)

    LED Status Lights Indicators

    Link activity, power

    Connectivity Slots

    Router Interfaces

    3 x 10Base-T/100Base-TX/1000Base-T - RJ-45
    Management : 1 x console - RJ-45
    Management : 1 x console - mini-USB Type B
    Serial : 1 x auxiliary - RJ-45
    Hi-Speed USB : 2 x 4 PIN USB Type A
    2 x SFP (mini-GBIC)

    Expansion Slots Total (Free)

    4 ( 4 ) x EHWIC
    4 ( 4 ) x PVDM
    2 ( 1 ) x CompactFlash Card
    1 ( 1 ) x Expansion Slot
    2 ( 2 ) x service module (SM)

    Power Supply

    Power Device

    Power supply - internal

    Voltage Required

    AC 120/230 V ( 47/63 Hz )

    Dimensions / Weight / Miscellaneous

    Dimensions (W × D × H)

    18.74 × 17.24 × 5.24 in (47.6 × 43.8 × 13.3 cm)

    Package Wight

    61.3 lbs (27.78 Kg)

    Weight

    39 lbs (17.7 kg)

    Compliant Standards

    CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A,

    CAN/CSA-E60065-00, ICES- 003 Class A, CS-03, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1,

    EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438

Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise
