These units arrive with a 1 year hardware warranty.

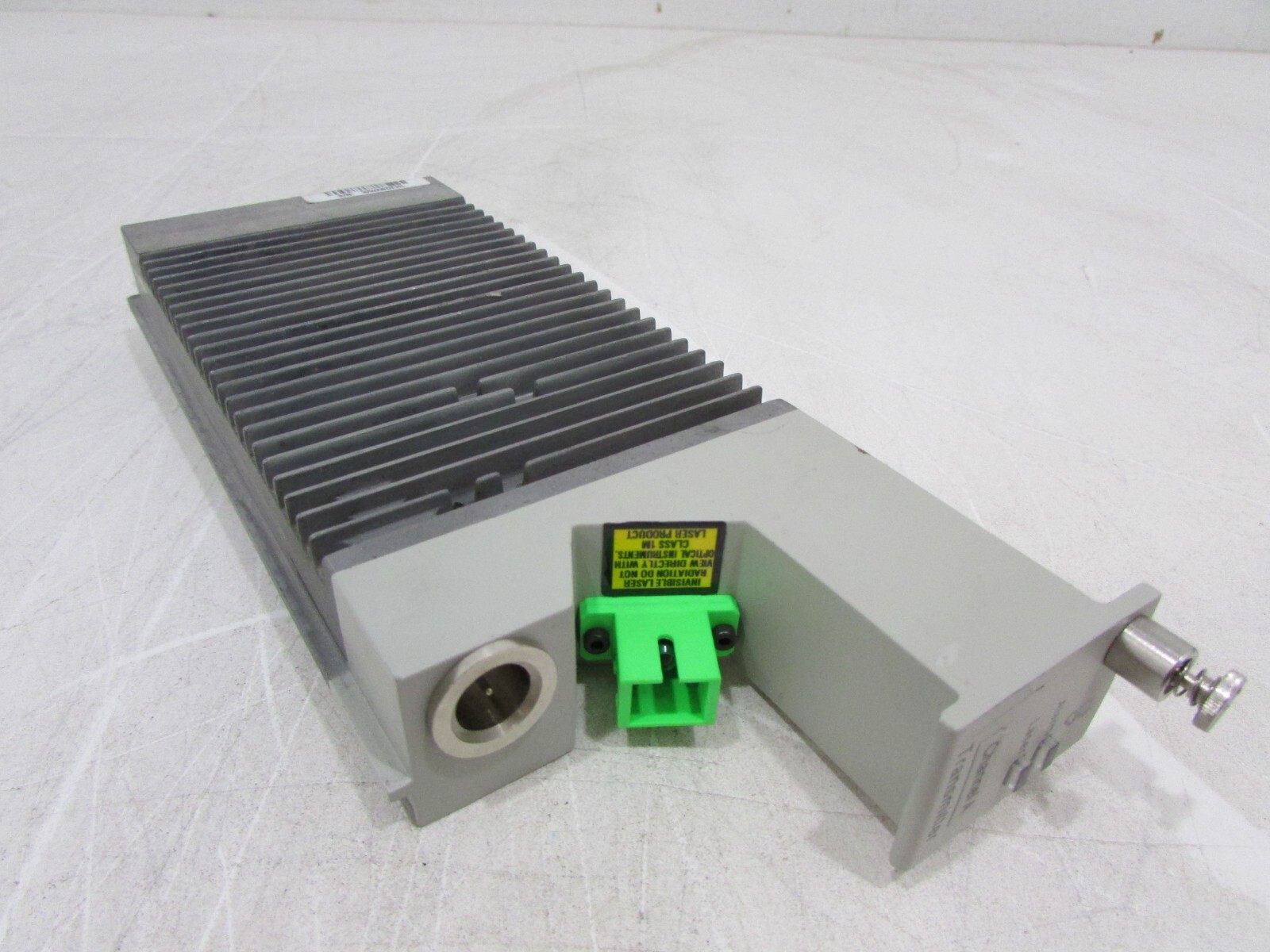

Cisco P2-HD-13TXM-08-SA-A - HD M-W Fwd Tx,1GHz,8dBm,SA,CH A
PN: 4021841
MSRP: $5,796.00
Cisco’s advanced Prisma II Multi-Wavelength High Density Transmitters (HDTx-M) andcomplementary O-band optical passives provide innovative and economical forward pathsegmentation solutions in areas with fiber count limitations. Multiple optical wavelengthscarrying differing content are multiplexed for transport on a common fiber and demultiplexed tofeed the segmented service areas. Optimal performance is achieved by making use of up to sixcarefully selected O-band optical wavelengths (channels). The transmitters are offered in arange of output powers from 4 dBm to 12 dBm to increase network design flexibility.
The HDTx-M transmitters may be used in either the new Prisma XD high density chassis or in thestandard Prisma II chassis*.
- When used in the 6 RU standard Prisma II chassis, a Host Module is used to interfacebetween the chassis and the high density transmitter (or receiver) modules. 2 high densitymodules occupy each single-wide host module. The Prisma II standard chassis canaccommodate up to 26 high density modules. High density modules can be mixed withother full- height PII modules in the chassis.
- When used in the 3 RU Prisma XD chassis, the high density modules plug directly into thechassis without host module. The Prisma XD chassis can accommodate up to 16 highdensity modules.
The HDTx-M transmitters have 1 GHz passband which greatly increases bandwidth for highdefinition TV and other advanced services. Microprocessor control allows ease of installation andflexibility of application.
