Cisco 7200 7206 VXR Router - Loaded w/ Enterprise IDS Firewall 3DES IOS 12.4.3 a.imagelink {color:#ffffff;} a:hover.imagelink {color:#ffffff;} a:visited.imagelink {color:#000000;} a.imagelink img.saleimage { border: 2px solid #ffffff; } a:visited.imagelink img.saleimage { border: 2px solid #000000; }

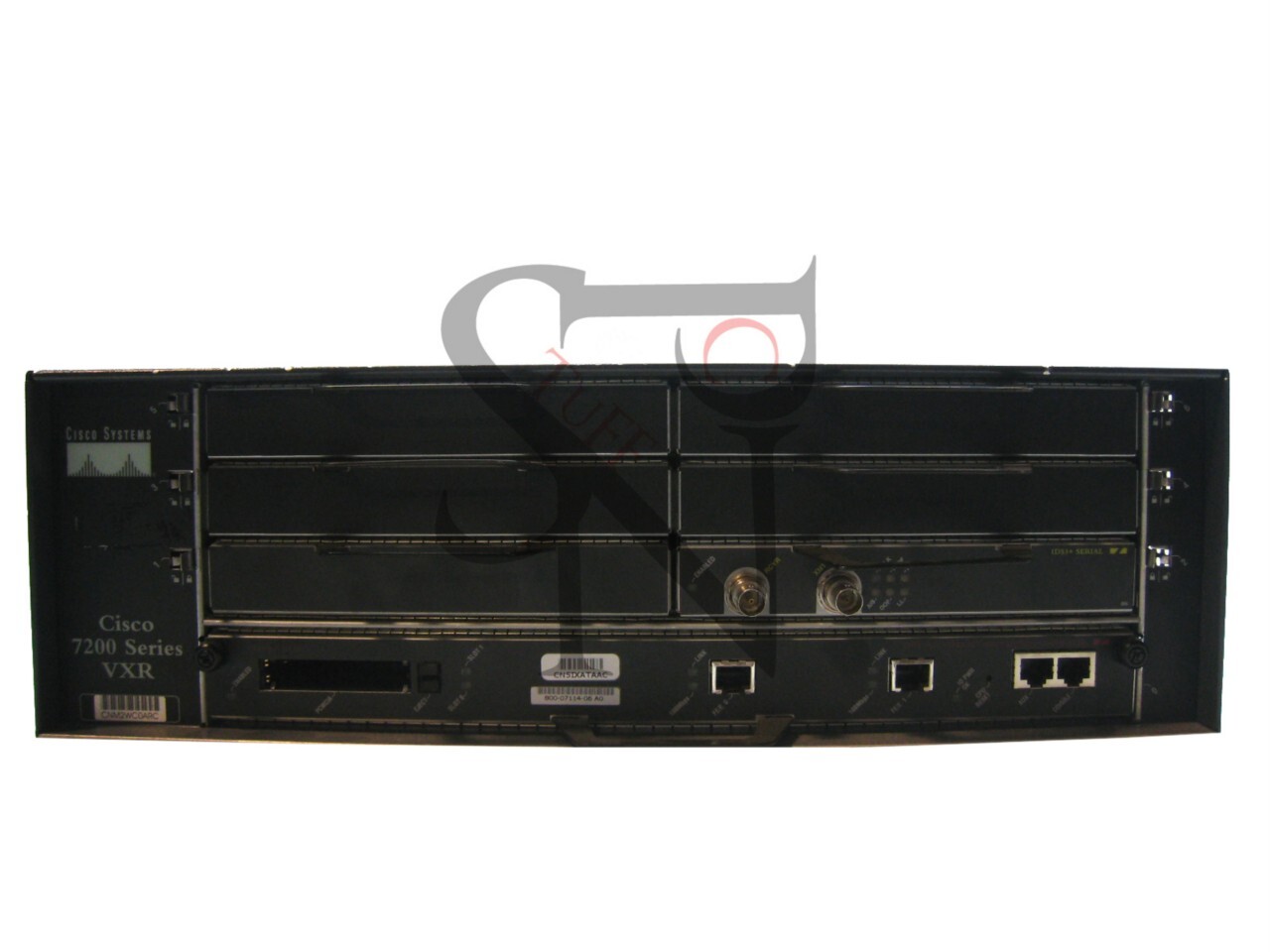

Cisco 7200 7206 VXR Router - Loaded w/ Enterprise IDS Firewall 3DES IOS 12.4.3

Up for sale is a Cisco 7200 7206 VXR Router - Loaded w/ Enterprise IDS Firewall 3DES IOS 12.4.3. This router has been pulled from a working environment, has been refurbished by a certified technician, and has the latest kboot firmware  / 12.4.3 ENTERPRISE IDS / FIREWALL / 3DES IOS installed and tested. Does not include rackmount ears.  If you purchase this unit with the "Buy-it-Now" option, we will throw in a 6' Power Cable.

This router has ONE power supply installed.

Included in sale:

• 1) Cisco 7200 VXR Router - Enterprise IDS/FW 3DES IOS
  • 1) IDS3+ Serial Card
  • 1) C7200-I/O-2FE/E Dual Fast Ethernet Controller Card
  • 1) NPE-400 128MB Management Controller
  • 1) Power Supply
  • 1) 48MEG PCMCIA FLASH CARD

Product Details:

With processing speeds up to 2 million packets per second, port- and service adapters ranging from NxDS0 to Gigabit Ethernet, and OC-3 as well as an unparalleled number of high-touch IP services, the Cisco 7200 VXR series is the ideal Services Aggregation WAN/MAN edge device for enterprises and service providers deploying any of the following solutions:

• WAN edge-Award-winning quality-of-service (QoS) feature performance
• Broadband aggregation-Up to 16,000 Point-to-Point Protocol (PPP) sessions per chassis
• Multiprotocol Label Switching provider edge (MPLS PE)-Number one choice for provider edge deployment today
• Voice/video/data integration-Time-division multiplexer (TDM)-enabled VXR chassis and voice port adapters
• IP-to-IP Gateway Support-Direct IP-interconnections
• IP Security virtual private networking (IPSec VPN)-Scalable to 5,000 tunnels per chassis
• High-End Customer Premises Equipment (CPE)-For managed WAN services saving equipment, transport and administrative cost
• The Cisco 7200 VXR addresses these solution requirements by integrating functions previously performed by separate devices into a single platform. Through this integration, the Cisco 7200 VXR provides a single, cost-effective platform that supports:
• High-density LAN and WAN interfaces
• Broadband subscriber services aggregation, including PPP, RFC 1483 termination, and Layer 2 Tunneling Protocol (L2TP) tunneling
• Digital T1/E1 TDM trunk termination for voice, video, and data
• High-density multichannel T3/E3 and T1/E1 with integrated channel service unit/data service unit (CSU/DSU)
• ATM and Packet over SONET (POS) connectivity
• ATM IMA (Inverse Multiplexing over ATM) for voice, video, and data
• Light-density Layer 2 Ethernet switching

Product Applications:

VPN Gateways-With the new VPN Service Acceleration Module (VSA), the Cisco 7200 VXR provides high-performance, hardware-assisted encryption, key generation, and compression services suitable for site-to-site VPN applications.

• Broadband subscriber aggregation services-For small- and medium-density aggregation for network operators, competitive local exchange carriers (CLECs), Internet service providers (ISPs), post, telephone, and telegraph networks (PTTs), and enterprises worldwide. Key features include:
• Flexible, modular interfaces for traffic aggregation: OC-3, Gigabit Ethernet, DS3, Fast Ethernet, Ethernet, POS
• IP and ATM QoS/class of service (CoS)
• MPLS VPN and full L2TP support
• Feature-rich IP services and PPP termination support
• Multiservice capabilities-The Cisco 7200 VXR Series provides a scalable voice gateway solution, ranging from 2 to 20 T1s and E1s. The advanced QoS and multiservice features of the Cisco 7200 VXR Series makes it an ideal platform in a large number of enterprise and service provider deployments as managed multiservice CPE or as a voice gateway.
• Managed network services CPE-The Cisco 7200 VXR is a cost-effective CPE solution with a field upgradable modular platform. Key features for revenue-generating services include QoS, MPLS (MPLS VPN, MPLS QoS, MPLS TE), WAN edge services (VLAN support, NetFlow, NBAR), Security services (NAT, ACL, hardware encryption for VPNs), and voice/video/data integration.
• Enterprise WAN aggregation-The Cisco 7200 VXR provides a flexible aggregation solution that accommodates a wide range of connectivity and service options, offers high quality and reliability, and can scale to meet future requirements. The Cisco 7200 VXR's performance per price ratio in the DS0 to OC-3/STM1 range makes it the ideal platform for aggregating multiple branch offices or remote locations.
• IP-to-IP Gateway Support-Direct IP-interconnections between VoIP networks lower costs, lower latency, improve voice quality, and offer greater flexibility to support emerging services when compared with public-switched telephone network (PSTN) or time-division multiplexing (TDM) interconnections.
• The Cisco Multiservice IP-to-IP Gateway provides a network-to-network interface point for:
  • Signaling interworking (H.323, SIP)
  • Media interworking (DTMF, fax, and modem)
  • Address and port translations (privacy and topology hiding)
  • Billing and CDR normalization
  • QoS and bandwidth management (QoS marking using TOS)

Product Specifications:

• Configurable Slots without Port Adapter Jacket Card: 6
• Configurable Slots with Port Adapter Jacket Card: 7
• Ethernet (10BASE-T) Ports: Up to 48
• Ethernet (10BASE-FL) Ports: Up to 30
• Fast Ethernet (TX) Ports: Up to 6
• Fast Ethernet (FX) Ports: Up to 6
• EtherSwitch Port Adapters: 2
• 100VG-AnyLAN PortsL Up to 6
• FDDI (FDX, HDX) Ports: 0
• ATM Ports (T3, OC-3): Up to 6, 4
• Packet over SONET: Up to 6
• Token Ring (FDX, HDX) Ports: Up to 24
• Synchronous Serial Ports: Up to 48
• ISDN BRI Ports (S/T): Up to 24, 48
• ISDN PRI, Multichannel T1/E1 Ports: Up to 48
• Multichannel T3 Ports: Up to 6
• HSSI Ports: Up to 12
• Packet over T3/E3 (Integrated DSU): Up to 14
• VPN Acceleration Module: Up to 1
• Chassis/Rack:
  • 16 with side-to-side air flow
  • 9 with RDS mounting system for front-to-back airflow
• I/O Card Slots: 1
• Port Adapter Slots: 6
• Midplane: 2 Independent 32-bit, 50-Mhz PCI buses with an aggregate bandwidth of 1.2Gbps when used with NPE-400.3 independent 32-bit, 50-Mhz PCI buses with an aggregate bandwidth of 1.8Gbps when used with NPE-G1 or NPE-G2
• Online Insertion and Removal (OIR): Yes
• Field-Replace Components: Processor, memory, power supply, I/O Card, and port adapters
• Additional Standard Components: AC Power Supply: AC Power Cord (Included with "Buy-it-Now" Option only)
