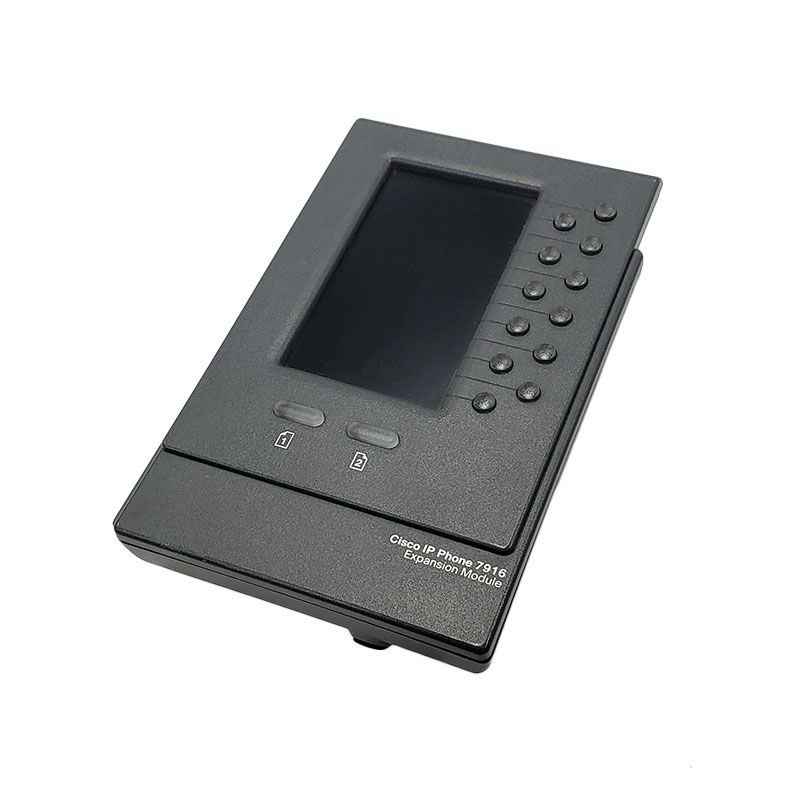

The Cisco Unified IP Phone Expansion Module 7916 extends the capabilities of the Cisco wideband audio IP phones with additional buttons and a color LCD display.

Cisco 7916 Features

480x272 color, backlit display

Adds 12 keys to the existing six on the 7962G and 7965G and the existing eight on the 7975G

Access 12 additional keys using the page keys for a total of 24

Can add up to two 7916 expansion units

Each of the buttons can be programmed as a directory number (DN), line key, or speed-dial key

Buttons are illuminated allowing easy identification of calls

Includes RS 232 connection cable

Does not include single or double footstand (see accessories below)

Compatibility

Compatible with 7962G, 7965G, and 7975G

Power requirements

Cisco IP Phone powered via Power over Ethernet (PoE) - With one or two 7916 expansion modules, a Cisco power cube is required (not included; see option above)

Cisco IP Phone powered by local power supply - With one 7916, no power supply needed. With two 7916's, a Cisco power cube is required (not included; see option above)

Includes

Cisco 7916

Interface cable
