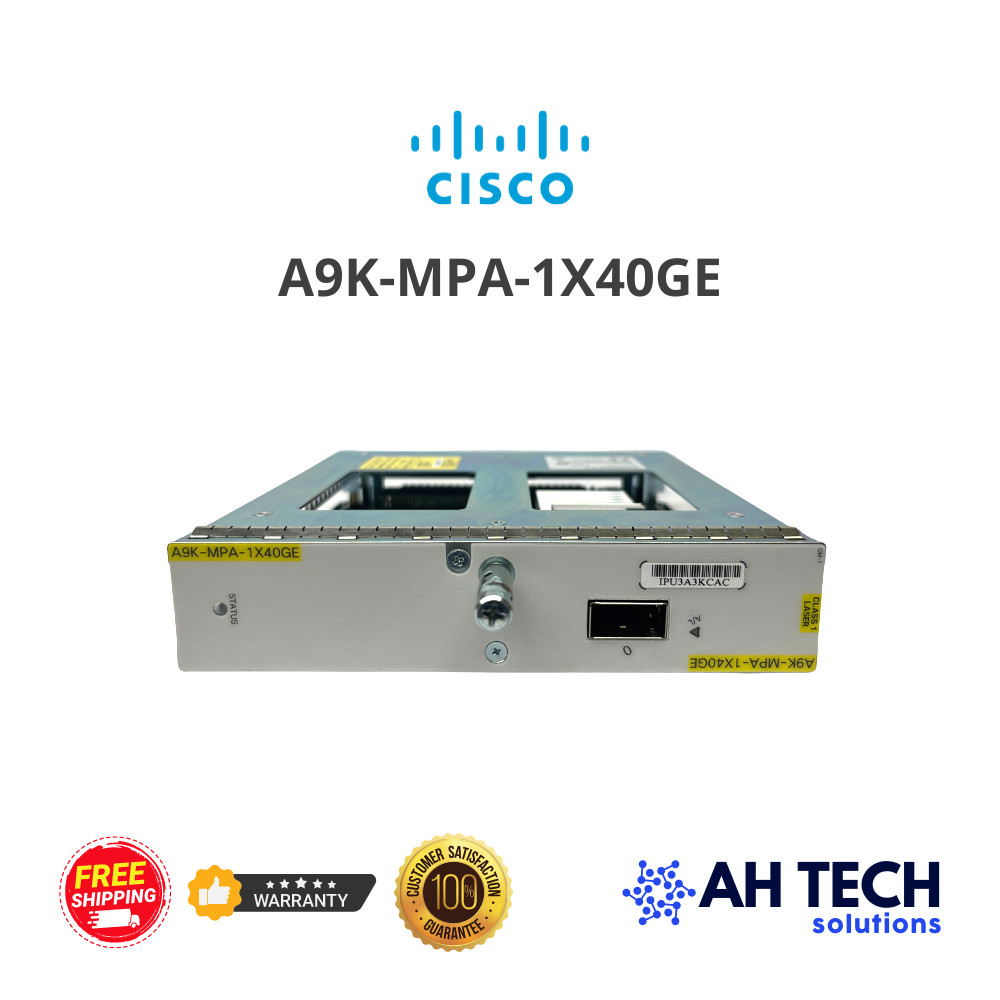

Cisco A9K-MPA-1X40GE ASR 9000 1-Port 40GE QSFP+ Modular Port Adapter RefurbishedProduct DetailsCisco A9K-MPA-1X40GE – ASR 9000 1-Port 40-Gigabit Ethernet Modular Port Adapter

The Cisco A9K-MPA-1X40GE is a 1-port 40-Gigabit Ethernet Modular Port Adapter (MPA) engineered for Cisco ASR 9000 Series Aggregation Services Routers. Designed for service provider core, edge, and aggregation networks, this MPA delivers line-rate 40Gbps throughput, ultra-low latency, and the investment protection that the ASR 9000 modular architecture is known for. It installs into MPA-capable line cards such as the A9K-MOD80 and A9K-MOD160, providing full Layer 2 and Layer 3 forwarding at wire speed. Running Cisco IOS XR, it supports a comprehensive set of carrier-grade features ideal for Metro Ethernet, data center interconnect (DCI), backbone, and IP/MPLS edge deployments.

Key Features & Benefits

• - 1 x 40GbE QSFP+ Port: Single high-speed 40-Gigabit Ethernet port using industry-standard QSFP+ interface. Supports Cisco-qualified transceivers including 40GBASE-SR4 (short-reach) and 40GBASE-LR4 (long-reach), as well as 4x10G breakout configurations for added flexibility.
• - Compatible with A9K-MOD80 and A9K-MOD160 Line Cards: Installs directly into either bay (bay 0 or bay 1) of ASR 9000 Series 80G and 160G modular line cards, enabling flexible port density expansion within existing ASR 9000 chassis infrastructure.
• - Line-Rate 40Gbps Forwarding: Delivers wire-speed performance with no throughput degradation even under full traffic load — critical for service provider environments running real-time video, IPTV, cloud services, and high-volume business traffic.
• - Hot-Swappable Design: Supports online insertion and removal (OIR) without requiring chassis shutdown or service interruption, minimizing downtime during upgrades and maintenance windows in carrier-grade environments.
• - Cisco IOS XR — Full SP Feature Set: Runs on Cisco IOS XR Software, supporting IPv4/IPv6 routing, MPLS, L2VPN, L3VPN, BGP, IS-IS, OSPF, traffic engineering, Hierarchical QoS (H-QoS), NetFlow, and offerirectional Forwarding Detection (BFD).
• - Jumbo Frame Support: Supports jumbo frames up to 9216 bytes, essential for data center interconnect, storage traffic, and high-performance enterprise backbone applications.
• - Carrier-Grade Reliability: Built to Cisco ASR 9000 carrier-class standards with hardware redundancy support, comprehensive system monitoring, and compatibility with Cisco IOS XR nonstop forwarding (NSF) and graceful restart capabilities.
• - Investment Protection: Part of the Cisco ASR 9000 MPA portfolio designed for long-term compatibility across the ASR 9000 modular chassis family — allows capacity upgrades without replacing existing line cards or Specifications
  Specification Details Model / Part NumberA9K-MPA-1X40GE BrandCisco Product TypeModular Port Adapter (MPA) Compatible PlatformCisco ASR 9000 Series (ASR 9006, 9010, 9904, 9906, 9910, 9912, 9922) Compatible Line CardsA9K-MOD80-SE, A9K-MOD80-TR, A9K-MOD160-SE, A9K-MOD160-TR Number of Ports1 x 40-Gigabit Ethernet Port InterfaceQSFP+ (Optics NOT included — sold separately) Supported Transceivers40GBASE-SR4, 40GBASE-LR4, 40GBASE-CSR4, QSFP+ breakout (4x10G) Throughput40 Gbps line-rate Jumbo Frame SupportUp to 9216 bytes Hot-SwappableYes — Online Insertion and Removal (OIR) Operating SystemCisco IOS XR Layer 2 FeaturesL2VPN, VPLS, EoMPLS, 802.1Q VLANs, QinQ, LACP Layer 3 FeaturesIPv4, IPv6, MPLS, L3VPN, BGP, OSPF, IS-IS, EIGRP, Static Routes Advanced FeaturesH-QoS, NetFlow, BFD, Traffic Engineering, NSF/Graceful Restart ForwardingHardware-based, distributed — via ASR 9000 line card network processor ConditionRefurbished Important Notes

  QSFP+ optics are NOT included and must be ordered separately. Ensure your ASR 9000 chassis has a compatible modular line card (A9K-MOD80 or A9K-MOD160 series) installed before ordering this MPA. This module requires Cisco IOS XR Software running on the host chassis.

  Condition

  This unit is Refurbished. All units are fully tested and verified for functionality prior to shipment. Meets carrier-grade performance standards.

  Official Datasheet

  Download the official Cisco ASR 9000 Series Modular Line Cards & MPA datasheet here
