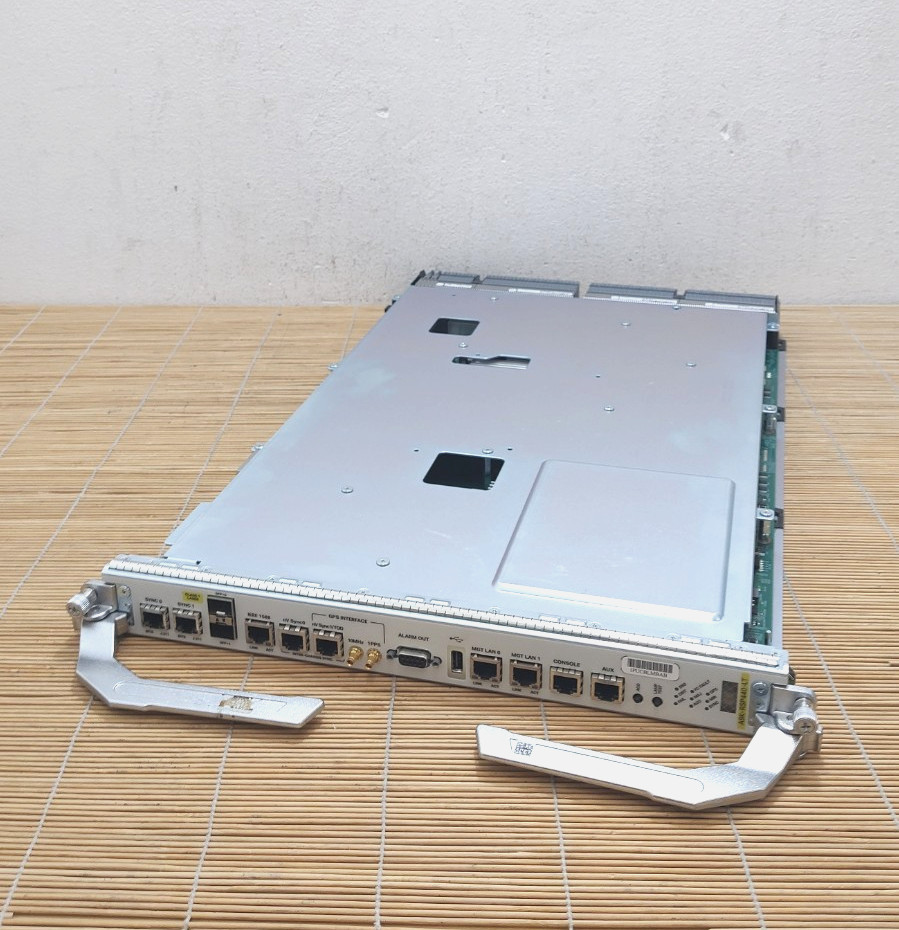

Cisco A9K-RSP440-LT
ASR9K RSP180G slot upgradeable 440G slot 8GB RAM
/DE/ Auf Anfrage ist die Gewährung eines 7-tägigen Zahlungszieles für gewerbliche EU-Käufer möglich (Kreditwürdigkeit vorausgesetzt).
/EN/ After a creditworthiness check EU-commercial purchaser can pay for this item within 7 days from date of invoice.
WIR GEBEN 3 JAHRE GARANTIE!
Dieses Angebot unterliegt der Differenzbesteuerung nach § 25a UStG., daher ist die Mehrwertsteuer im Preis inkludiert. Die Umsatzsteuer wird aber in der Rechnung nicht ausgewiesen und kann nicht in Abzug gebracht werden.
Wenn Sie auf einer Rechnung mit ausgewiesener Umsatzsteuer bestehen, informieren Sie uns bitte, damit wir ein entsprechendes -Angebot speziell für Sie erstellen können.
Das Angebot richtet sich ausschließlich an Personen außerhalb Österreichs und an gewerbliche Käufer in der EU, ist daher UmsatzsteuerFREI!
Privatpersonen, wenn die zufällig den Artikel ersteigert haben, erhalten eine Rechnung gemäß § 24 UStG 1994 (Differenzbesteuerung) - UmsatzsteuerFREI!
Bitte mailen Sie uns sofort nach Auktionsende/Kauf Ihre UID (Umsatzsteuer-Identifikationsnummer), damit wir für Sie eine Netto-Rechnung erstellen können. Sollten Sie als Unternehmer noch keine UID haben, beantragen Sie diese bitte beim Finanzamt oder kontaktieren Sie uns.
Product overview
The Cisco®ASR 9000 Series Route Switch Processor 440 (RSP 440) is a main system processor for Cisco ASR 9000 Series. It supports scalable, low-power, next-generation platforms, as well as required by today’s service provider networks.
Cisco ASR 9000 Series Routers offer one of the industry’s highest-capacity edge platforms, optimized for aggregation of dense 10 Gigabit Ethernet and 100 Gigabit Ethernet connections.
In addition to a higher capacity and scale, the Cisco ASR 9000 Series offers:
●Distributed forwarding and control planes for higher performance
●Network virtualization technology to provide excellent resilience and capacity expansion
●Modularized system components in both hardware and software, isolating failure and faults to subsystems and components
●Hardware-based signaling for the fabric, providing industry-leading resilience with zero packet loss on switchover
●Built-in redundancy in hardware components such as the Route Switch Processor (RSP), switch fabric, control-plane chassis control bus, and power supplies, thereby avoiding a single point of failure
●Advanced network timing technologies support for precise frequency and time distribution throughout the network
●Extensive selection of Time-Division Multiplexing (TDM) and Ethernet interfaces for flexible deployment in Multiservice Edge (MSE) and RAN aggregation environments with packet- and circuit-based transport
The Cisco ASR 9000 Series operates in a fully distributed fashion, meaning that all packet-forwarding decisions and actions take place on each individual line card. Cisco ASR 9000 Series line cards provide a flexible programming infrastructure with high-density Hierarchical Quality-of-Service (H-QoS) services, security, and integrated Synchronous Ethernet (SyncE). The distributed nature of the Cisco ASR 9000 Series also presents itself in the control plane. The distributed control plane facilitates scale in features such as offerirectional Forwarding Detection (BFD) and Ethernet Operations, Administration, and Management (EOAM), which improve resilience and provide comprehensive instrumentation.
Cisco ASR 9000 Series routers bring the time-tested and robust carrier-class capabilities of Cisco IOS®XR Software to the Carrier Ethernet edge. The operating system supports true software process modularity. The capabilities of Cisco IOS XR Software allow each process to run in separate protected memory, including each routing protocol along with multiple instances of control, data, and management planes supported. The software also supports distributed route processing.
Cisco ASR 9000 Series Route Switch Processor 440 features and benefits
The Cisco ASR 9000 Series RSP 440 is designed to deliver the high scalability, performance, and fast convergence required for today’s and tomorrow’s demanding video, cloud, and mobile services. It provides a superior set of features that deliver unprecedented scale, service flexibility, and high availability:
●Switch fabric architecture:
◦Active-active switch fabric architecture that provides scalability and high availability
◦Multistage low-latency nonblocking architecture
◦Service intelligence and traffic prioritization
●Superior network timing capabilities with support for:
◦Centralized Building Integrated Timing Supply (BITS) and DOCSIS®Timing Interface (DTI) timing reference systems
◦Precision Time Protocol (PTP), or IEEE 1588-2008, through dedicated 10/100-Mbps Ethernet port
◦offerirectional Time of Day (ToD) with 10-MHz and 1-pps interfaces
Route Switch Processor types
The Cisco ASR 9000 Route Switch Processor 440 is available in service-edge-optimized and packet-transport-optimized models. The service-edge-optimized version offers a higher amount of memory, which is essential for large-scale comprehensive service deployment. Both versions of the Cisco ASR 9000 Series RSP 440 support service-optimized as well as transport-optimized line cards. Different line cards can be mixed on the same chassis, providing maximum design flexibility.
Primary features and benefits of the Cisco ASR 9000 Series RSP 440 are listed in Table 1.
Table 1.Features and benefits of the Cisco ASR 9000 Series RSP 440
Feature
Benefit
Highly scalable fabric
●Designed to support high 1-, 10-, and 100-Gbps port densities●Provides built-in scalability for investment protection
Dual RSP to provide an active-active switch fabric
●Offers traffic load balancing simultaneously across both fabrics●Offers highly available system where loss of one RSP allows for unimpeded performance perslot
Distributed forwarding plane architecture
●Allows line cards to support independent forwarding for enhanced performance and scale
Control plane extension ports
●Allows the redundant pair of chassis to be combined into a single logical entity to provide advantages in management, scalability, and high availability
Memoryless switch fabric
●Provides transparent nonblocking low-latency packet forwarding
Virtual output queuing and arbitration
●Offers service intelligence with prioritization of traffic (unicast and multicast)●Provides efficient congestion management mechanism and avoids problems related to head-of-line blocking
Centralized arbiter
●Uses an efficient credit mechanism to help ensure transparent switchover with zero packet loss
IEEE 1588 support
●Delivers timing services over the packet network efficiently and reliably
Two independent clock source connections: BITS and Synchronization Supply Unit (SSU) DTI
●Offers redundant, centralized network synchronization support
Two 16-GB Solid State Drives (SSDs)
●Allows storing of core dumps and helps reduce the system Mean Time To Repair (MTTR)
Embedded Universal Series Bus (eUSB) memory port
●Provides access to USB flash memory devices for software image loading and recovery
Front-panel LEDs
●Provides visual indication of RSP status (active or standby), power management, and activity on compact flash and Hard Disk Drive (HDD)
Management ports
●Provides easy access to system console
