EXCLUDING POWER SUPPLY
EXCLUDING NETWORKCABLES
See photos for actual item!
Price is for 1 item.
AIR-CAP3602I-E-K9 Overview
AIR-CAP3602I-E-K9 is Cisco Aironet 3600 Series Access Point:
●4 x 4 MIMO technology with three spatial streams
●IEEE 802.11 a/b/g/n
●Dual-band, Integrated antennas and A regulatory domain
●Modular architecture design, MIMO equalization
●Cisco Clientlink 2.0, Cisco CleanAir technology
Designed to address the wireless connectivity needs of factories, large office and other indoor industrial environment, AIR-CAP3602I-E-K9 is the enterprise class, three-spatial-stream access point with Dual-band, controller-based 802.11a/g/n, internal antennas and A regulatory domain. Cisco Aironet 3600 series delivers industry leading performance for secure and reliable wireless connection with up to 450 Mpbs or 1.3 Gbps with IEEE802.11ac module over great coverage to ensure the robust mobility experience.
Control-based Cisco Aironet 3600 series access point, a component of the Cisco Unified Wireless Network, enables the capability to support voice, location services, guest access, and advanced security and scales to up to 18,000 access points with full Layer 3 mobility across central or remote locations. Modular architecture enables flexible add-on options, which include Wireless Security Module, IEEE802.11ac module or the Cisco Universal Small Cell 5310 Module.
LED INDICATORS Status,Y CERTIFICATION UL, CAN/CSA, IEC, EN, FCC, ARIB-STD, EMI, ICES, VCCI INTERNAL No MAXIMUM DATA TRANSFER RATE 1000 Mbit/s MIMO Yes 2.4 GHZ Yes 5 GHZ Yes ETHERNET LAN DATA RATES 10,100,1000 Mbit/s FREQUENCY BAND 2.4, 5 GHz NETWORKING STANDARDS IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u CABLING TECHNOLOGY 10/100/100Base-T(X) CHANNELS QUANTITY 13 channels RECEIVER SENSITIVITY 802.11b - 101 dBm @ 1 Mb/s
802.11b - 98 dBm @ 2 Mb/s
802.11b - 92 dBm @ 5.5 Mb/s
802.11b - 89 dBm @ 11 Mb/s
802.11g - 91 dBm @ 6 Mb/s
802.11g - 91 dBm @ 9 Mb/s
802.11g - 91 dBm @ 12 Mb/s
802.11g - 90 dBm @ 18 Mb/s
8 SECURITY ALGORITHMS EAP-TLS,EAP-TTLS,PEAP,TKIP,WPA-AES WEB-BASED MANAGEMENT No INTERFACE RJ-45 ETHERNET LAN (RJ-45) PORTS QUANTITY 1 POWER CONSUMPTION (TYPICAL) 12.95 W POWER REQUIREMENTS 100 - 240V, 50/60Hz OUTPUT POWER DESCRIPTION 44 - 57V DC ANTENNAS QUANTITY 4 ANTENNA GAIN LEVEL (MAX) 5 dBi FLASH MEMORY 32 MB INTERNAL MEMORY 128 MB OPERATING RELATIVE HUMIDITY (H-H) 10 - 90% OPERATING TEMPERATURE (T-T) 0 - 40 °C STORAGE TEMPERATURE (T-T) -30 - 70 °C DIMENSIONS (WXDXH) 221 x 221 x 54 mm WEIGHT 1.13 kg FREQUENCY RANGE 2412 - 2472 MHz WIRELESS TECHNOLOGY 802.11 a/b/g/n TRANSMIT POWER RANGE 2 - 23 dBmW SUPPORTED DATA TRANSFER RATES Mbit/s OPERATING TEMPERATURE (T-T) 32 - 104 °F NETWORKING FEATURES Gigabit Ethernet COMPLIANCE INDUSTRY STANDARDS IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11a/b/g/n

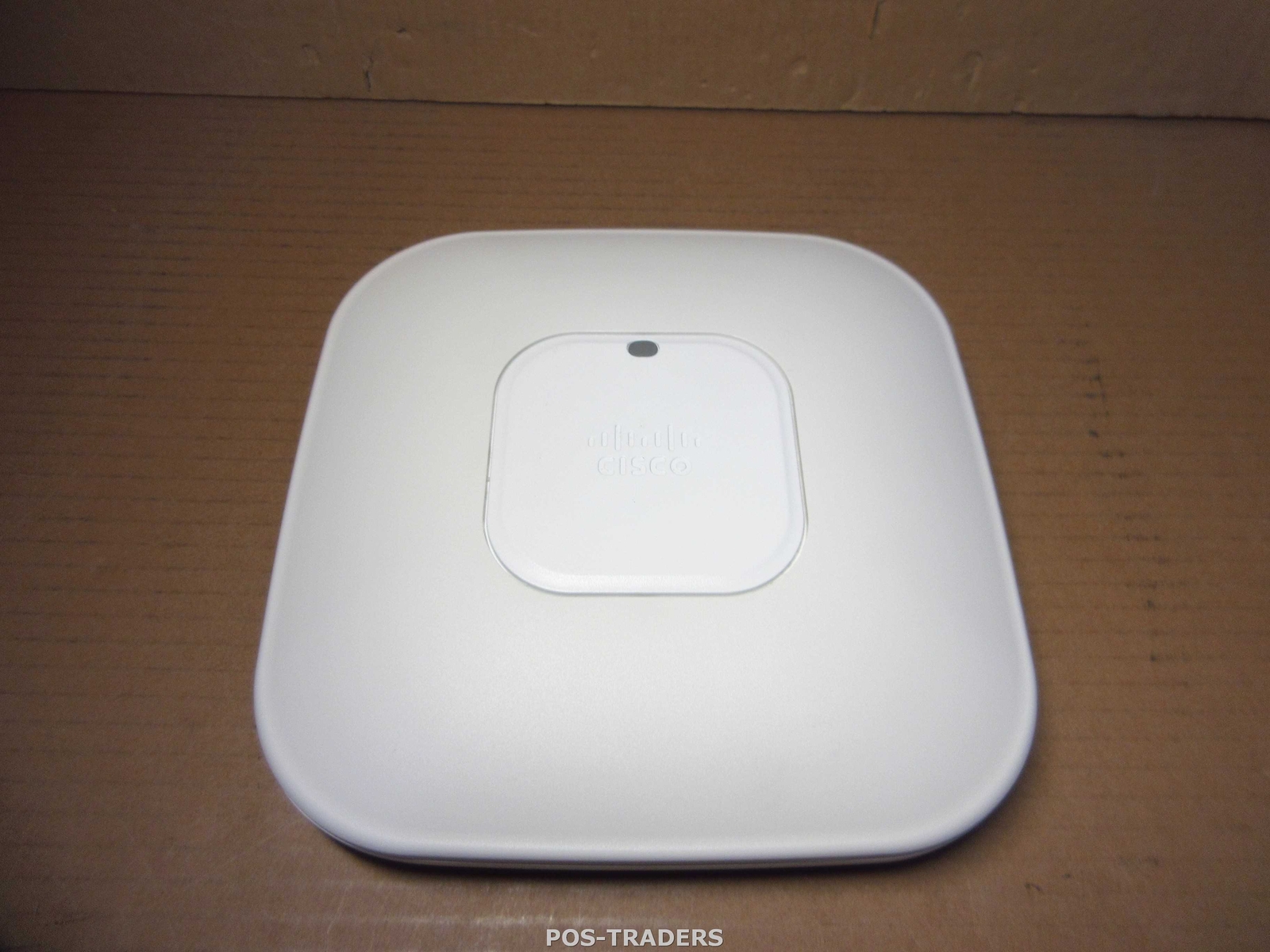

Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise
