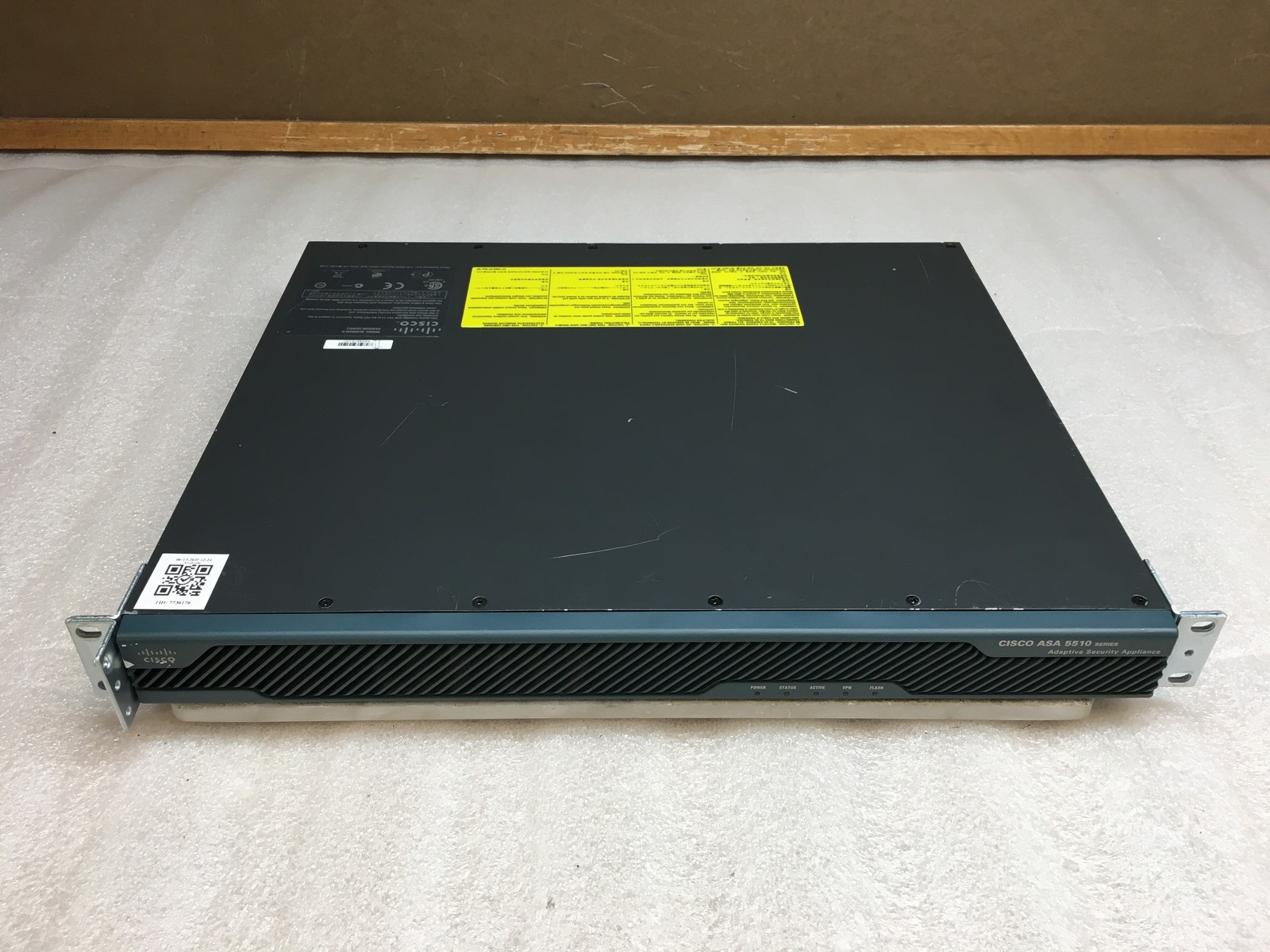

Listing Grid template example Product Photo Description Cisco ASA 5510 Series ASA5510 V07 Adaptive Security Appliance Firewall Cisco ASA 5510 Series ASA5510 V07 Adaptive Security Appliance Firewall

The Cisco ASA 5510 Series Adaptive Security Appliance offers robust firewall protection designed for small to medium-sized networks. It combines advanced security features with high performance to safeguard your network from evolving threats.

Specifications

• Model Number: ASA5510 V07(V03)
• Firewall Throughput: Up to 150 Mbps
• VPN Throughput: Up to 100 Mbps
• Concurrent VPN Peers: Up to 250
• Interfaces: 8 x 10/100 Fast Ethernet ports
• Modular Design with Expansion Slots
• Supports Stateful Packet Inspection
• Integrated Intrusion Prevention System (IPS)
• Supports Multiple Security Contexts
• Flexible VLAN and Routing Support

Key Features

• Comprehensive firewall protection with stateful inspection to safeguard your network
• Advanced VPN support for secure remote access and site-to-site connectivity
• Integrated Intrusion Prevention System (IPS) enhances threat detection
• Scalable performance supports growing network demands
• Easy to deploy with versatile interface options and modular design

Important Notes

• Minor scratches, scuffs, and scrapes from previous use and storage

Included

• Rack Ears

Not Included

• Power adapter/cable
• Console cable
• User manual
• Mounting hardware other than rack sh ver




  Cisco Adaptive Security Appliance Software Version 9.1(1)

  Device Manager Version 7.1(6)




  Compiled on Wed 28-Nov-12 10:38 by builders

  System image file is "disk0:/asa911-k8.bin"

  Config file at boot was up 27 secs




  Hardware:ASA5520, 2048 MB RAM, CPU Pentium 4 Celeron 2000 MHz,

  Internal ATA Compact Flash, 256MB

  BIOS Flash M50FW080 @ 0xfff00000, 1024KB




  Encryption hardware device : Cisco ASA-55xx on-board accelerator (revision 0x0)

  Boot microcode: CN1000-MC-BOOT-2.00

  SSL/IKE microcode: CNLite-MC-SSLm-PLUS-2.03

  IPSec microcode: CNlite-MC-IPSECm-MAIN-2.08

  Number of accelerators: 1




  0: Ext: GigabitEthernet0/0: address is 0022.553e.fbe6, irq 9

  1: Ext: GigabitEthernet0/1: address is 0022.553e.fbe7, irq 9

  2: Ext: GigabitEthernet0/2: address is 0022.553e.fbe8, irq 9

  3: Ext: GigabitEthernet0/3: address is 0022.553e.fbe9, irq 9

  4: Ext: Management0/0: address is 0022.553e.fbea, irq 11

  5: Int: Internal-Data0/0: address is 0000.0001.0002, irq 11

  6: Int: Internal-Control0/0 : address is 0000.0001.0001, irq 5




  Licensed features for this platform:

  Maximum Physical Interfaces: Unlimitedperpetual

  Maximum VLANs: 150perpetual

  Inside Hosts: Unlimitedperpetual

  Failover: Enabledperpetual

  Security Contexts: 2perpetual

  GTP/GPRS: Disabledperpetual

  AnyConnect Premium Peers: 10perpetual

  AnyConnect Essentials: 750perpetual

  Other VPN Peers: 750perpetual

  Total VPN Peers: 750perpetual

  Shared License: Disabledperpetual

  AnyConnect for Mobile: Disabledperpetual

  AnyConnect for Cisco VPN Phone: Disabledperpetual

  Advanced Endpoint Assessment: Disabledperpetual

  UC Phone Proxy Sessions: 24perpetual

  Total UC Proxy Sessions: 24perpetual

  Botnet Traffic Filter: Disabledperpetual

  Intercompany Media Engine: Disabledperpetual

  Cluster: Disabledperpetual




  This platform has an ASA 5520 VPN Plus license.




  Serial Number:

  Running Permanent Activation Key: 0x2917cc40 0xc0bbb2a3 0x65c1f584 0xd6e470fc 0xce36dbb7

  Configuration register is 0x41

  Configuration has not been modified since last system sh inv

  Name: "Chassis", DESCR: "ASA 5520 Adaptive Security Appliance"

  PID: ASA5520, VID: V03, SN:




  Name: "module 1", DESCR: "ASA 5500 Series Security Services Module-10"

  PID: ASA-SSM-10, VID: V01, SN:




  Name: "power supply", DESCR: "ASA/IPS 180W AC Power Supply"

  PID: ASA-180W-PWR-AC, VID: V02, SN: sh memory

  Free memory:1745840096 bytes (81%)

  Used memory:401643552 bytes memory:2147483648 bytes sh interface

  Interface GigabitEthernet0/0 "", is administratively down, line protocol is down

  Hardware is i82546GB rev03, BW 1000 Mbps, DLY 10 usec

  Auto-Duplex, Auto-Speed

  Input flow control is unsupported, output flow control is off

  Available but not configured via nameif

  MAC address 0022.553e.fbe6, MTU not set

  IP address unassigned

  0 packets input, 0 bytes, 0 no buffer

  Received 0 broadcasts, 0 runts, 0 giants

  0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort

  0 pause input, 0 resume input

  0 L2 decode drops

  0 packets output, 0 bytes, 0 underruns

  0 pause output, 0 resume output

  0 output errors, 0 collisions, 0 interface resets

  0 late collisions, 0 deferred

  0 input reset drops, 0 output reset drops, 0 tx hangs




  Specifications Functional Condition:
  F3 - Key Functions Working

  Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

  Cosmetic Condition:
  C4 - Used Good

  Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

  Data Sanitization:
  S3 - Data Clear

  Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22


  Mpn
  ASA5510 V07(V03) Function Tests Powers On
  Passed Physical Inspection
  Passed Functions
