Feature

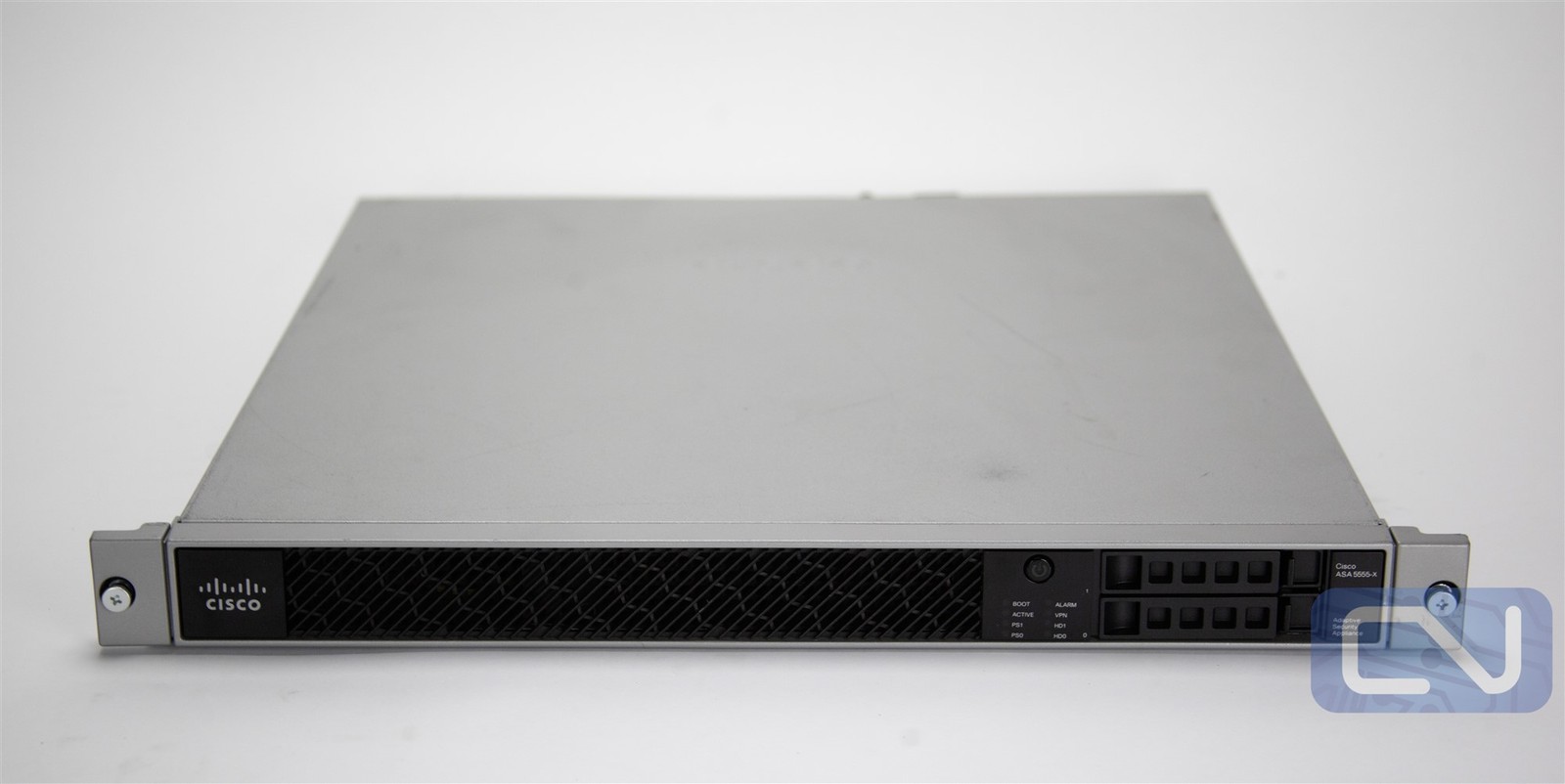

Cisco ASA
5555-X

Stateful Inspection Throughput (Maximum[2])

4 Gbps

Stateful Inspection Throughput (Multiprotocol[3])

2 Gbps

IPS Throughput[4]

1.3 Gbps
(extra hardware not required)

Next-Generation Throughput[5](Multiprotocol)

1.4 Gbps

3DES/AES VPN Throughput[6]

700 Mbps

Users/Nodes

Unlimited

IPsec VPN Peers

5000

Premium AnyConnect VPN Peers

2/5000

Concurrent Connections

1,000,000

New Connections/
Second

50,000

Virtual Interfaces (VLANs)

500

High Availability

Active/Active and Active/Standby

Expansion Slot

1 interface card

Number of User-Accessible Flash Slots

0

USB 2.0 Ports

22

Integrated I/O

8 GE copper

Expansion I/O

6 GE copper or 6GE SFP

Dedicated Management Port

Yes (1 GE)

Serial Ports

1 RJ-45

Solid State Drive

2 slots, RAID 1

120 GB MLC SED

Memory

16 GB

Minimum System Flash

8 GB

System Bus

Multibus architecture

Environmental Operating Ranges

Operating

Temperature

23 to 104°F
(-5 to 40°C)

Relative Humidity

90 percent

Altitude

Designed and tested for 0 to 10,000 ft (3050m)

Shock

50G, 2 m/sec

Vibration

0.41 Grms (3 to 500Hz) random input

Acoustic Noise

67.9 dBa max

Temperature

-13 to 158°F
(-25to 70°C)

Relative Humidity

10 to 90 percent

Altitude

Designed and tested for 0 to 15,000 ft (4572m)

Shock

70G, 4.22 m/sec

Vibration

1.12 Grms (3 to 500Hz) random input

AC Range Line Voltage

100 to 240 VAC

AC Normal Line Voltage

100 to 240 VAC

AC Current

5A, 100 to 120V

2.5A, 200 to 240V

AC Frequency

50/60 Hz

Dual Power Supplies

Only One Power Supplyinstalled, has expansion slot for second unit option

DC Domestic Line Voltage

-40.5 to 56 VDC
(-48 VDC nominal)

DC International Line Voltage

-55 to -72 VDC
(-60 VDC nominal)

DC Current

15A (maximum input)

Steady State

90W

Maximum Peak

134W

Maximum Heat Dissipation

458 BTU/hr

Form Factor

1 RU, 19-in. rack-mountable

Dimensions
(HxW x D)

1.67 x 16.7 x 19.1 in. (4.24 x 42.9 x 48.4 cm)

Weight (with Power Supply)

16.82 lb (7.63 kg) with single power supply

18.86 lb (8.61 kg) with dual power supply

Safety

IEC 60950-1: 2005, 2ndEdition
EN 60950-1:2006+A11: 2009
UL 60950-1:2007, 2ndEdition;
CSA C22.2 No. 60950-1-07, 2ndEdition

Electromagnetic Compatibility (EMC)

CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009;EN61000-3-3 2008;
FCC:CFR 47, Part 15 Subpart B Class A 2010,ANSI C63.4 2009;
ICES-003 ISSUE 4 FEBRUARY.2004;
VCCI:V-3/2011.04;
C-TICK:AS/NZS CISPR 22,2009
KC:KN22 & KN24

Industry Certifications

In process

Condition

Used
