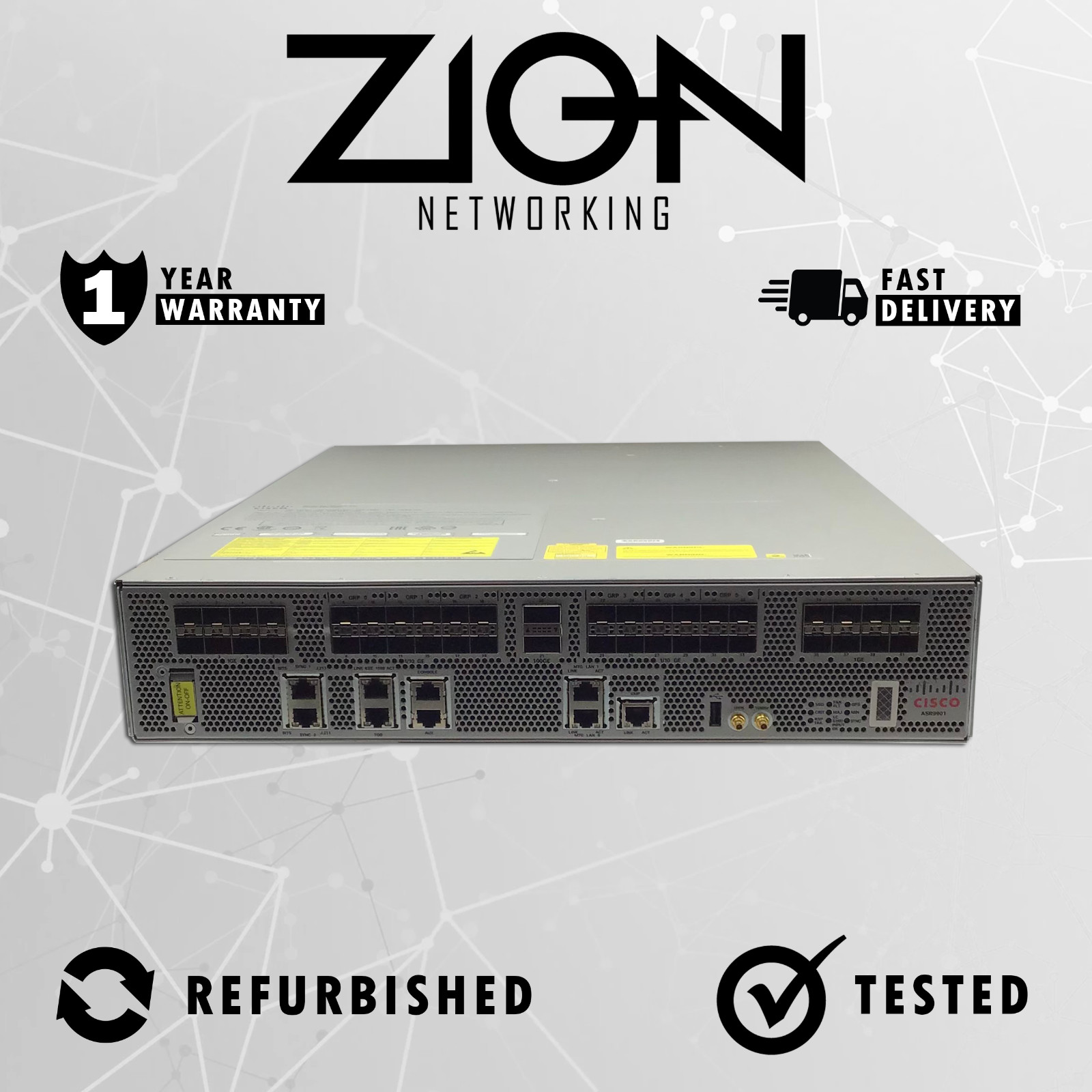

Cisco ASR-9901-120G Router 16x1G 24x1/10G 2x100G ports Dual AC PowerASR-9901-120GOverview

TheCisco ASR 9901 Routeris a compact yet powerful Provider Edge (PE) router, part of theCisco ASR 9000 Series. Let’s explore its key features:

1. High Capacity: The ASR 9901 delivers an impressive456 Gbpsof nonblocking, full-duplex fabric capacity in aTwo-Rack-Unit (2RU)form factor.
2. Integrated Ports:
   • 16x 1 Gigabit Ethernet (1G) ports
   • 24x Dual-Rate 1/10 Gigabit Ethernet (1/10G) ports
   • 2x 100 Gigabit Ethernet (100G) ports
3. Versatility: You can mix and match various interface types (1G, 10G, 40G, and 100G) across the ASR 9901 chassis.
4. Cisco IOS XR Software: It runs on the same Cisco IOS XR software image as other routers in the ASR 9000 Series, allowing standardization on the same operating system.
5. Applications:
   • Layer 2 and Layer 3 aggregation
   • Data Center Interconnect (DCI)
   • Satellite Network Virtualization (nV) System mode
6. MAC-SEC Encryption: The ASR 9901 supports industry-leading MAC-SEC encryption on all its port speeds.

This router sets a new standard for service density and scalability, making it ideal for large-scale aggregation and carrier Ethernet transport networks.Its versatile capabilities reduce both capital and operating expenses, while the Cisco IOS XR 64-bit operating system ensures reliability and high availability. If you’re seeking robust networking solutions

Specifications

ategory

Part Number or Specification

Chassis

ASR 9901

Integrated interfaces

16x1 GE, 24x 1/10 GE, 2x100 GE

Redundancy

Power supply and Fan redundancy

Power supply part class="pChart_bodyCMT" style="box-sizing: border-box; margin: 0px 0px 1.5rem; padding: 0px;">Physical specifications

●Height: 3.43 inches (8.7 cm)●Width: 17.32 inches (44 cm)●Depth: 23.62 inches (60 cm)●Weight of chassis: 47.62 lbs (21.6 kg)●Weight of fully configured (including 2 x power modules & 3x Fan trays) chassis 55.97 lbs (25.4 kg)

Power inputs

●Worldwide ranging AC (90-265V; 50-60 Hz)●Worldwide ranging DC (-40V to -72V)

Power consumption

●850 watts typical, 1100 watts maximum

Environmental conditions

●Operating temperature: 41° to 104°F (5° to 40°C)●Storage temperature: -40 to 167°F (-40 to 75°C)●Relative humidity: 10 to 85%, noncondensing●Regulatory compliance

Environmental Specifications

Operating temperature (nominal)

41 to 104°F (5 to 40°C)

Operating temperature
(short-term)

23 to 131°F (-5 to 55°C)

Operating humidity (nominal) (relative humidity)

10 to 85%

Operating humidity
(short-term)

5 to 90%
Note:Not to exceed 0.024 kg water or dry air

Storage temperature

-40 to 158°F (-40 to 70°C)

Storage (relative humidity)

5 to 95%
Note:Not to exceed 0.024 kg water or dry air

Operating altitude

0 – 4000 m

Air flow

Front to Back

Compliance

Network Equipment Building Standards (NEBS)

Cisco ASR 9901 is designed to meet:

●SR-3580: NEBS Criteria Levels (Level 3)●GR-1089-CORE: NEBS EMC and Safety●GR-63-CORE: NEBS Physical Protection●VZ.TPR.9205: Verizon TEEER

ETSI standards

Cisco ASR 9901 is designed to meet (qualification in progress):

●EN300 386: Telecommunications Network Equipment (EMC)●ETSI 300 019 Storage Class 1.1●ETSI 300 019 Transportation Class 2.3●ETSI 300 019 Stationary Use Class 3.1●EN55022: Information Technology Equipment (Emissions)●EN55024: Information Technology Equipment (Immunity)●EN50082-1/EN-61000-6-1: Generic Immunity Standard

EMC standards

Cisco ASR 9901 is designed to meet:

●FCC Class A●ICES 003 Class A●AS/NZS 3548 Class A●CISPR 22 (EN55022) Class A●VCCI Class A●BSMI Class A●IEC/EN 61000-3-2: Power Line Harmonics●IEC/EN 61000-3-3: Voltage Fluctuations and Flicker●EN 50121-4: Railway EMC

Immunity

Cisco ASR 9901 is designed to meet:

●IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)●IEC/EN-61000-4-3: Radiated Immunity (10V/m)●IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)●IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)●IEC/EN-61000-4-5: Signal Ports (1kV)●IEC/EN-61000-4-5: Surge DC Port (1kV)●IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)●IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)●IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations●EN 50121-4: Railway EMC

Safety

Cisco ASR 9901 is designed to meet:

●UL/CSA/IEC/EN 60950-1●IEC/EN 60825 Laser Safety●ACA TS001●AS/NZS 60950●FDA: Code of Federal Regulations Laser Safety
