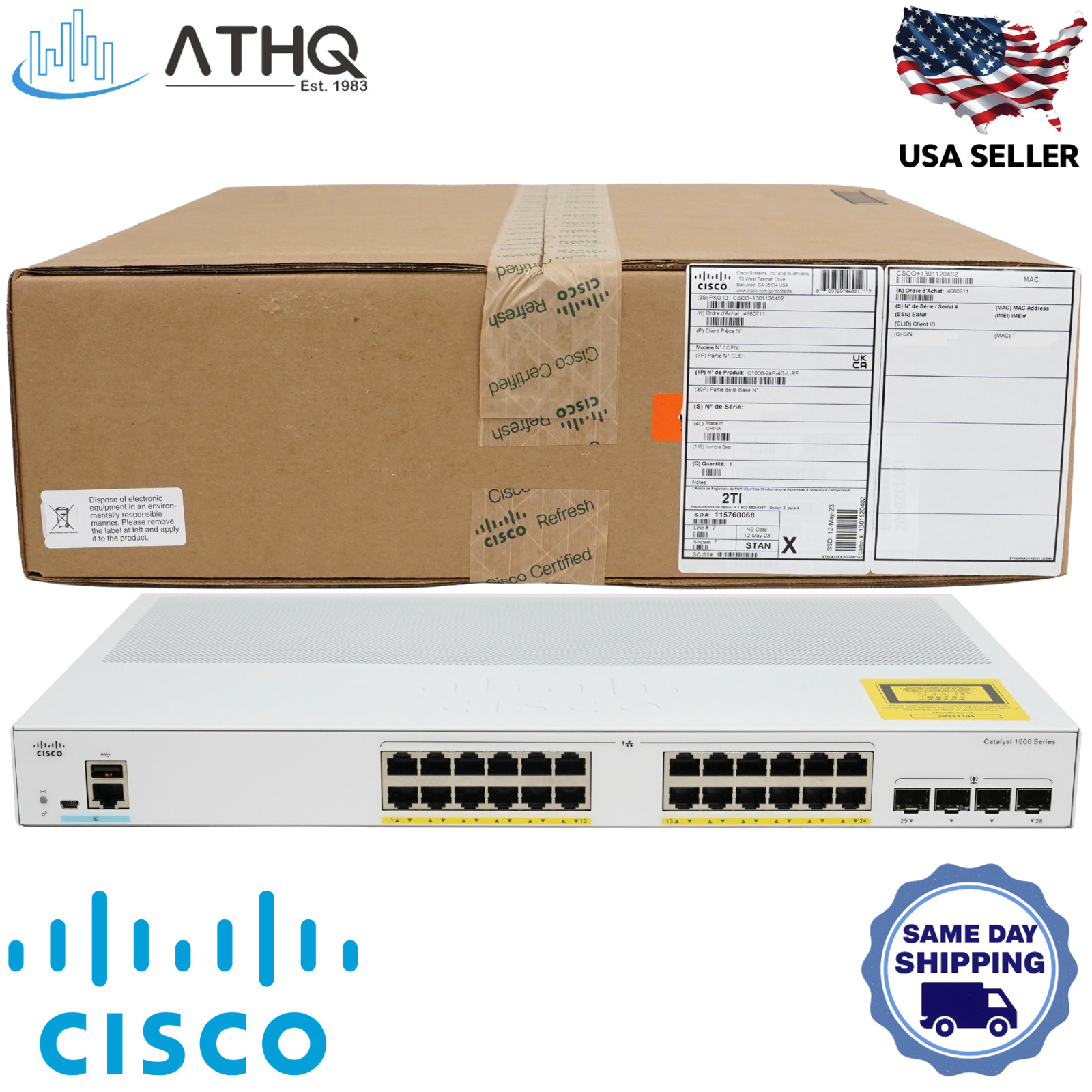

Cisco Catalyst C1000-24P-4G-L - 24-Port Gigabit PoE+ Managed Switch, 195W PoE Budget, 4x 1G SFP Uplinks - Cisco Refresh

The Cisco Catalyst C1000-24P-4G-L is an enterprise-class Layer 2 managed Gigabit Ethernet switch built for small businesses and branch offices that need reliable wired connectivity with Power over Ethernet. It provides 24 x 10/100/1000 PoE+ ports backed by a 195W PoE power budget, plus 4 x 1G SFP fiber uplinks for high-speed backhaul. Running Cisco IOS, it delivers proven Layer 2 features — VLANs, QoS, and 802.1X security — managed through an intuitive on-box web UI or command-line interface (CLI). With a fanless design and 56 Gbps switching bandwidth, it powers IP phones, wireless access points, and IP cameras from a single rack-mountable unit.

Cisco Catalyst C1000-24P-4G-L - Key Features & Benefits

• 24 Gigabit PoE+ Ports: 24 x 10/100/1000 RJ45 PoE+ ports deliver line-rate wired connectivity for desktops, IP phones, access points, and cameras — any port can power a PoE or PoE+ device from the switch's shared 195W budget.
• 195W PoE Budget with Perpetual PoE: A 195W power budget supports IEEE 802.3af PoE and 802.3at PoE+ (up to 30W per port); Perpetual PoE keeps powered devices online during a switch reload.
• 4 x 1G SFP Fiber Uplinks: Four dedicated 1 Gigabit SFP slots enable fiber backhaul to a core switch or between buildings for fast, long-distance links.
• Cisco IOS Layer 2 Management: Runs Cisco IOS with proven Layer 2 features — VLANs, QoS, 802.1X, SPAN, and BPDU Guard — configurable through an on-box web UI or command-line interface (CLI).
• Fanless, Enterprise-Grade Performance: 56 Gbps switching bandwidth and a 41.67 Mpps forwarding rate in a fanless 1U chassis that runs quietly — ideal for offices and workspaces.

Cisco Catalyst C1000-24P-4G-L - Technical Specifications

• Part Number: C1000-24P-4G-L
• Product Type: Catalyst 1000 Series Layer 2 Managed Gigabit Ethernet Switch
• Ethernet Ports: 24 × 10/100/1000 PoE+ (RJ45)
• Uplink Ports: 4 × 1G SFP
• PoE Standard: IEEE 802.3af PoE & 802.3at PoE+ (up to 30W per port)
• PoE Power Budget: 195W with Perpetual PoE
• Switching Bandwidth: 56 Gbps • Forwarding Rate: 41.67 Mpps (64-byte packets)
• MAC Address Table: 16,000 entries • Active VLANs: 256
• Jumbo Frame Support: Up to 10,240 bytes
• Management: Cisco IOS CLI & On-Box Web UI
• Console / Local Ports: 1 × RJ-45 Console • 1 × USB Type-A
• Input Voltage: 110–220V AC (auto-ranging), 50–60 Hz
• Cooling: Fanless Design
• Dimensions: 17.48" × 11.76" × 1.73" (W×D×H) • Weight: 7.78 lbs (3.53 kg)
• Condition: Cisco Refresh

Cisco Catalyst C1000-24P-4G-L - Frequently Asked Questions (FAQ)

• Does this switch require a separate license or subscription?
  No. The C1000-24P-4G-L runs Cisco IOS with its Layer 2 feature set built in. There is no recurring subscription or add-on license — it is managed directly through the on-box web UI or command-line interface (CLI) out of the box.
• What is the difference between the C1000-24P, 24FP, and 24T models?
  All three are 24-port Catalyst 1000 switches. The -24P-4G-L offers a 195W PoE+ budget, the -24FP-4G-L offers a full 370W PoE+ budget, and the -24T-4G-L is a data-only model with no PoE.
• How many PoE devices can the 195W budget power?
  The 195W budget is allocated dynamically across all 24 ports by intelligent power management. The number of devices it can power depends on each endpoint's draw — lower-wattage devices such as IP phones leave room for many connections, while full 30W PoE+ endpoints consume the budget faster.
